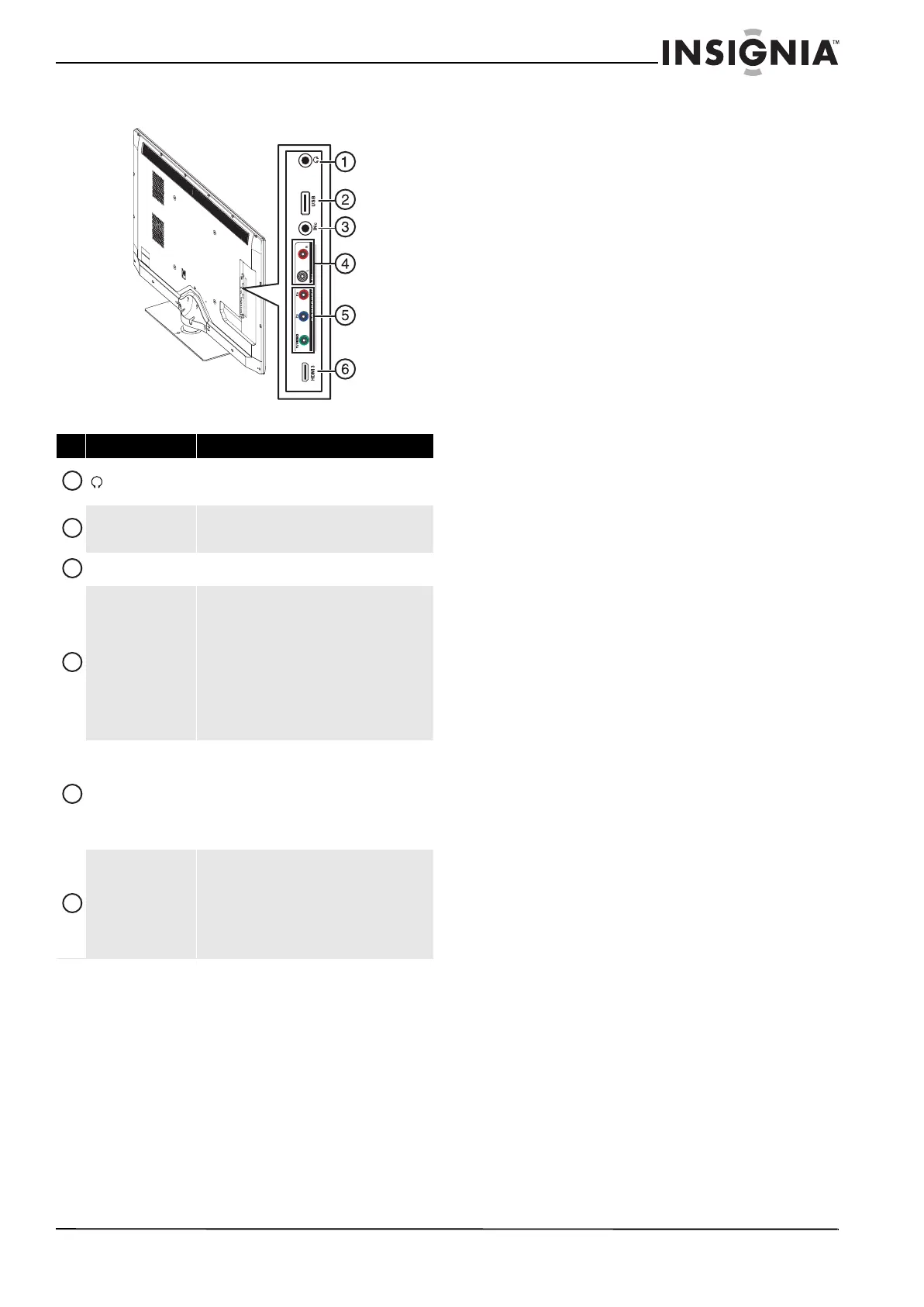

Side
# Item Description
(headphone)
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 18.
USB
Connect a USB flash drive to this jack. For more
information, see “Connecting a USB flash drive” on
page 17.
INc
Connect a soundbar to this jack. For more information,
see “Connecting a soundbar” on page 18.
COMPONENT/AV
L/R audio
The component video jacks (Y-VIDEO/PB/PR) share
these audio jacks with the composite video jack
(Y-VIDEO).
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 11 or 14.
OR
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)“ on page 12 or 15.
COMPONENT
Y/P
B/PR
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 11 or 14.
OR
Connect the video for a composite video device to the
Y-VIDEO jack. For more information, see “Using
composite video (good)” on page 12 or 15.
HDMI3
Connect an HDMI device to this jack. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device.
For more information, see “Using HDMI (best)” on
pages 10, 13, or 17.
When connecting a DVI device using an HDMI-DVI
adapter, connect the device to the HDMI1 jack.
1
2
3
4
5
6
