NS-55E790A12 Insignia 55" LED-LCD HDTV, 120 HZ 1080p
www.insigniaproducts.com

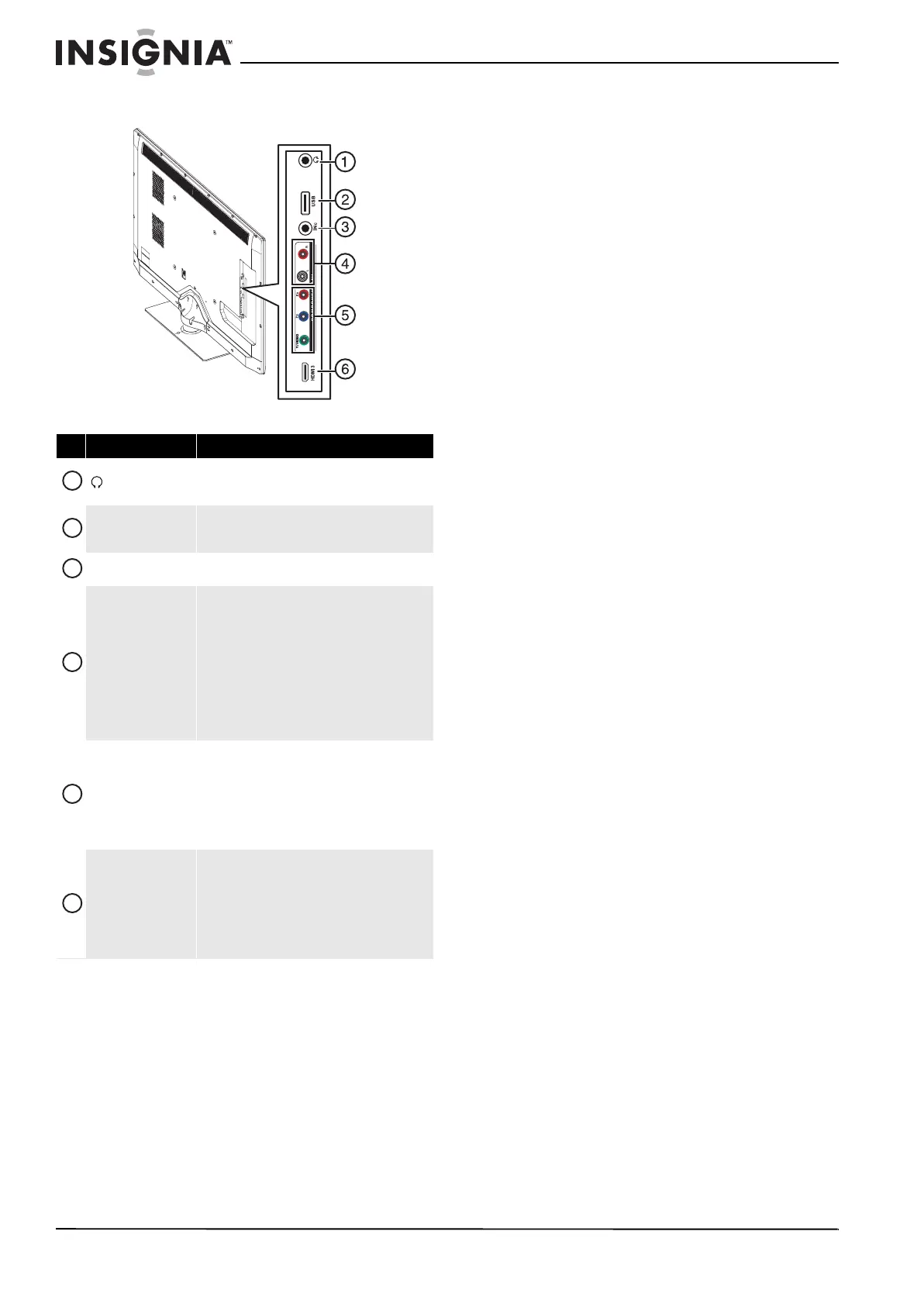

Side
# Item Description
(headphone)
Connect headphones to this jack. For more
information, see “Connecting headphones” on
page 20.
USB
Connect a USB flash drive to this jack. For more
information, see “Connecting a USB flash drive” on
page 19.
INc
Connect a soundbar to this jack. For more information,
see “Connecting a soundbar” on page 20.
COMPONENT/AV
L/R audio
The component video jacks (Y-VIDEO/PB/PR) share
these audio jacks with the composite video jack
(Y-VIDEO).
Connect the audio for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 13 or 16.
OR
Connect the audio for a composite video device to
these jacks. For more information, see “Using
composite video (good)“ on page 14 or 17.
COMPONENT
Y/P
B/PR
Connect the video for a component video device to
these jacks. For more information, see “Using
component video (better)” on pages 13 or 16.
OR
Connect the video for a composite video device to the
Y-VIDEO jack. For more information, see “Using
composite video (good)” on page 14 or 17.
HDMI3
Connect an HDMI device to this jack. An HDMI cable
carries both video and sound. You do not need to make
an audio connection for an HDMI device.
For more information, see “Using HDMI (best)” on
pages 12, 15, or 19.
When connecting a DVI device using an HDMI-DVI
adapter, connect the device to the HDMI1 jack.
1
2
3
4
5
6
