Insignia NS-HTVMM1703-C User Manual

15
www.insigniaproducts.com
Full Motion Mount for TVs 47" - 80"

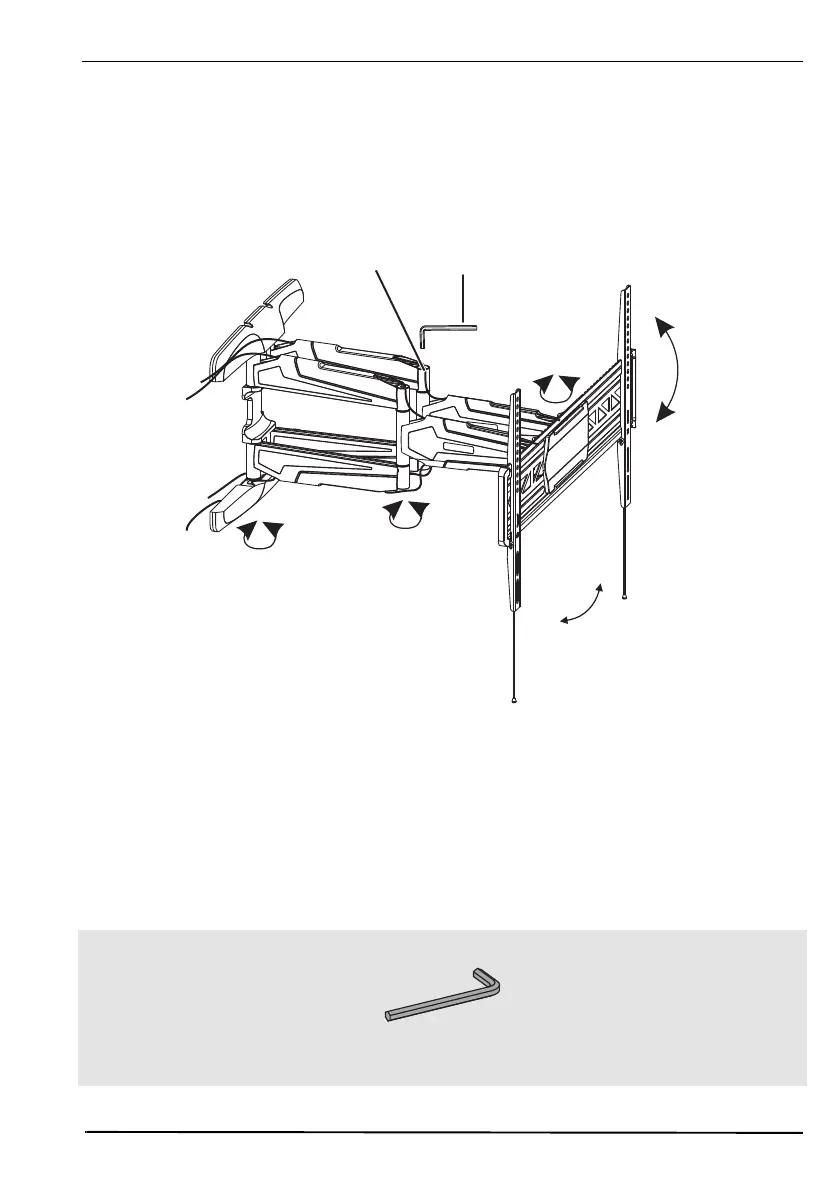

STEP 9 - Adjust the mount angle
1 To adjust the arm tension (to make the arm easier or harder to move), loosen or tighten the tension
screw with an Allen wrench.
2 To rotate the TV left or right, hold the sides of the TV, then push one side while pulling the other side.
3 To tilt of the TV up or down, hold the top and bottom of the TV, then tilt the TV forward or backward.
You’l l nee d
Tension
screw
Allen
wrench
± 90°
± 180°
-2° ~ 10°
±
3
°
Allen wrench
NS-HTVMM1703-C_16-0801_MAN_V6_EN.fm Page 15 Tuesday, October 11, 2016 10:26 AM
