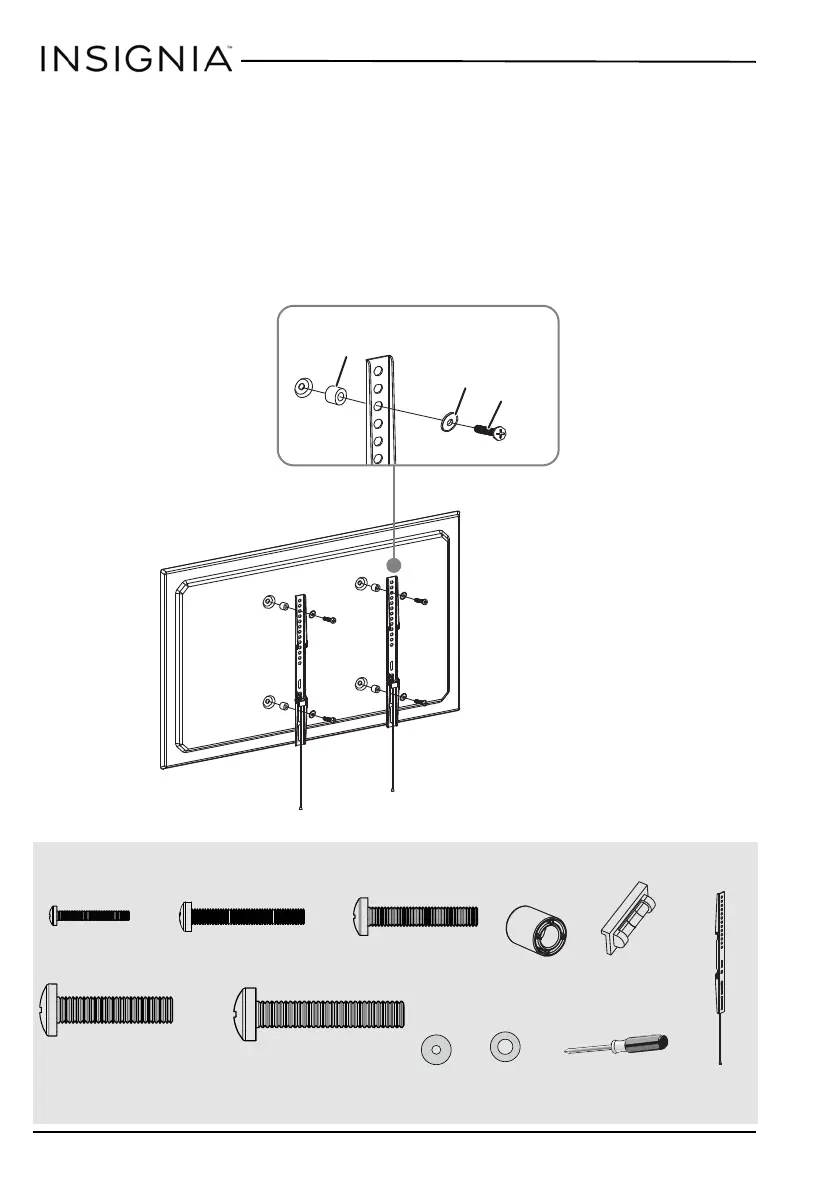

STEP 3 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs
1 Place spacers (A10) over the holes on the back of the TV.
2 Align the left and right TV brackets with the screw holes on the back of the TV. Make sure that the
brackets are level.
3 Place washers (A11 or A12) over the holes in the TV brackets. Insert screws (A2, A4, A6, A8, or A9)
through the washers, TV brackets, and spacers.
4 Tighten the screws until they are snug against the TV brackets. Do not over tighten.
You’ll need
A11
or A12
A2, A4,
A6, A8 or
A9
TV
brackets
A10
A2 (4)
A4 (4)
Phillips screwdriver
Screws
Washers
Spacers
TV brackets
(2)
A6 (4)
A8 (4)
or
or
A10 (4)
A11 (4) A12 (4)
or
or
or
Magnetic
removable bubble
level
A9 (4)
or
