Full Motion Mount for TVs 47" - 80"
Installation instructions
STEP 1 - Determine whether your TV has a flat back or an
irregular or obstructed back
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from
damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that came with your
TV for instructions.
3 Lay the TV brackets, oriented vertically, on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.

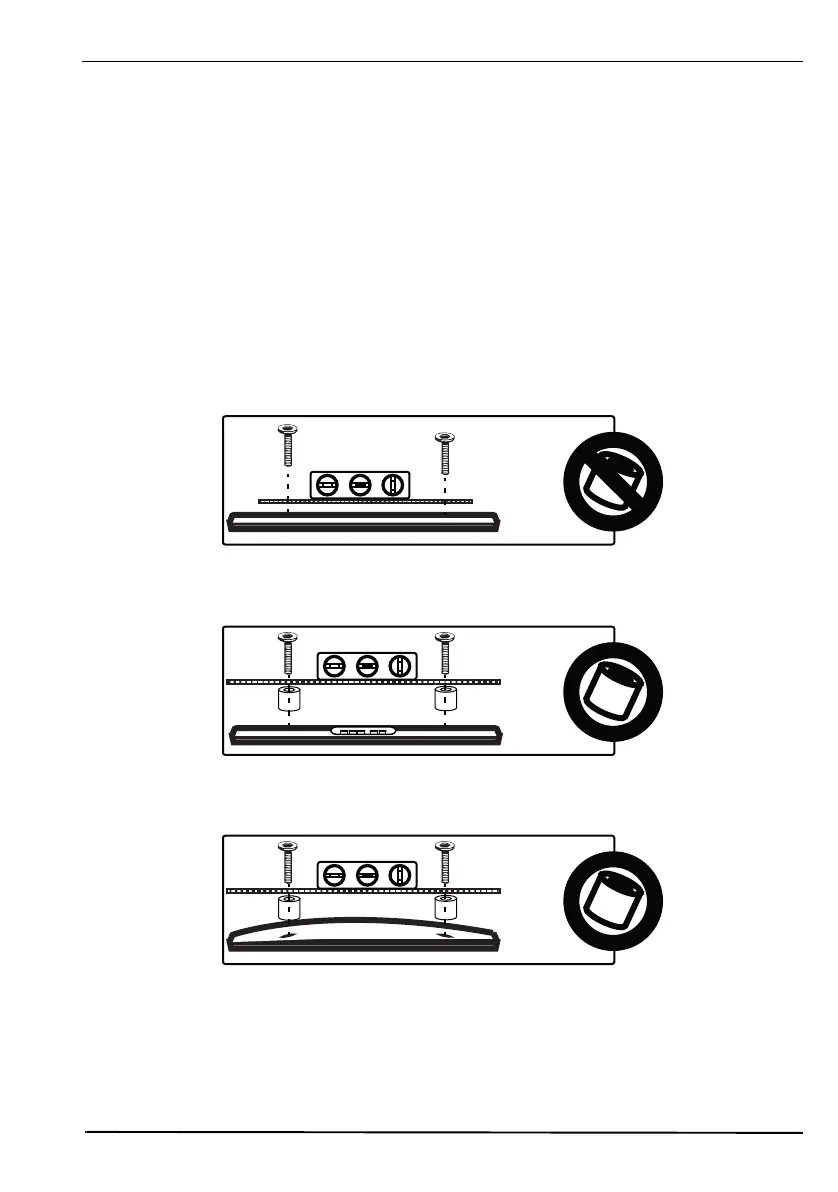

5 Identify which type of back your TV has:
• Flat back: The brackets lay flush against the back of your TV and do not block any jacks. You do not need
spacers when assembling the wall mount.
• Obstructed back: The brackets block one or more of the jacks on the back of your TV. You will need
spacers when assembling the wall mount.
• Irregularly-shaped back: There is a gap between a bracket and some part of the back of your TV. You
will need spacers when assembling the wall mount.
6 Remove the TV brackets.
