13
9.9 and 11.5 cu. ft. Top Mount Refrigerator
www.insigniaproducts.com
6 Remove the screw covers from the bottom left side of the refrigerator
and use them to cover the screw holes on the bottom right side of the
refrigerator.
7 Attach the bottom left hinge with the screws you removed from the
bottom right hinge.

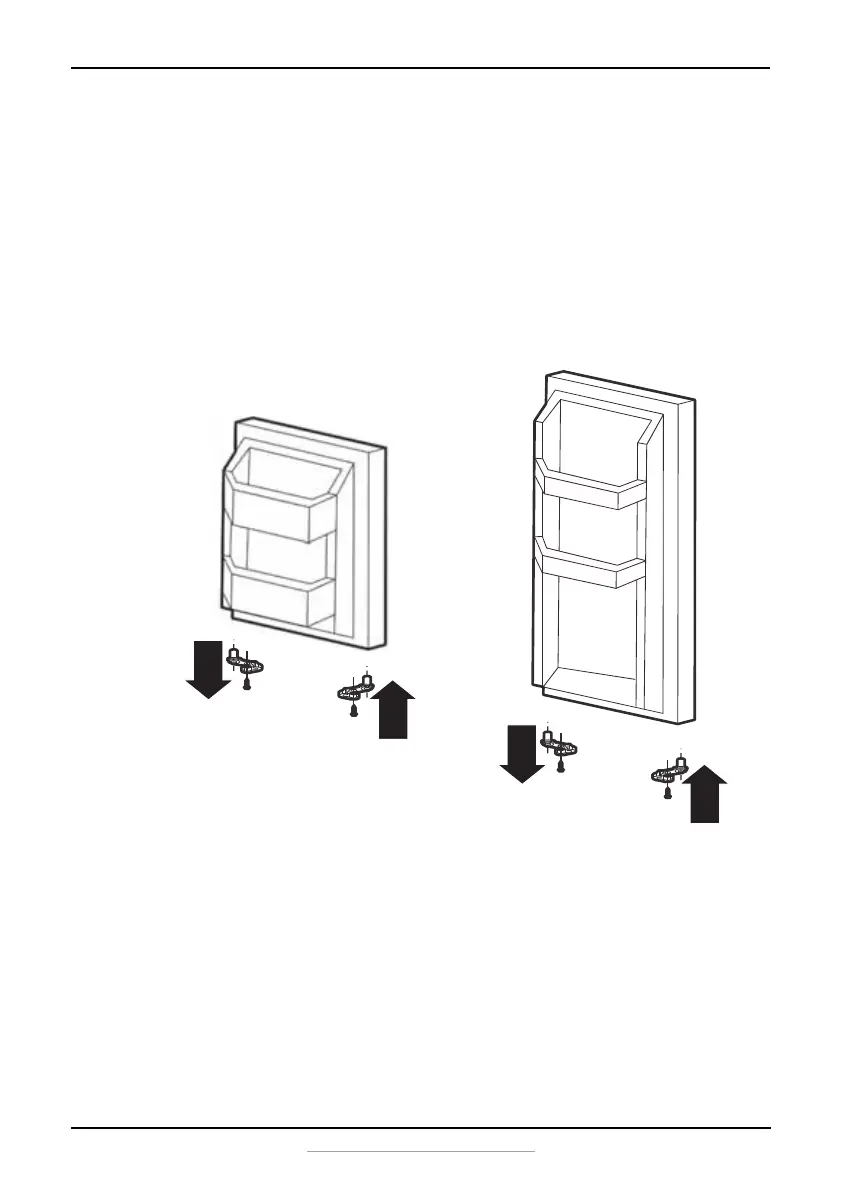

8 Remove the right pin assemblies from the bottom of the freezer and
refrigerator doors.
9 Attach the left pin assemblies to the left side, using the screws you just
removed.
Freezer door
Refrigerator door
NS-RTM10WH7_NS-RTM10BK8_NS-RTM10WH7-C_NS-RTM12SS7-C_17-0191_MAN_V3_ENG.fm Page 13 Tuesday, April 11, 2017 3:10 PM
