INSTALLATION INSTRUCTIONS

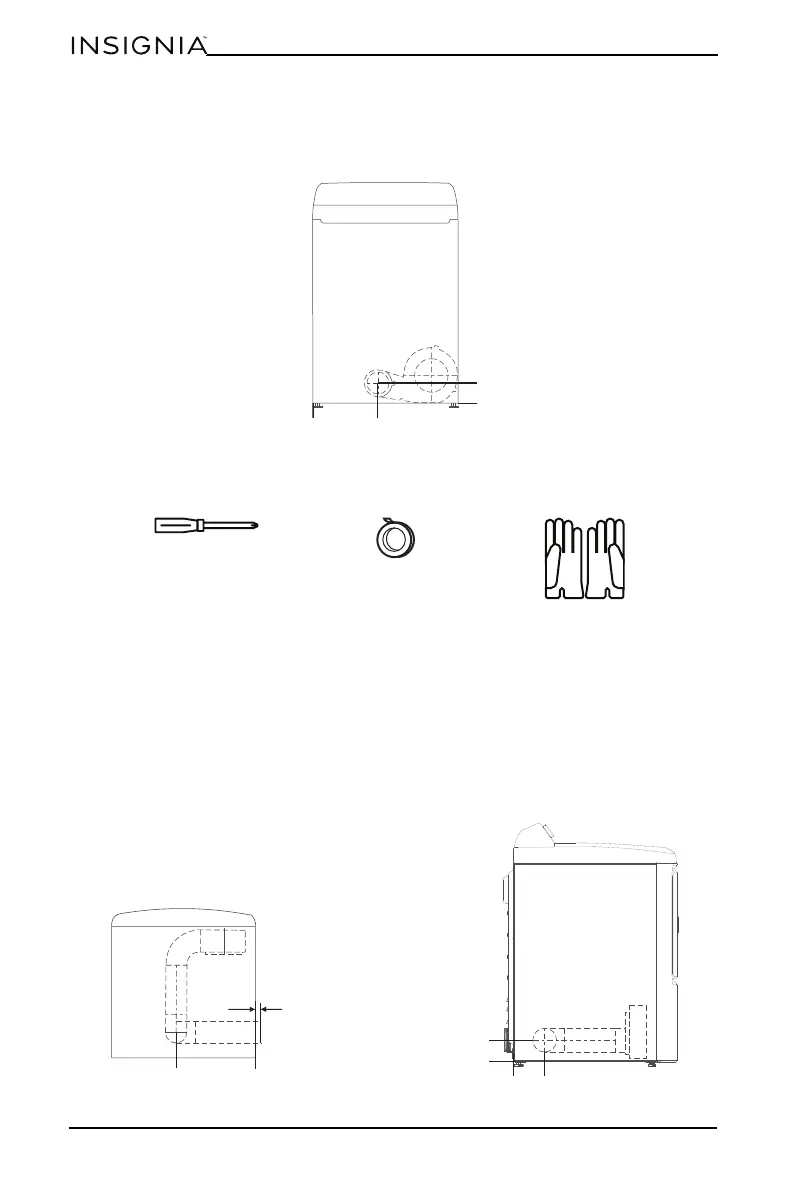

Changing the dryer vent location (optional)
This dryer is shipped to vent from the back. It can also be configured to vent to the
bottom or left side.
Tools you will need
Adapter kits are standard components and can be purchased from any retailer.
Materials you will need
• 4 in. (10.2 cm) duct (rigid or UL-listed flexible metal) (not included)
• 4 in. (10.2 cm) elbow (not included)
• Adapter duct (not included)
Side venting
BACK VIEW
3 5/8 in. (9.3 cm)
12 1/8 in. (30.8 cm)
Phillips screwdriver
Aluminum tape
Gloves
SIDE VIEW
1 1/2 in. (3.8 cm)
TOP VIEW
14 15/16 in. (37.9 cm)
3 5/8 in. (9.3 cm)
5 5/16 in. (13.4 cm)
To Next Page
