INSTALLATION INSTRUCTIONS

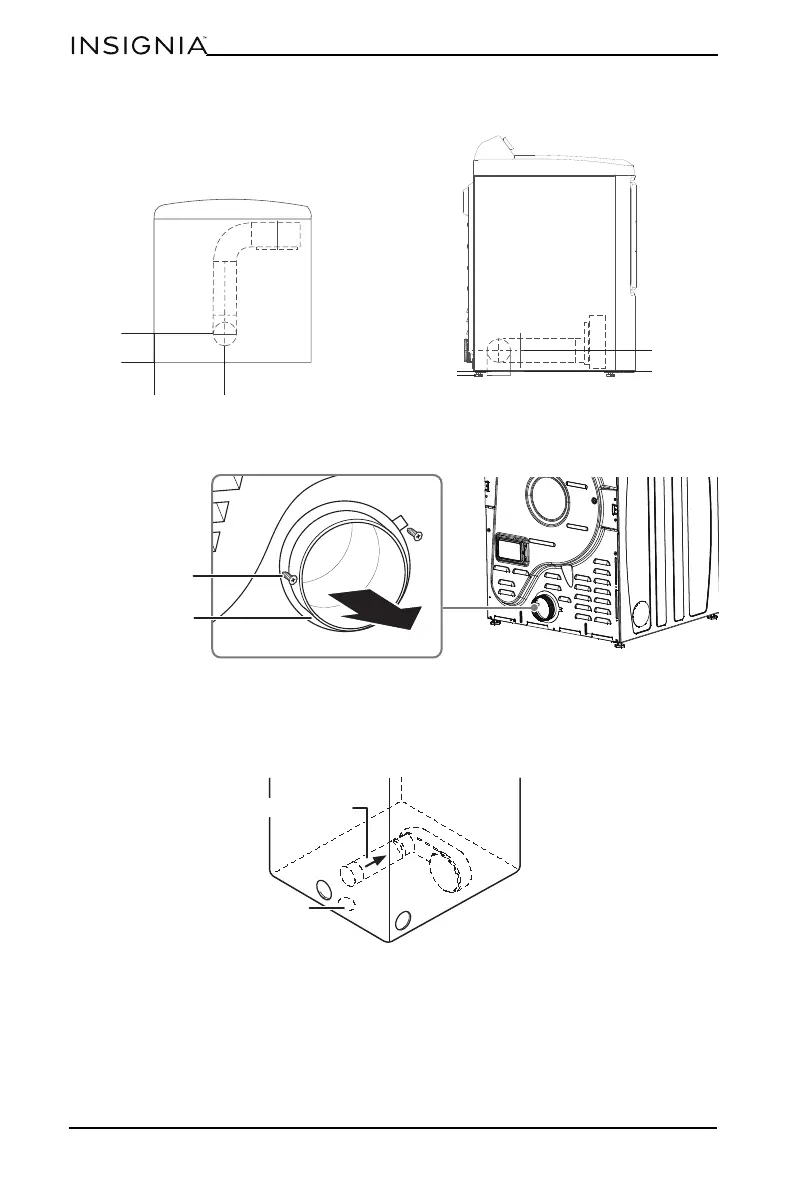

Bottom venting
1 Remove the two rear exhaust retaining screws, then pull out the exhaust duct.
2 Press the tabs on the knockout, then carefully remove the knockout for the
desired vent opening.
3 Push the adapter duct onto the blower housing of the dryer.
4 Connect a 4 in. (10.2 cm) elbow to the 4 in. (10.2cm) duct section, and secure
all joints with aluminum tape. Make sure that the male end of the elbow faces
down through the hole in the bottom from the dryer.
5 Insert the elbow/duct assembly through the rear opening and press it onto
the adapter duct. Secure in place with aluminum tape. The male end of the
duct should protrude 1 1/2 in. (3.8 cm) out of the dryer to connect the
remaining ductwork.
SIDE VIEW
1 1/2 in. (3.8 cm)
TOP VIEW
4 1/2 in. (11.4 cm)
3 1/2 in. (9.3 cm)
12 1/8 in. (30.8 cm)
Retaining screw
Rear exhaust duct
DRYER SIDE/BACK VIEW
Adapter duct
Knockout
