Pg. 9
V12192022_CG3.1PK

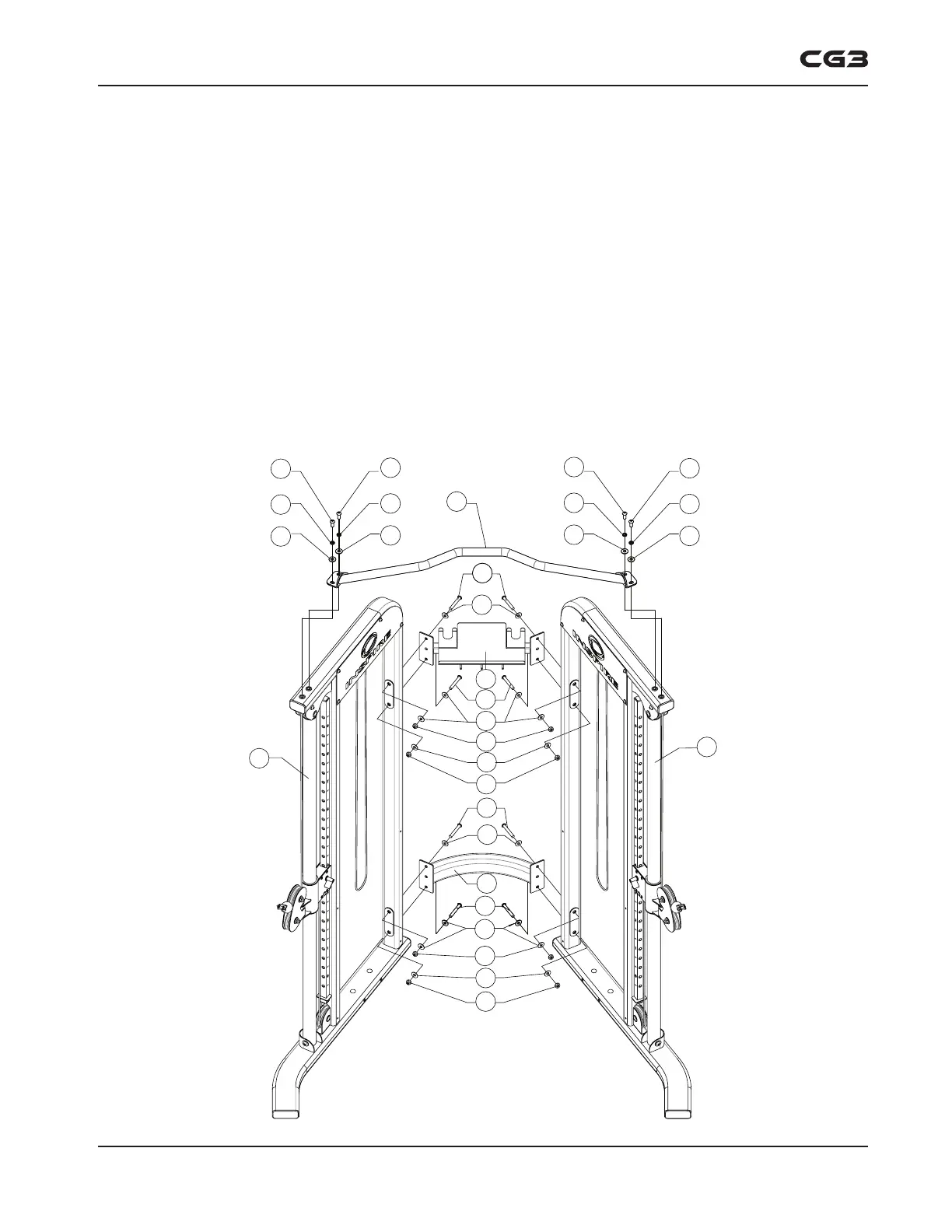

STEP 1
A. Install the Lower Cross Brace (4) to the Right Main Frame (1) and the Left Main Frame (2) using four M10 x
70mm Allen Bolts (29), eight M10 Washers (26) and four M10 Locknuts (21).
Do not fully tighten the hardware at this time.
B. Install the Upper Cross Brace (5) to the Right Main Frame (1) and the Left Main Frame (2) using four M10 x
70mm Allen Bolts (29), eight M10 Washers (26) and four M10 Locknuts (21).
Do not fully tighten the hardware at this time.
C. Install Pull Up Bar Assembly (3) to Right and Left Main Frame (1, 2), using four M10 x 25mm Bolts (40), four
Lock Washers (17) and four Flat Washers (26).
ASSEMBLY INSTRUCTIONS
21
21
26
26
29
4
29
26
26
21
21
26
29
26
29
26
17
40
26
17
40
26
17
40
26
17
40
3
29
1
2
5
