2 – 5” Hex Bolts
Leg Press Base
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
Dual Pulley Mount
Press Arms
short end of tube
faces outward
1 – 1/2” x 10 ¾” Hex Bolt
2 – 1/2” Flat Washers
1 – 1/2” Lock Nut
Caution: Press arms are unstable until the
cables are attached. It is recommended to
lay the press arms forward onto a protective
surface until the cables are installed.

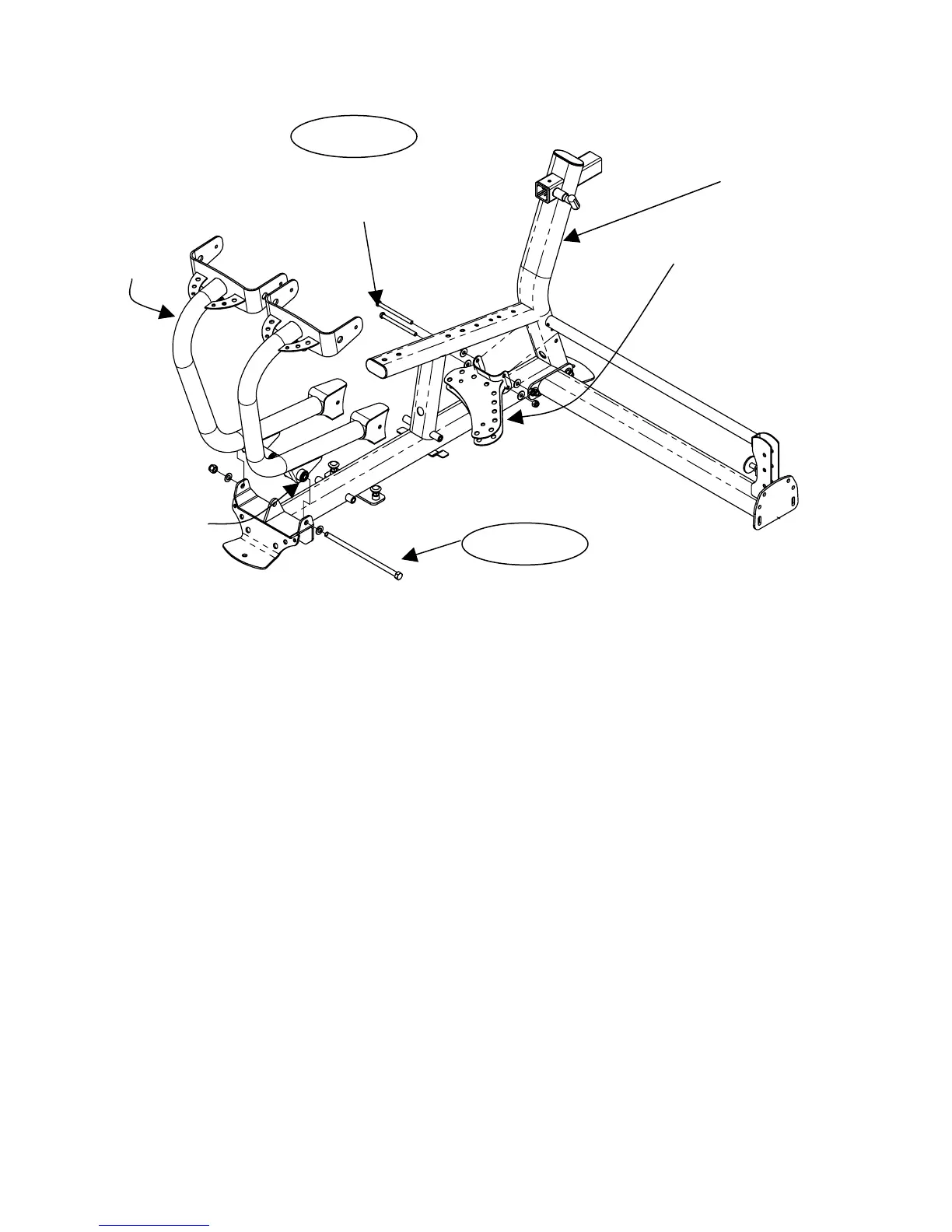

Step 1: Attach Dual Pulley Mount to Leg Press Base using:
Two (3/8” x 5” Hex Bolts)
Four (3/8” Flat Washers)
(Wrench Tighten Bolts) Two (3/8” Lock Nuts)
Step 2: Attach Press Arms to Leg Press Base using:
One (1/2” x 10 ¾” Hex Bolt)
Two (1/2” Flat Washers)
One (1/2” Lock Nut)
(Wrench Tighten Bolts, Assembly Should Move Freely.)
Note: Leg Press Arms angle outward from Leg Press Frame,
short end of tube faces outward.
Page 15
STEP 1
STEP 2
