Inspire LEG PRESS 2 OPTION User Manual

2 – 3 ½” Pulleys 1 – 3 ½” Pulley
2 – 2” Hex Bolts 1 – 2” Hex Bolt
4 – 3/8” Flat Washers 2 – 3/8” Flat Washers
2 – 3/8” Lock Nuts 1 – 3/8” Lock Nut
1 – 8” Hex Bolt 2 – 3 ½” Pulleys 2 – 3 ½” Pulleys
2 – 3/8” Small OD 2 – 2” Hex Bolts 2 –1 ¾” Hex Bolts
Washers 4 – 3/8” Flat Washers 2 – 3/8” Flat Washers
1 – 3/8” Lock Nuts 2 – 3/8” Lock Nuts

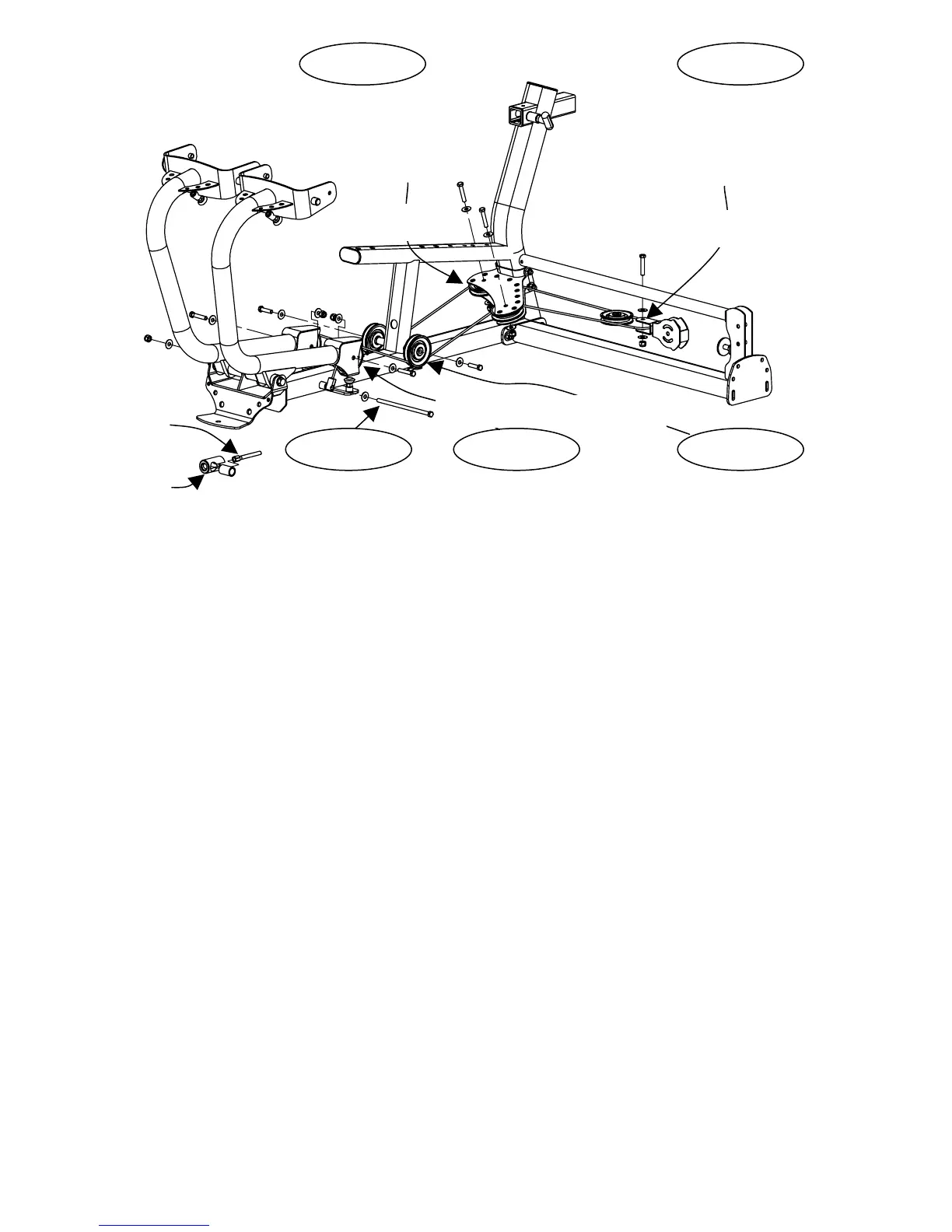

Step 3: Attach Pulleys 1 & 2 to Press Arms using: Two (3 ½” Pulleys)
Two (3/8” x 2” Hex Bolts)
Four (3/8” Flat Washers)
(Wrench Tighten Bolts) Two (3/8” Lock Nuts)
Step 4: Attach Pulleys 3 & 4 to Leg Press Base using: Two (3 ½” Pulleys)
Two (3/8” x 1 ¾” Hex Bolts)
(Wrench Tighten Bolts) Two (3/8” Flat Washers)
Step 5: Attach Pulleys 5 & 6 to Pulley Bracket using: Two (3 ½” Pulleys)
Two (3/8” x 2” Hex Bolts)
Four (3/8” Flat Washers)
(Wrench Tighten Bolts) Two (3/8” Lock Nuts)
Step 6: Attach Pulley 7 to Floating Pulley Bracket using: One (3 ½” Pulley)
One (3/8” x 2” Hex Bolt)
Two (3/8” Flat Washers)
(Wrench Tighten Bolts) One (3/8” Lock Nut)
Step 7: Attach Main Cable by sliding end of cable thru slot of Cable End as shown,
then slide Bushing into Cable End, attach Bolt. Route the Main Cable around
Pulleys 1, 3, 5 and thru Floating Pulley 7, continue routing cable around Pulleys 6,
4, 2 and attach other end of cable to Cable End using:
One (3/8” x 8” Hex Bolt)
Two (3/8” Small OD Washers)
(Wrench Tighten Bolts) One (3/8” Lock Nut)
Page 16
STEP 5
STEP 4 STEP 3
Pulley-3 & 4
Pulley-5 & 6
Pulley-1 & 2
STEP 6
Pulley-7
Cable
Cable End
w/ Bushing
STEP 7
