Main Upright
Reinforcement
Bracket
1 – 3 ¾” Hex Bolt
STEP 3B
2 – 3/8” Flat Washers
1 – 3/8” Lock Nuts
Right Upright Support
Rear Base
Left Upright Support
Curl Bar Holder
4 – 2 ¼” Hex Bolts
STEP 3A
4 – 3/8” Flat Washers

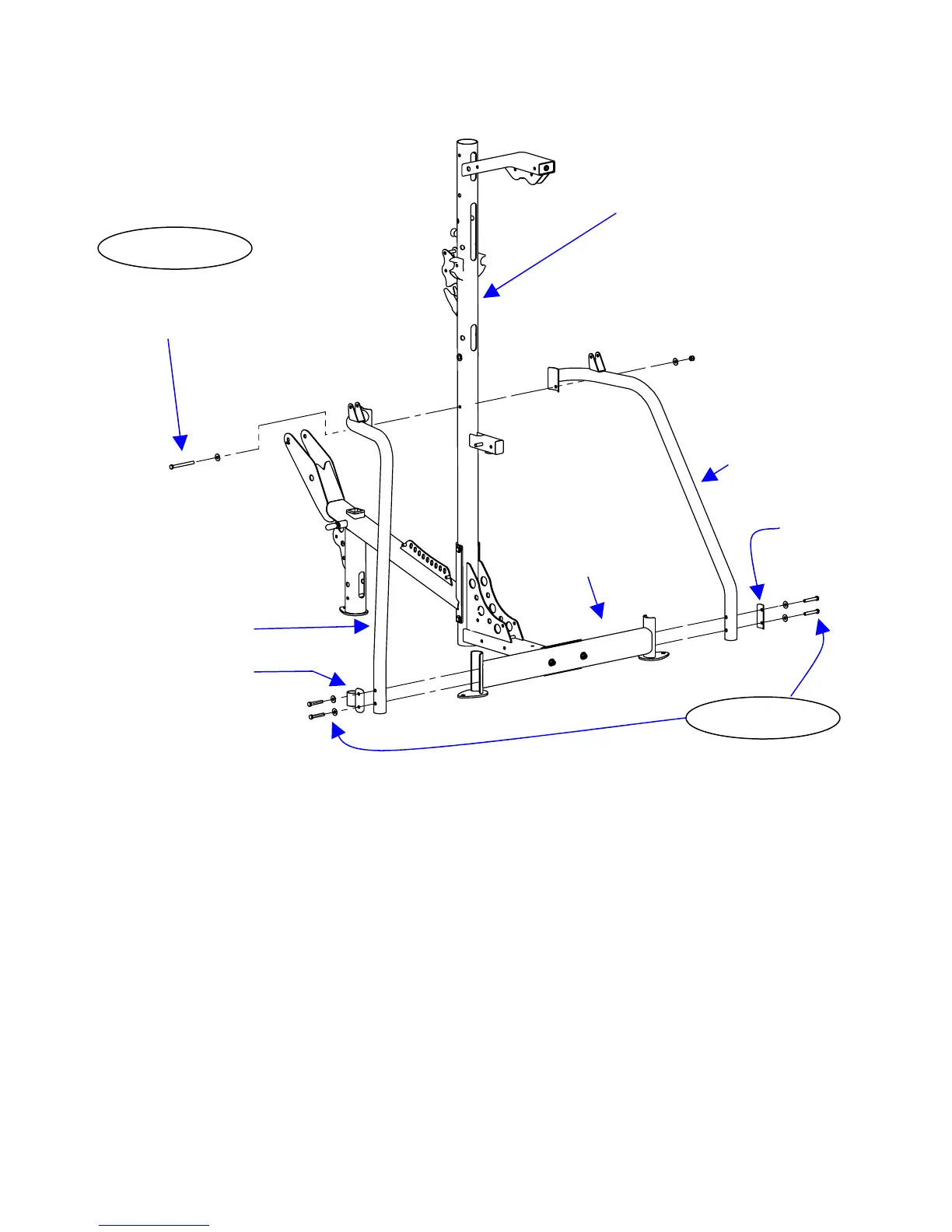

Step 3A: Attach Left Upright Support, Right Upright Support, Curl Bar Holder, and
Reinforcement Bracket to Rear Base Using:
Four (3/8” x 2 ¼” Hex Bolts)
Note: Wrench Tighten Now Four (3/8” Flat Washers)
Note: Curl Bar Holder and Reinforcement Bracket can be attached to either
side of machine, but are to be attached opposite from each other.
Step 3B: Attach Left and Right Upright Supports to Main Upright Using:
One (3/8” x 3 ¾” Hex Bolt)
Note: Wrench Tighten Now Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Page 9
