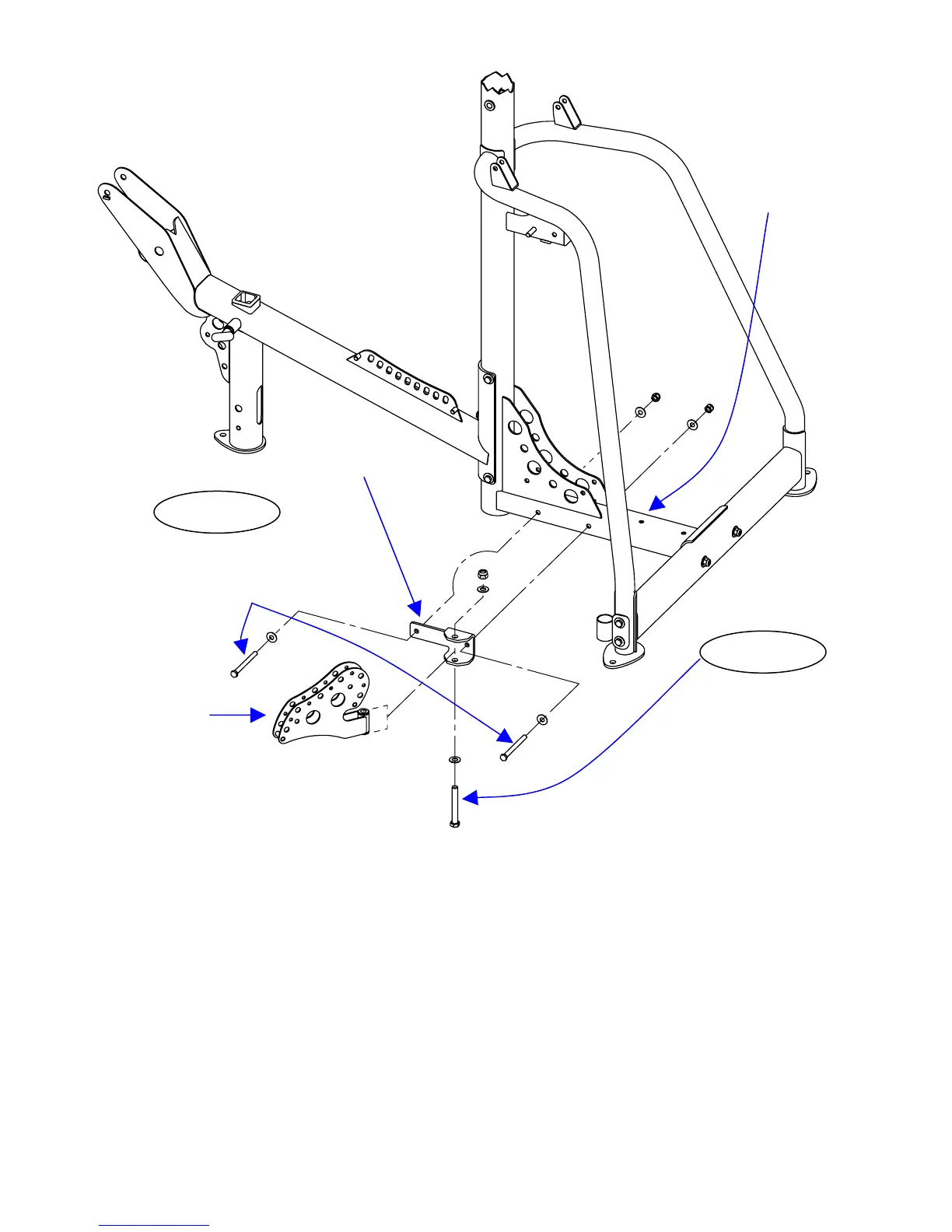

STEP 5
Important! – Follow Sequence.
Main Upright
Swivel Pulley Mount
2 – 4” Hex Bolts
4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
1 – ½” x 3 ½” Hex Bolt
Swivel Pulley Bracket 2 – ½” Flat Washers
1 – ½” Lock Nut
NOTE: Bolt Must Enter Bracket from the bottom.
Step 4: Attach Swivel Pulley Bracket to Swivel Pulley Mount using:
One (1/2” x 3 ½” Hex Bolt)
NOTE: Bolt must enter bracket from the bottom. Two (1/2” Flat Washers)
As shown in the diagram above One (1/2” Lock Nut)
NOTE: Wrench Tighten Now, Do Not Over Tighten
IMPORTANT – If attaching Leg Press, see Leg Press Owner’s Manual Now
Step 5: Attach Swivel Pulley Mount to Main Upright using: Two (3/8” x 4” Hex Bolts)
Four (3/8 Flat Washers)
NOTE: Can be attached to either side of gym Two (3/8” Lock Nut)
NOTE: Wrench Tighten Now
Page 10
