Inspire M3 - Page 15

STEP 7
STEP 8

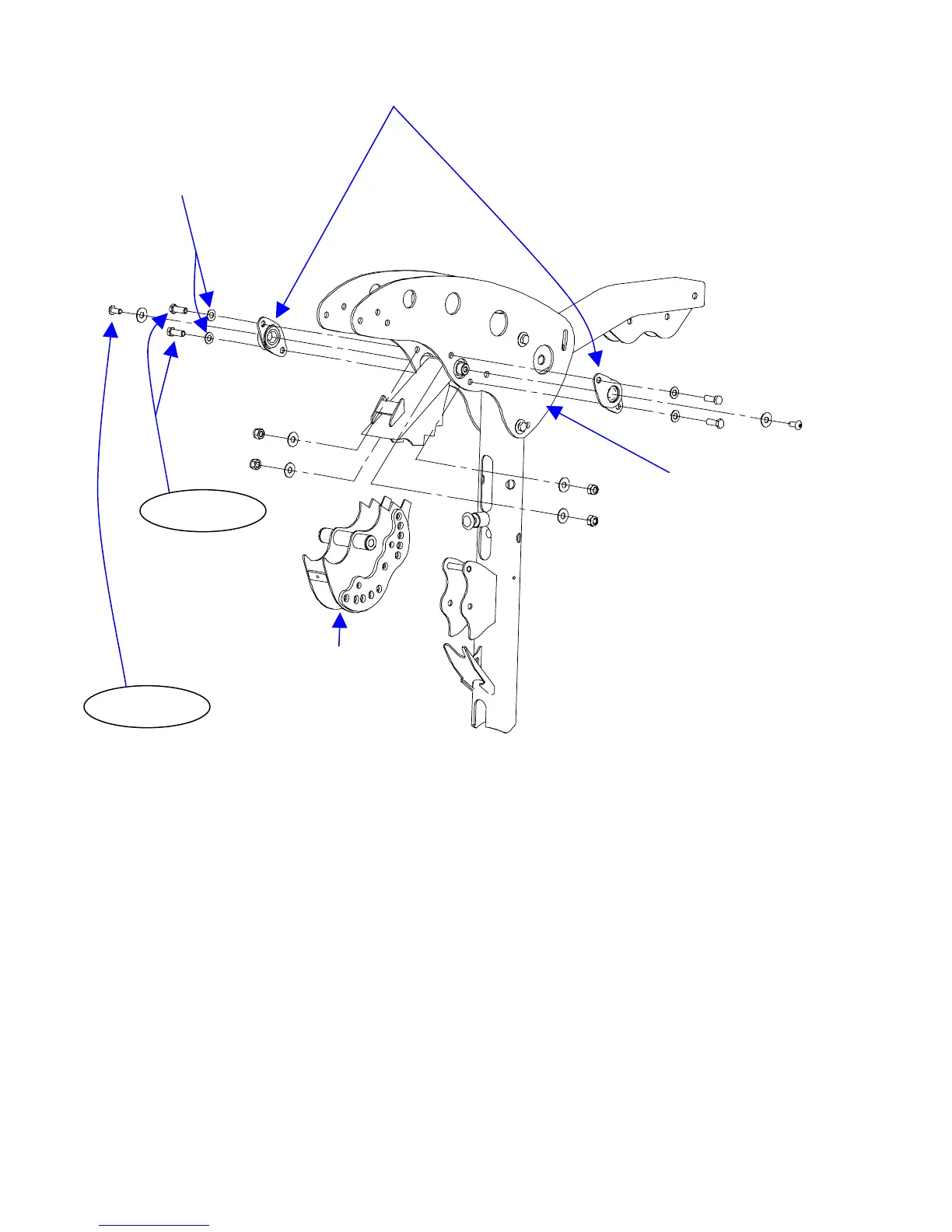

Press Arm Bearings
NOTE:
Use Small OD Washers on the
Outside of the Press Arm Bearings
Top Beam Plates
4 – 1” Hex Bolts
4 – 3/8” Small OD
Washers
4 – 3/8” Flat Washers
4 – 3/8” Lock Nuts
Press Arm Mount
2 – 3/8” x ½” Button Head Bolts
2 – 3/8” Flat Washers
Step 7: Attach Press Arm Bearings to Top Beam Plates using:
NOTE: Finger Tighten Only Four (3/8” x 1” Hex Bolts)
Four (3/8” Small OD Washers)
Four (3/8” Flat Washers)
Four (3/8” Lock Nuts)
Step 8: Attach Press Arm Mount to Press Arm Bearings Using:
NOTE: Finger Tighten Only Two (3/8” x ½” Button Head Bolts)
Two (3/8” Flat Head Washers)
Page 12
