Inspire M3 - Pulley, Cable, and Arm Installation

2 – 3 ½” Pulleys
2 – 2” Hex Bolts
Install 5 Pulleys 4 – 3/8” Flat Washers
2 – 3/8” Lock Nuts
1 – 3 ½” Pulley
1 – 3 ¾” Hex Bolt
2 – 1” Step Spacers
1 – 3/8” Lock Nut
Pulley 1
Pulley3
Pulley2
Pulley4
Pulley5
2 – 3 ½” Pulleys
2 – 3 ¾” Hex Bolts
4 – 1” Step Spacers
2 – 3/8” Lock Nuts

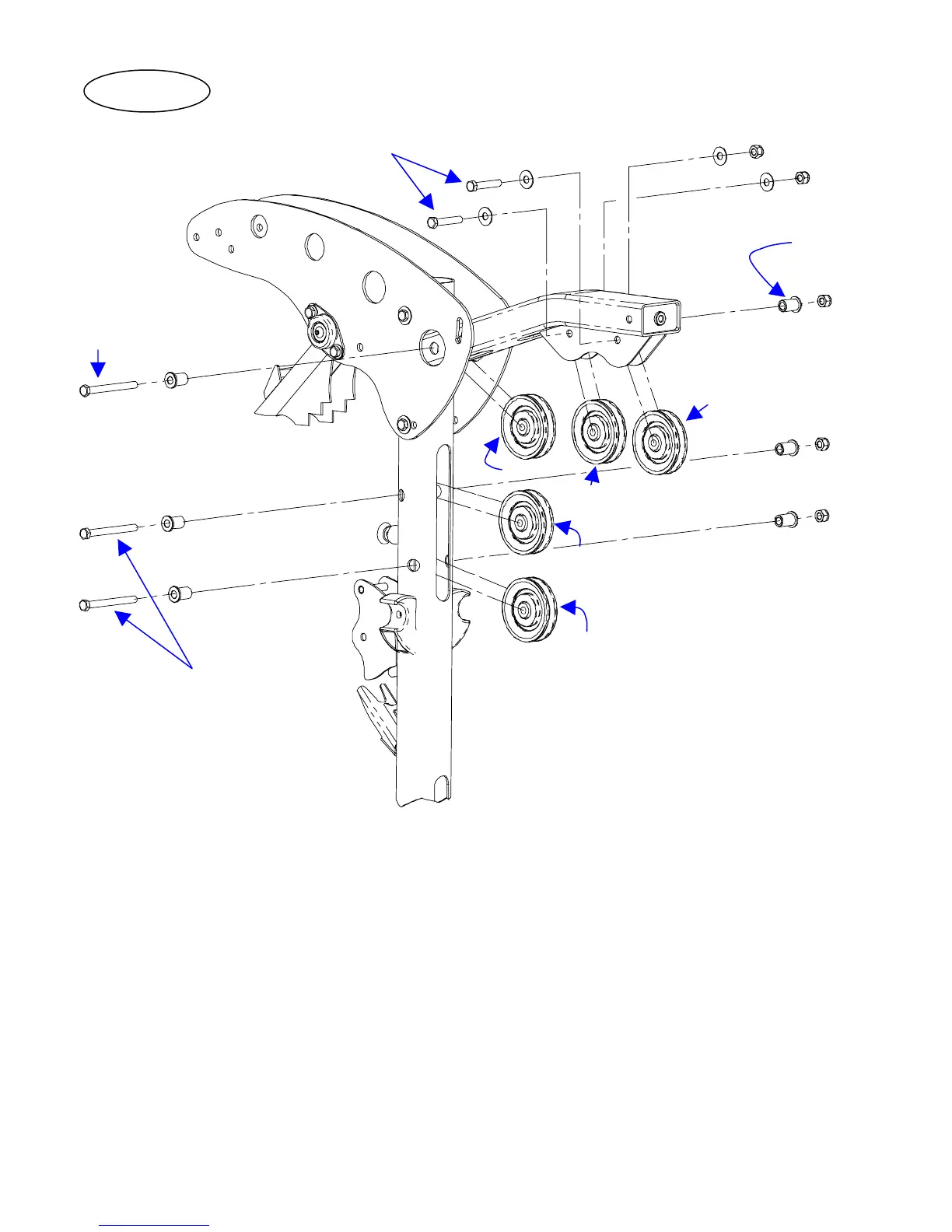

Step 9: Attach Pulleys 1 & 2 to Main Upright using: Two (3 ½” Pulleys)
Two (3/8” x 2” Hex Bolts)
NOTE: Finger Tighten Now Four (3/8” Flat Washers)
Two (3/8” Lock Nuts)
Attach Pulley 3 to Main Upright using: One (3 ½” Pulley)
One (3/8” x 3 ¾” Hex Bolt)
NOTE: Finger Tighten Now Two (1” Step Spacers)
One (3/8” Lock Nut)
Attach Pulleys 4 & 5 to Main Upright using: Two (3 ½” Pulleys)
Two (3/8” x 3 ¾” Hex Bolts)
NOTE: Finger Tighten Now Four (1” Step Spacers)
Two (3/8” Lock Nuts)
Page 13
STEP 9
Use for Pulley3
