Inspire M3 - Page 17

-
1 – 4 ¾” Hex Bolt
1 – 3” Spacer Tube 1 – 4 ½” Wide Groove Pulley
2 – 3/8” Flat Washers 1 – 4” Hex Bolt
1 – 3/8” Lock Nut 2 – 5/8” Barrel Spacers
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
Pulley 7
Pulley 6
1 – 3 ½” Pulley
1 – 4” Hex Bolt
2 – 1” Barrel Spacers
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut

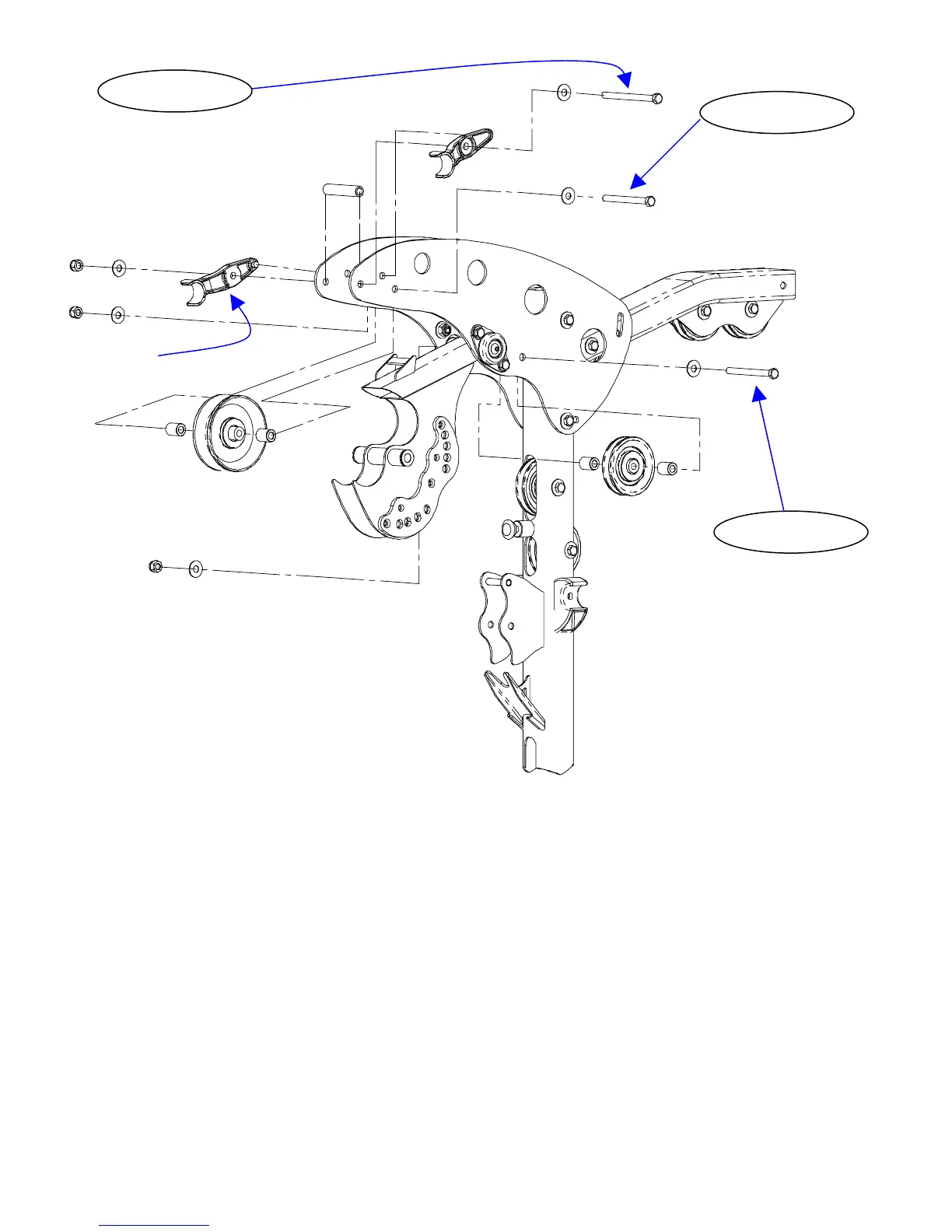

Step 10: Attach Pulley 6 to Top Beam Plates using: One (3 ½” Pulley)
NOTE: Finger Tighten Only One (3/8” x 4” Hex Bolt)
Two (1” Barrel Spacers)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 11: Attach Pulley 7 to Top Beam Plates using: One (4 ½” Wide Groove Pulley)
NOTE: Finger Tighten Only One (3/8” x 4” Hex Bolt)
Two (5/8” Barrel Spacers)
Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 12: Attach Lat Bar Holders to Top Beam using: One (3/8” x 4 ¾” Hex Bolt)
NOTE: Wrench tighten Bolts in One (3” Spacer Tube)
Step 6 through 12 Now Two (3/8” Flat Washers)
One (3/8” Lock Nut)
Page 14
Lat Bar Holder
STEP 10
STEP 11
STEP 12
