Inspire M3 - Page 23

STEP 27
STEP 28
STEP 29
1 – 4 ½” Wide Pulley
1 – 2 ½” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut
1 – 3 ½” Pulley
1 – 3 ¾” Hex Bolt
2 – 1” Step Spacers
1 – 3/8” Lock Nut
1 – 3 ½” Pulley
1 – 2” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut

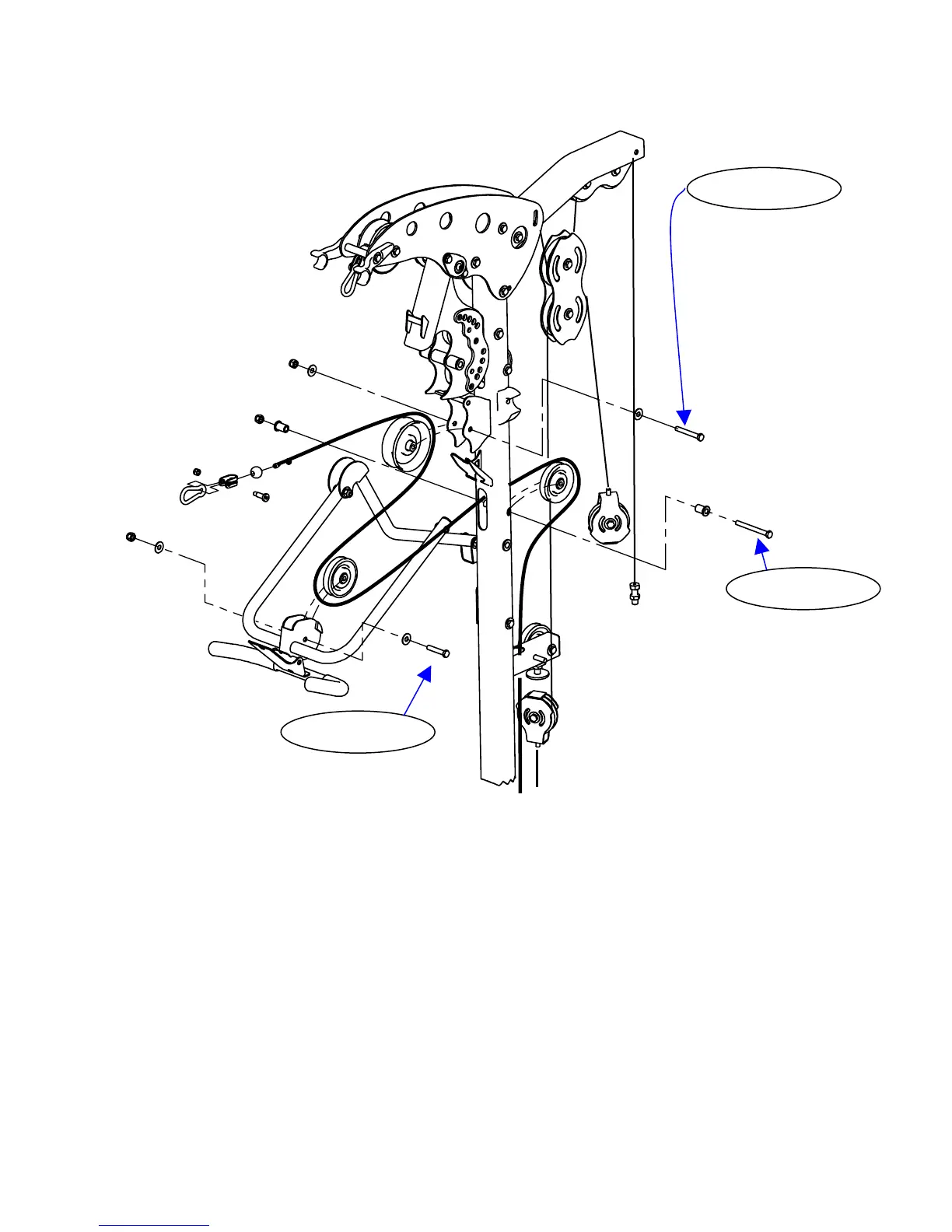

Step 27: Begin routing the Ab Crunch Cable as Pulley 19 is attached using:
One (4 ½” Wide Groove Pulley) One (3/8” x 2 ½” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
Step 28: Continue routing cable as Pulley 20 is attached to Ab Frame Assembly using:
One (3 ½” Pulley) One (3/8” x 2” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
Step 29: Continue routing cable as Pulley 21 is attached to Main Upright using:
One (3 ½” Pulley) One (3/8” x 3 ¾” Hex Bolt)
Two (1” Step Spacers) One (3/8” Lock Nut)
NOTE: Wrench Tighten Steps 27-29 Now.
