Inspire M3 User Manual

STEP 23
STEP 24
STEP 25
STEP 26
Middle Cable
Pulley 16
1 – 4 ¼” Hex Bolt
3 – 3/8” Flat Washers
1 – 3/8” Lock Nut Floating Pulley Plate
Pulley 17
2 – 4 ½” Pulleys
2 – 1 ¾” Hex Bolts
4 – 3/8” Flat Washers 1 – Cable Adapter
2 – 3/8” Lock Nuts Pulley 18 1 – 3 ½” Pulley
1 – 1 ¾” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nuts
1 – 3 ¼” Hex Bolt
2 – 3/8” Flat Washers
1 – 3/8” Lock Nut Pulley 15
Floating Pulley
Bracket Assembly
NOTE: The Floating Pulley Bracket
Assembly has a plate on it.

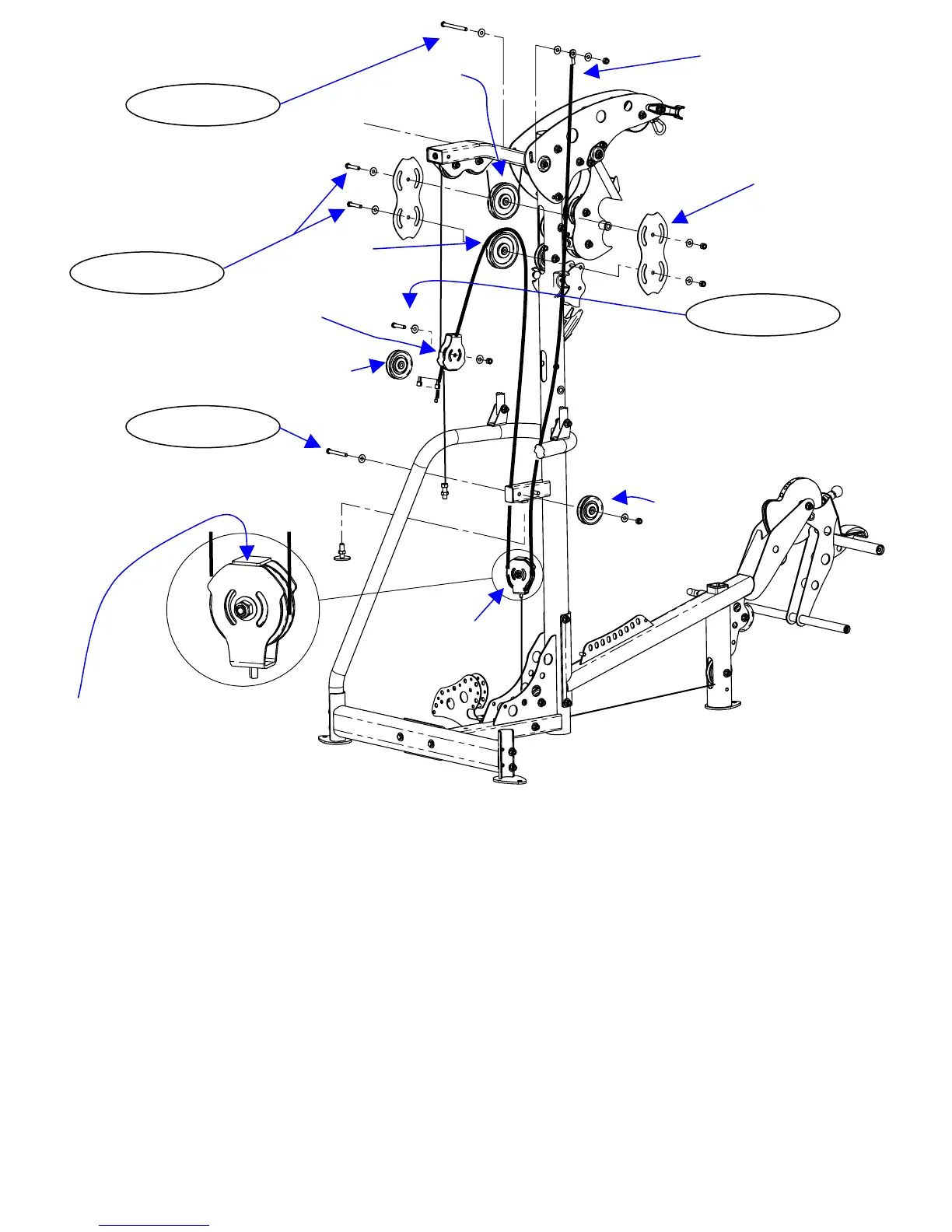

Step 23: Attach Middle Cable to Right Top Beam Plate using: One (3/8” x 4 ¼” Hex Bolt)
NOTE: 4 ¼” Hex Bolt Must Be Bolted Above Upper Cable. Three (3/8” Flat Washers)
One (3/8” Lock Nut)
Step 24: Attach Pulley 15 to Main Upright using: One (3/8” x 3 ¼” Hex Bolt)
NOTE: Wrench tighten Steps 23 & 24 Now Two (3/8” Flat Washers)
One (3/8” Lock Nut)
NOTE:
Be sure to route Middle Cable between Pulley 15 and cable retainer pin as Pulley 15 is attached.
Step 25: Assemble Floating Pulley Plates using:
Two (4 ½” Pulleys) Two (3/8” x 1 ¾” Hex Bolts)
Four (3/8” Flat Washers) Two (3/8” Lock Nuts)
NOTE:
Be sure to route cable through the Floating Pulley Bracket Assembly and over pulley 17. The
Upper Cable must also be routed under Pulley 16 as Floating Pulley Plates are assembled.
Step 26: Attach Floating Pulley Bracket and Pulley 18 to end of Middle Cable using:
One (Cable Adapter) One (3 ½” Pulley) One (3/8” x 1 ¾” Hex Bolt)
Two (3/8” Flat Washers) One (3/8” Lock Nut)
Page 19
Floating Pulley
Bracket

Inspire M3 Specifications

General

Resistance Type	Weight Stack
Weight Capacity	300 lbs
Color	Black
Frame	Steel
Finish	Powder coat
Material	Steel
Included Accessories	Lat Bar
Exercises	Chest Press, Incline Press, Decline Press, Lat Pulldown, Seated Row, Leg Extension, Leg Curl, Preacher Curl, Ab Crunch
Press Arm	Adjustable
