Inspire SCS-202 User Manual

Right Top Beam
Top Right Cable Column Mount
Step 7
2 - M10 x 100 Hex Bolts (Blue Dot)
2 - M10 x 110 Hex Bolts
6 - M10 Flat Washers
2 - M10 Locknuts Top Left Cable Column Mount
Step 8
2 - M10 x 100 Hex Bolts (Blue Dot)
2 - M10 x 110 Hex Bolts
6 - M10 Flat Washers
2 - M10 Locknuts
Step 9
1 - M12 x 25 Hex Bolt
1 - M10 x 45 Hex Bolt
2 - M10 Flat Washers
1 - M10 Locknut

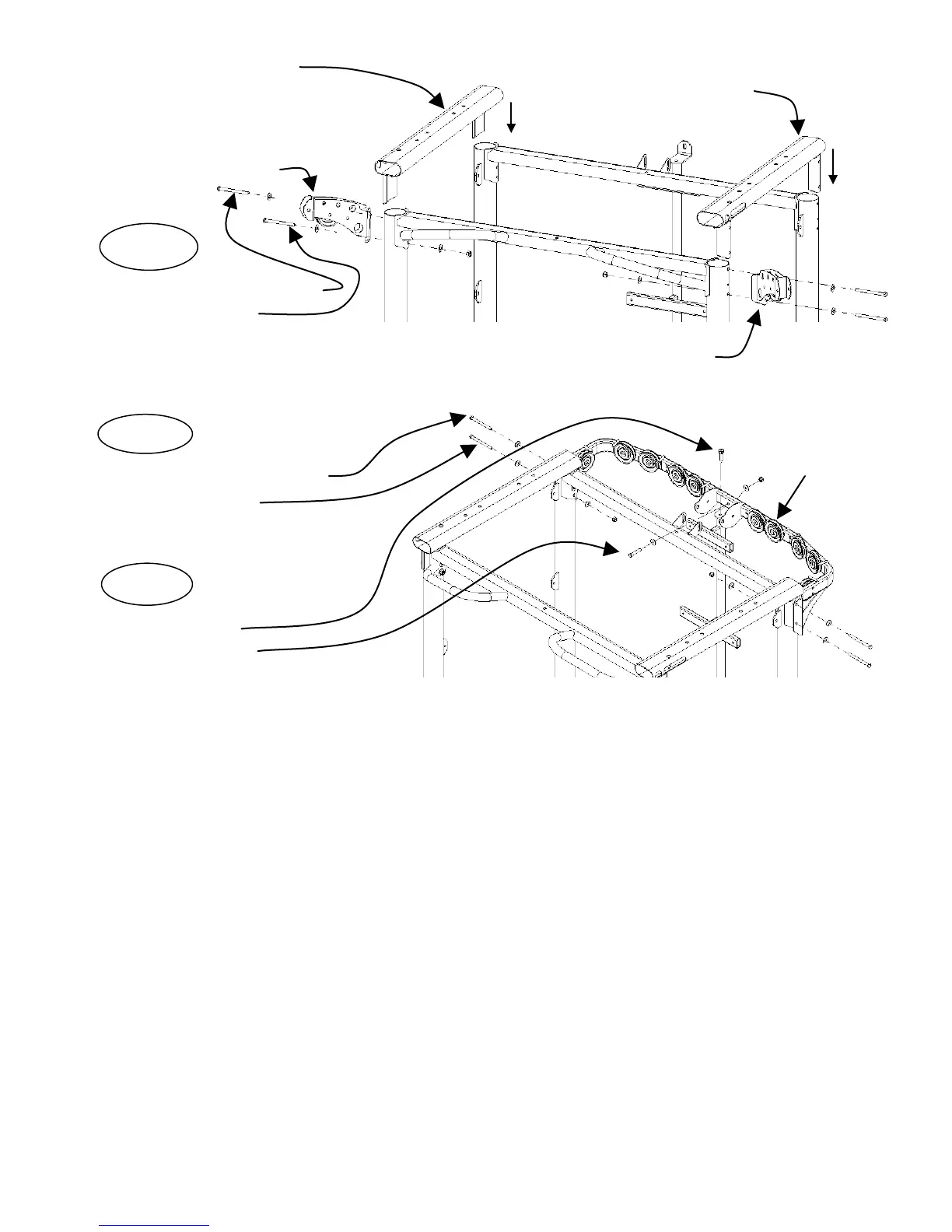

Step7: Attach the Left Top Beam and Top Left Cable Column Mount Two (M10 x 100 Hex Bolts
to the left Main Uprights AND the Right Top Beam and Top with Blue Dot)
Right Cable Column Mount to the Right Main Uprights using: Two (M10 x 110 Hex Bolts)
Six (M10 Flat Washers)
(Finger Tighten Only) Two (M10 Locknuts)
Step 8: Attach the Top Weight Stack Mount to the Rear Main Two (M10 x 100 Hex Bolts
Uprights using: with Blue Dot)
Two (M10 x 110 Hex Bolts)
Six (M10 Flat Washers)
(Finger Tighten Only) Two (M10 Locknuts)
Step 9: Install the M12 x 25 hex bolt in the top of the One (M12 x 25 Hex Bolt)
Row Pulley Mount and adjust it to it’s minimum height. One (M10 x 45 Hex Bolt)
Attach the Top Weight Stack Mount to the Row Pulley Two (M10 Flat Washers)
Mount with the M10 x 45 hex bolt. Insert this bolt from One (M10 Locknuts)
front to go out the back, using:
(Wrench Tighten Steps 1 - 9)
Page 9
Left Top Beam
Top Weight
Stack Mount
