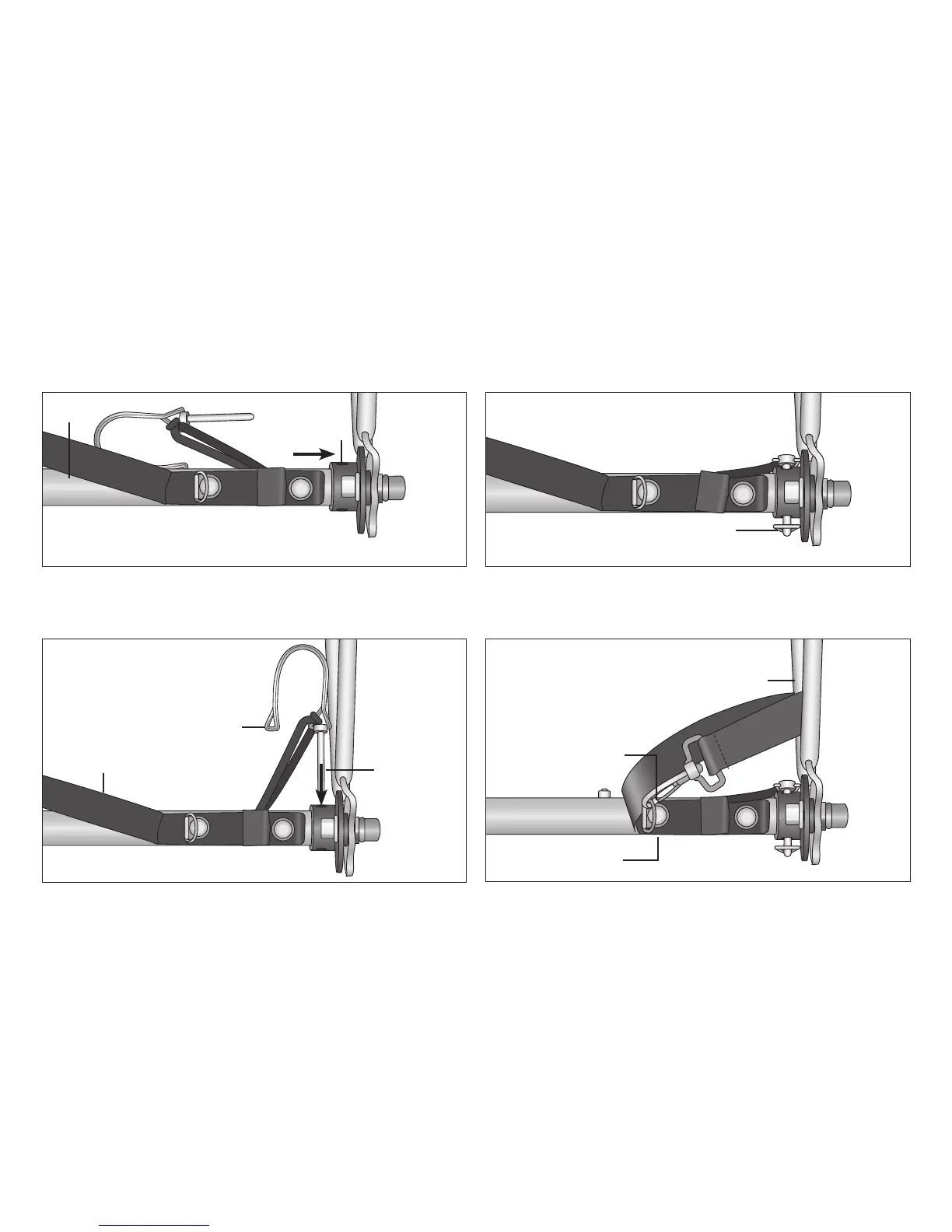

❺ Insert the tow bar into the large hole on the coupler plate.
Figure 4.5
❻ Insert the locking pin through the coupler plate and tow bar.
Figure 4.6
❼ Slide the metal safety loop onto the locking pin. Check that it is
securely in place. Figure 4.7
❽ Wrap the tow bar safety strap around the bicycle frame and
clip it to the ring on the end of the tow bar. Figure 4.8
Coupler plate
Tow bar
Locking pin
Safety loop
Safety loop
secured to pin
Note: Figures 4.5 - 4.8 are top views
looking down on the tow bar.
Figure 4.5 Figure 4.7
Figure 4.6
Bicycle frame
Safety strap clip
Tow bar ring
Figure 4.8
Safety strap
