InStep Robin Trailer 16
❹ Insert the axle skewer tab washer, coupler plate and spring
through the wheel, with the parts oriented as described in
step 3. Figure 4.12
❺ Replace the spring and nut that were removed in step 1 on
the axle skewer and ghten.
Fit the tab on the tab washer into the slot
on the bicycle frame dropout
❻ Rotate the quick release lever up and close fully and ghtly.
Ensure the coupler pegs are inserted into holes on tab washer.
When properly tightened, the quick release lever should leave
an imprint in your hand. The pressure should be firm but not
excessive. Figure 4.13
❼ Follow step 5 - 8 on page 13. Figures 4.5 - 4.8
4
5
6

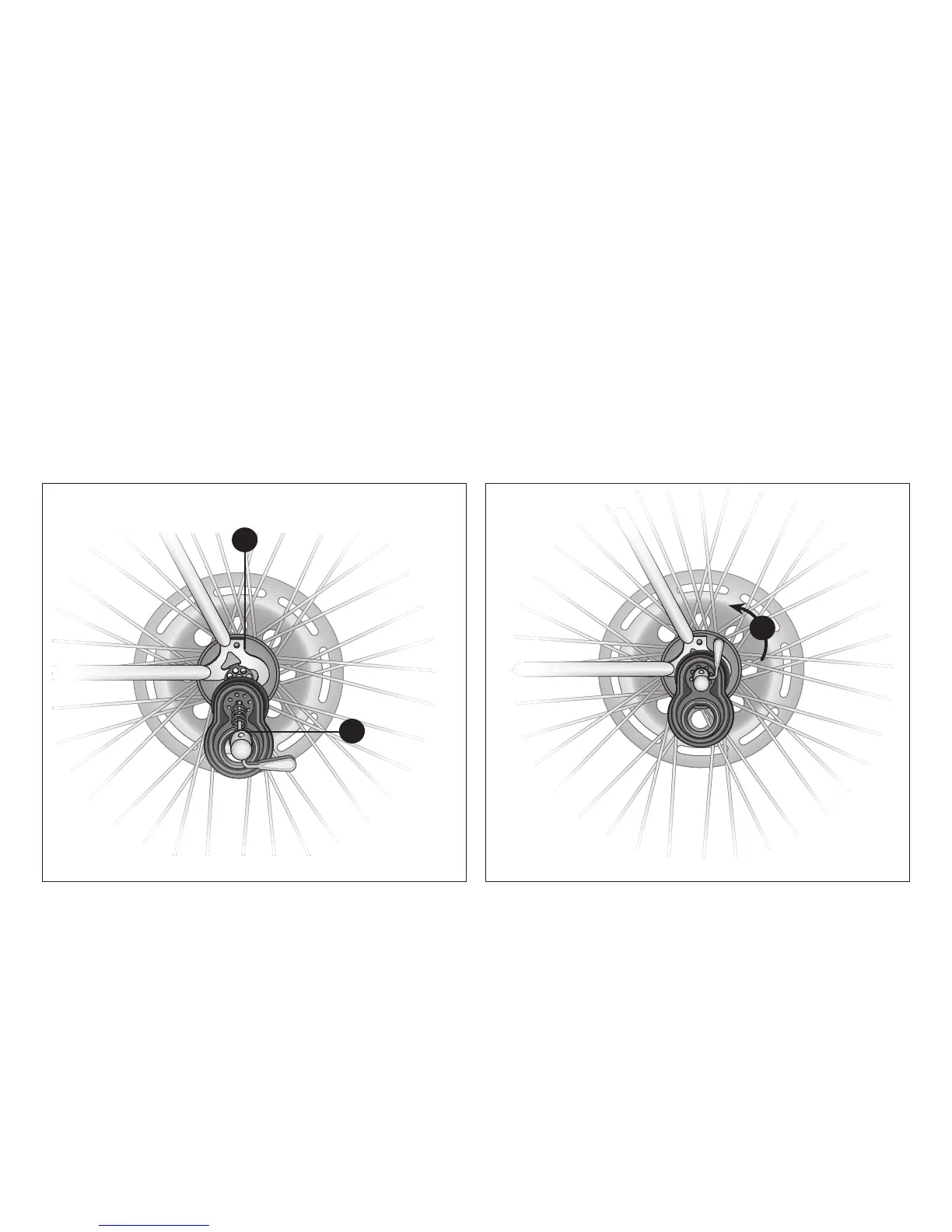

Figure 4.12 Figure 4.13
