Instron 5982 - Page 32

Chapter: Requirements and Specifications
2-12 M10-16250-EN

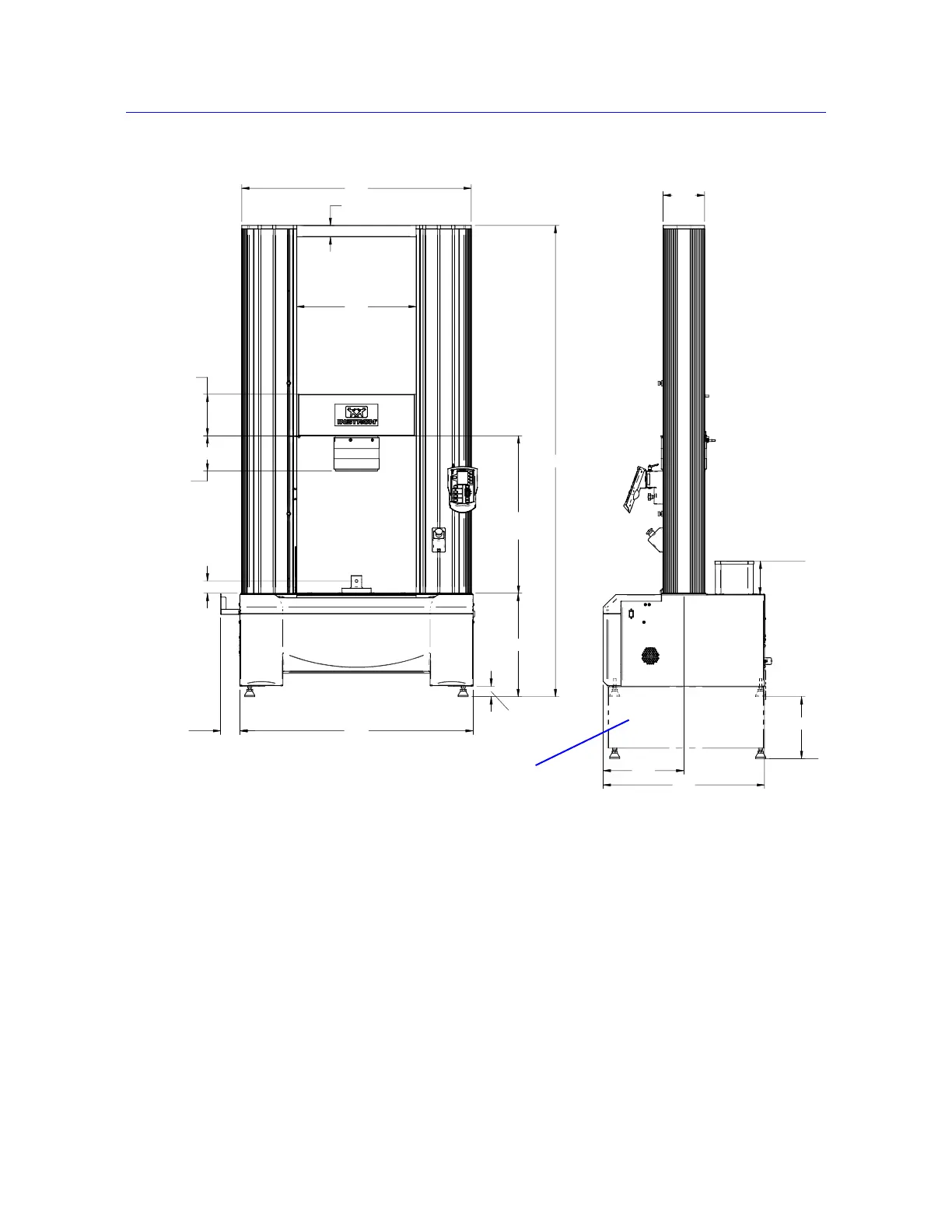

Figure 2-2. 5982, 5984 and 5985 Load Frame Dimensions
F
50 ±16
B
A
498
G93
J
55
300
777
389
200

D
E
Optional Base Extension
