Instron 5982 - 5988 And 5989 Dimensions

Chapter: Requirements and Specifications
2-16 M10-16250-EN
5988 and 5989 Dimensions
Figure 2-5 on page 2-16 shows the frame dimensions. Refer to Table 2-9 on page 2-17 to
match the letter designations.

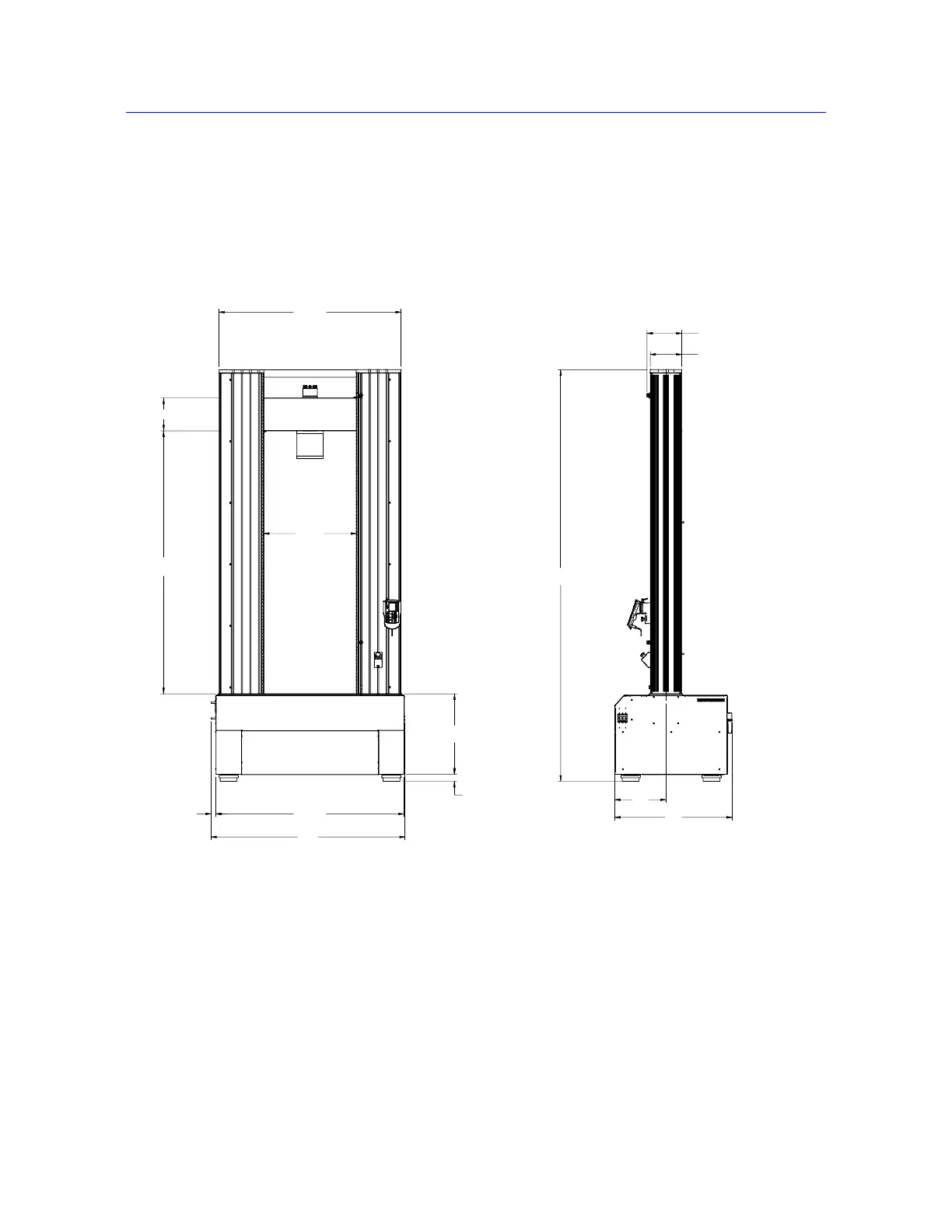

Figure 2-5. 5988 and 5989 Load Frame Dimensions
1495
1545
259
3128
964
285
611
53
68
41
1594
763
420
A
B1 B2
