Instron 5982 - Page 35

2-15
5982, 5984 and 5985 Dimensions
Product Support: www.instron.com

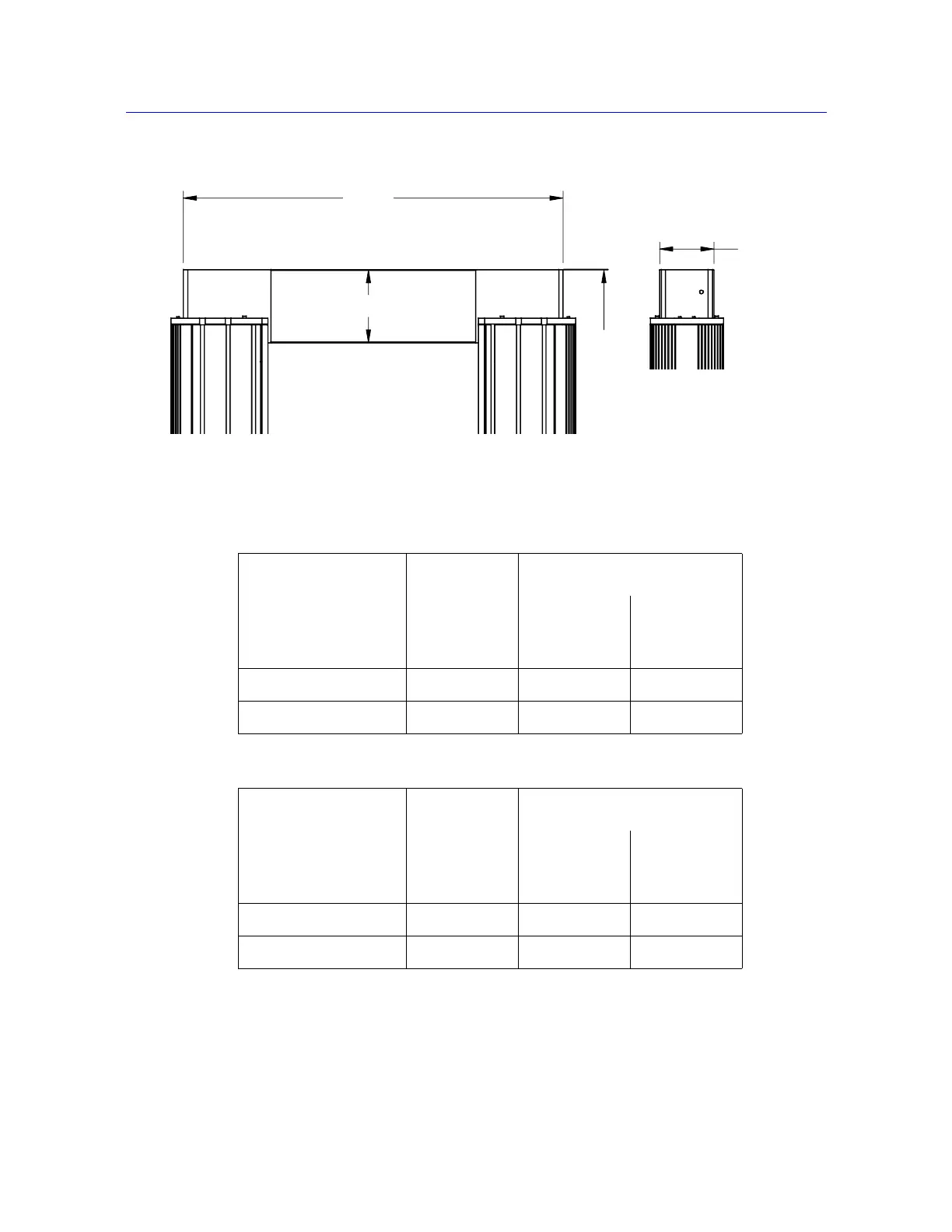

Figure 2-4. Second Test Space Dimensions
148
1037
C
F
Table 2-7. 5982 with Second Test Space
Dimension - mm (in) Letter
Frame Option
Standard
Height and
Width Extra Height
Top plate thickness C 148 (5.8) 148 (5.8)
Overall height F 2354 (92.7) 2905 (114.4)
Table 2-8. 5984 and 5985 with Second Test Space
Dimension - mm (in) Letter
Frame Option
Standard
Height and
Width Extra Height
Top plate thickness C 200 (7.9) 200 (7.9)
Overall height F 2406 (94.7) 2957 (116.4)
