INTARCON MCV-N - Dimensions

18

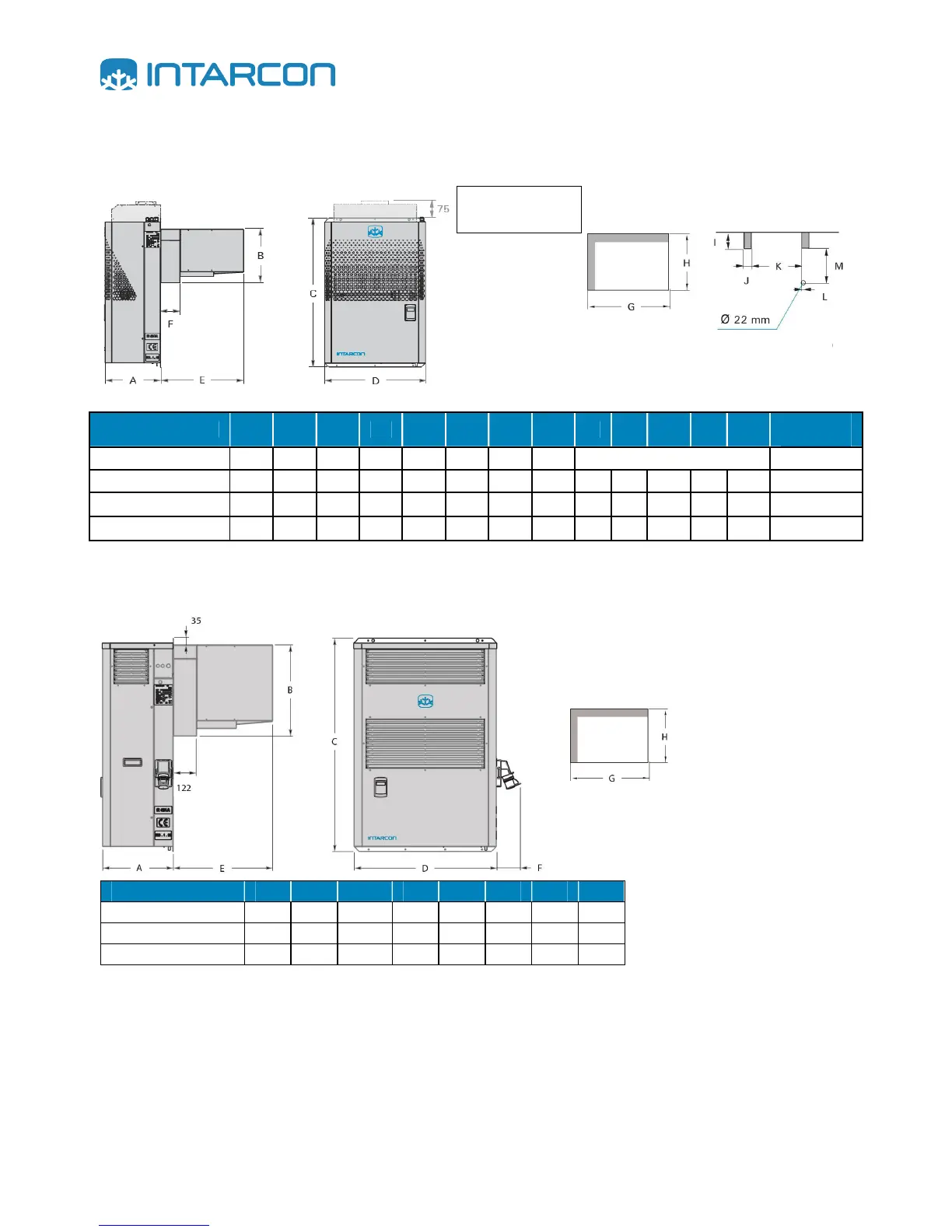

14. DIMENSIONS
CV-N-C Models
CV-I Models
Dimensions (mm) A B C D E F G H
1
series
340 330 1060 400 514 115 380 335
2
series
340 330 1100 620 514 115 600 335
3
series
365 470 1100 735 514 115 710 475
Dimensions (mm) A B C D E F G H I J K L M
Exhaust
duct
0 series
306 510 683 420 250 50 405 515 n/a Ø 150
1 series
340 330 880 400 514 122 380 335 75 41 295 13 233 Ø 150
2 series
340 330 920 620 514 122 600 335 75 36 523 13 233 Ø 150
3 series
365 470 920 735 514 122 710 475 75 41 611 22 356 2x Ø 150
PLUG
-
IN FRAME
DROP FRAME
Centrifugal Box
only in 0 series
