Maintenance, Cont.

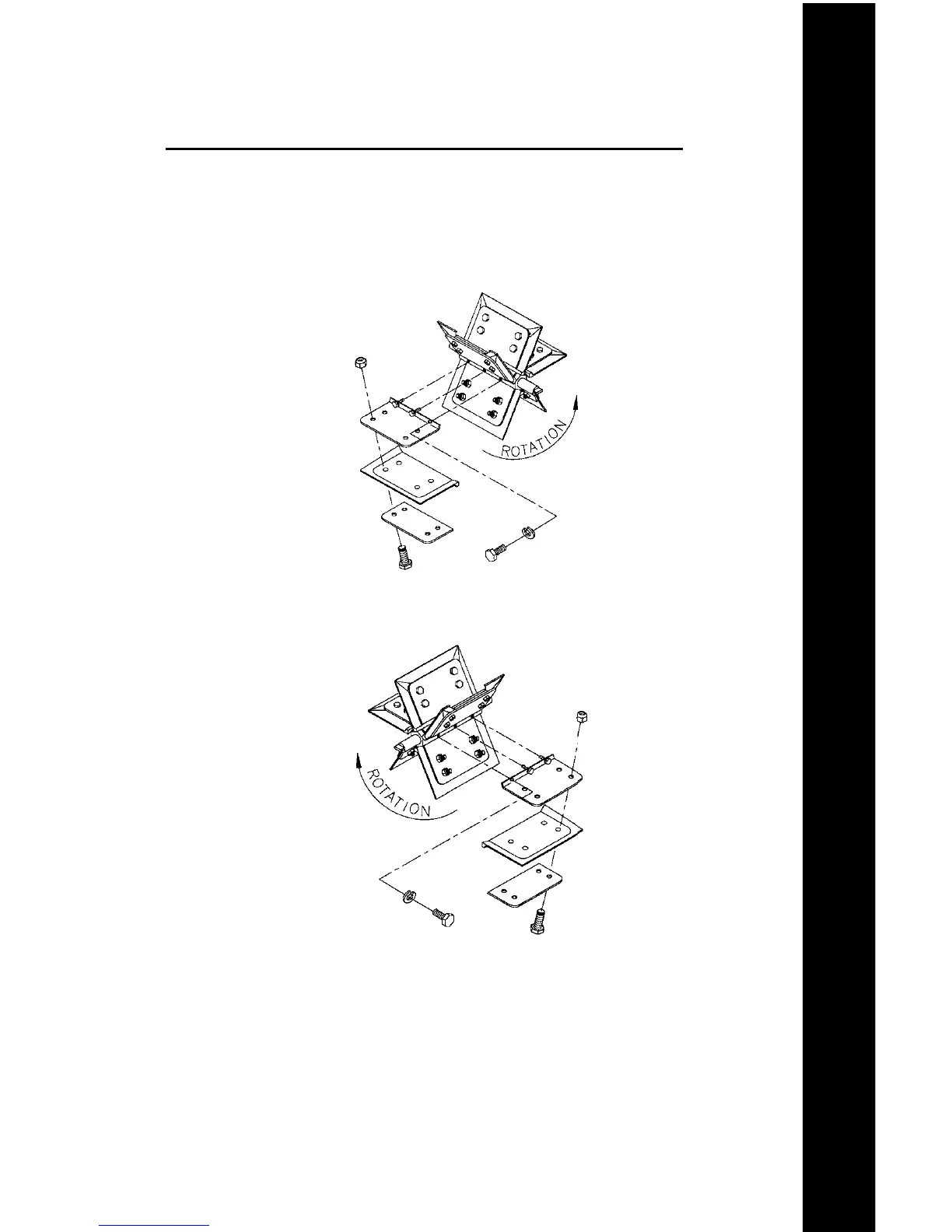

AIRLOCK ROTOR ROTATION:
Gearbox P/N 12007
rotates the airlock CCW (Counter Clockwise) See figure 1.
Figure 2
Gearbox P/N 12008 rotates the airlock CW (Clockwise) See figure 2.
REPLACING ROTOR PLATE
The rotor plates are designed to “give” if a foreign object comes in contact
with the airlock chamber, but they can be bent. Before replacement,
disconnect the machine from electrical power and remove all insulation
from the hopper. Check for proper rotation of airlock rotor.
For further information on gearbox, see page 24
Mfg from 12/02- Present
Figure 1
Mfg from 7/97- 12/02
