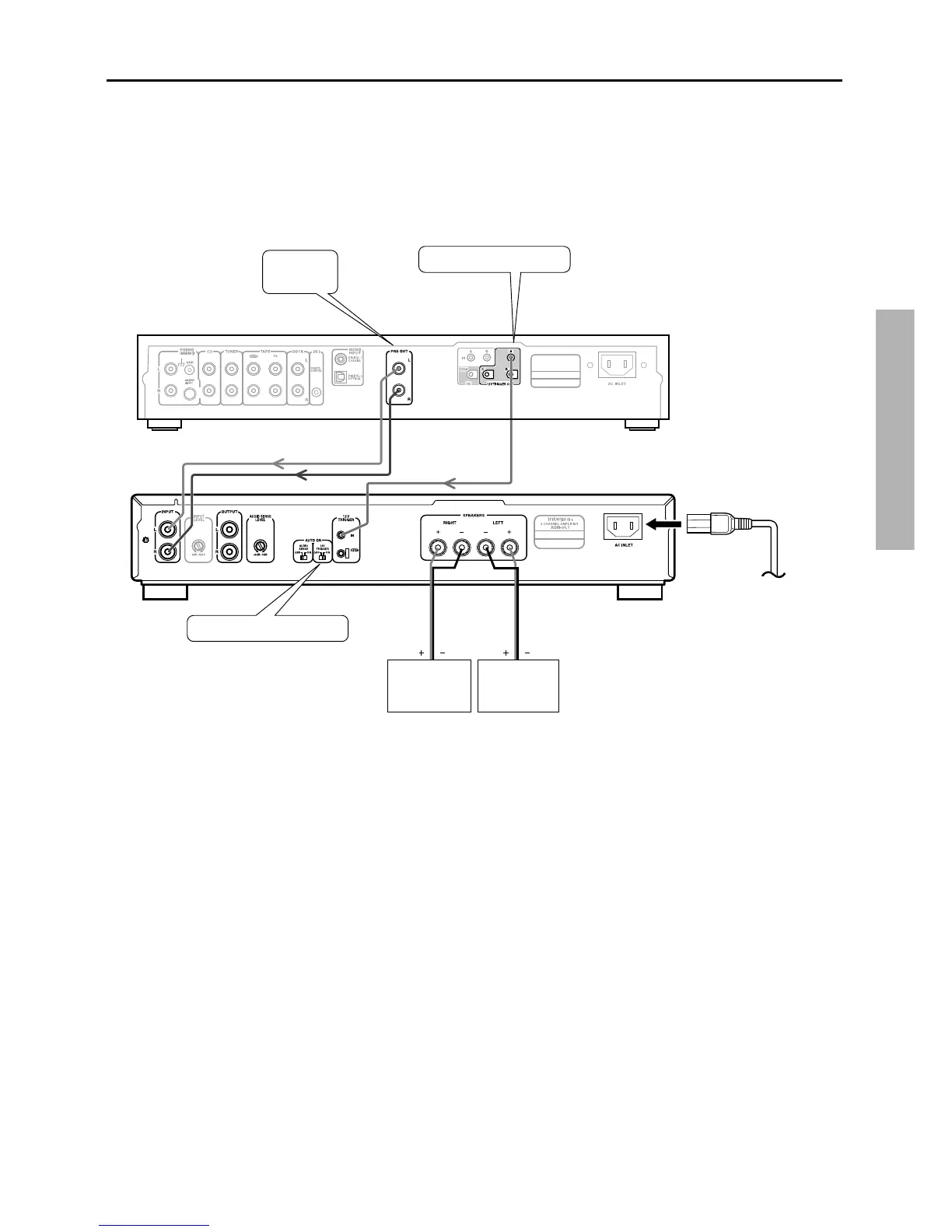

Connection diagram
Here is an explanation of how to connect the ADM-
30.1 to 2 channel control amplifier or preamplifier.
When connecting the ADM-30.1 to 2 channel control
amplifier or preamplifier, connect the INPUT jacks of
the ADM-30.1 to the PRE OUT jacks of the control
amplifier or preamplifier, and connect the front
speakers to the SPEAKERS terminals of the ADM-
30.1.
ADM-30.1
2 channel control amplifier or preamplifier
PRE OUT
jacks
12V TRIGGER OUT jack
Right
speaker
Left
speaker
Set the 12V TRIGGER ON.
To AC wall outlet
