5. CONNECTIONS

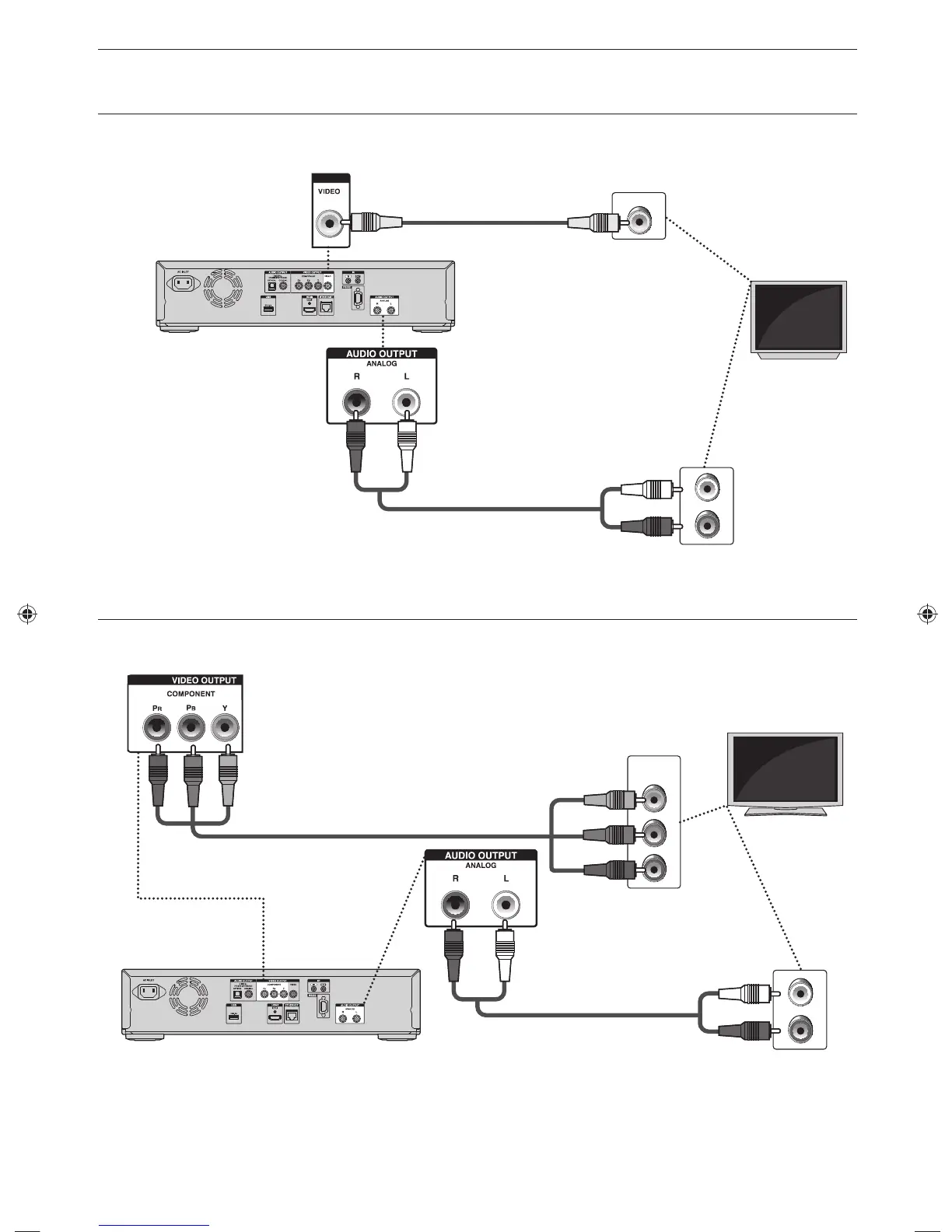

5.1 Standard Video + Standard Audio Connection
(Supports only 480i resolution.)
Your TV
Video cable (supplied)
Audio cable (supplied)
AUDIO IN
R
L
VIDEO IN
• Connect this unit directly to the TV. If the audio / video cables are connected to a VCR then the pictures may be
distorted due to the copyright protection system.
5.2 Component Video + Standard Audio Connection
(Supports up to 1080i
(*1)
resolution.)
COMPONENT
VIDEO IN
Y
PR/CR
PB/CB
AUDIO IN
R
L
Component video cable (not supplied)
Audio cable (supplied)
Your TV
(*1)
1080i : Outputs video data with a frame rate of 30 frames per second.
• When playing back a BD-video, video output is up to 480i resolution.
