Integra DRX-3.1 User Manual

19
4. Connect the Audio Component

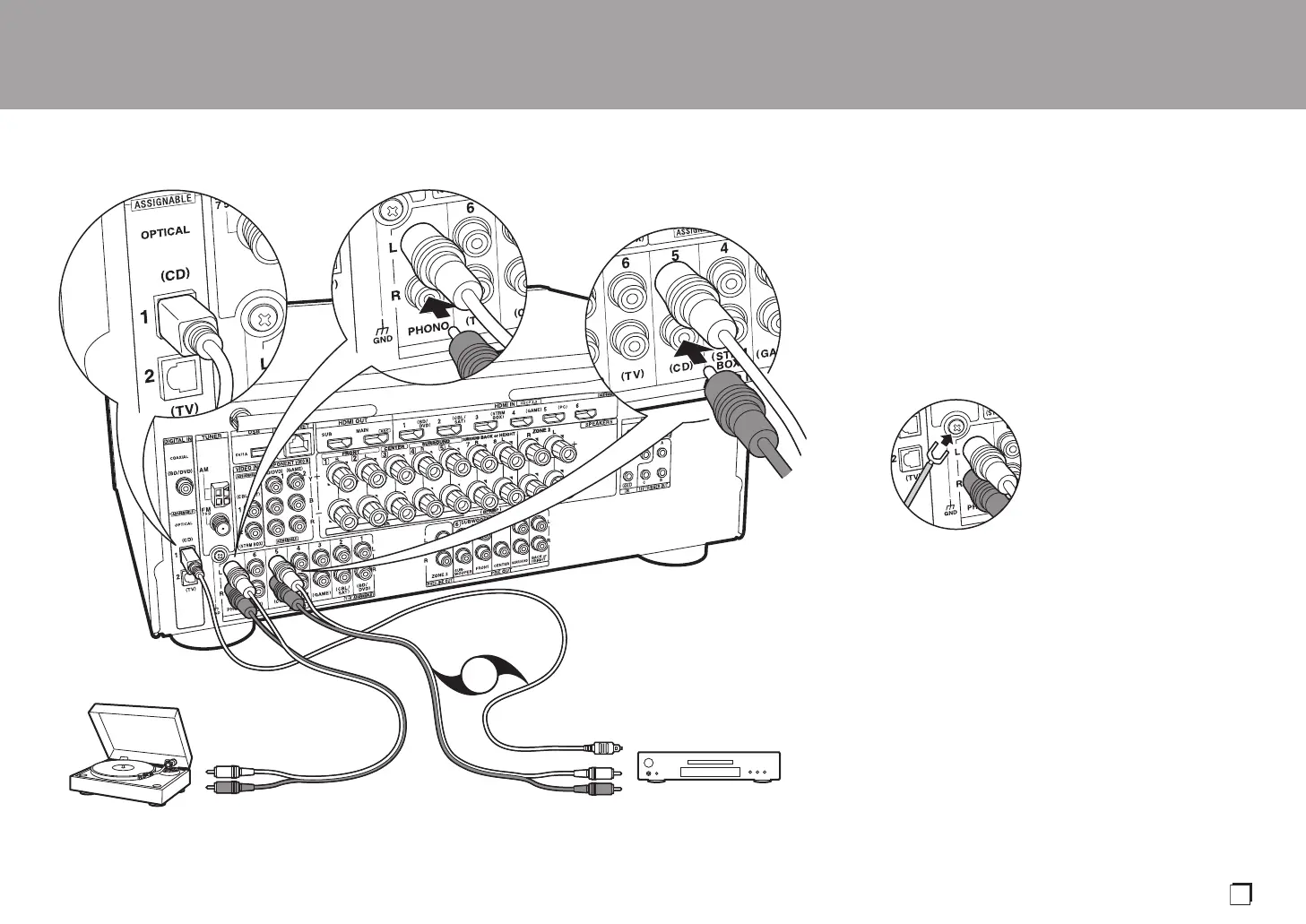

Example of a connection with an audio component.
Connect a CD player using a digital optical cable or analog
audio cable. You can also connect a turntable that has an
MM-type cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it to
another AUDIO IN jack. Further, if the turntable uses an
MC type cartridge, install an audio equalizer compatible
with the MC type cartridge between the unit and the
turntable, then connect to any AUDIO IN jack other than
the PHONO jack.
If the turntable has a ground wire,
connect it to the GND terminal of this unit.
> Before Start > Part Names >Install > Initial Setup > Playback
OR
CD
a
b
Turntable
a Digital optical cable, b Analog audio cable
En
SN29402823A_DRX-3.1_BAS_En_1711XX.book 19 ページ ２０１７年１０月２６日 木曜日 午後５時１９分
