5.1 Channel System + ZONE SPEAKER
ZONE 2
MAIN ROOM
12
45
3
6

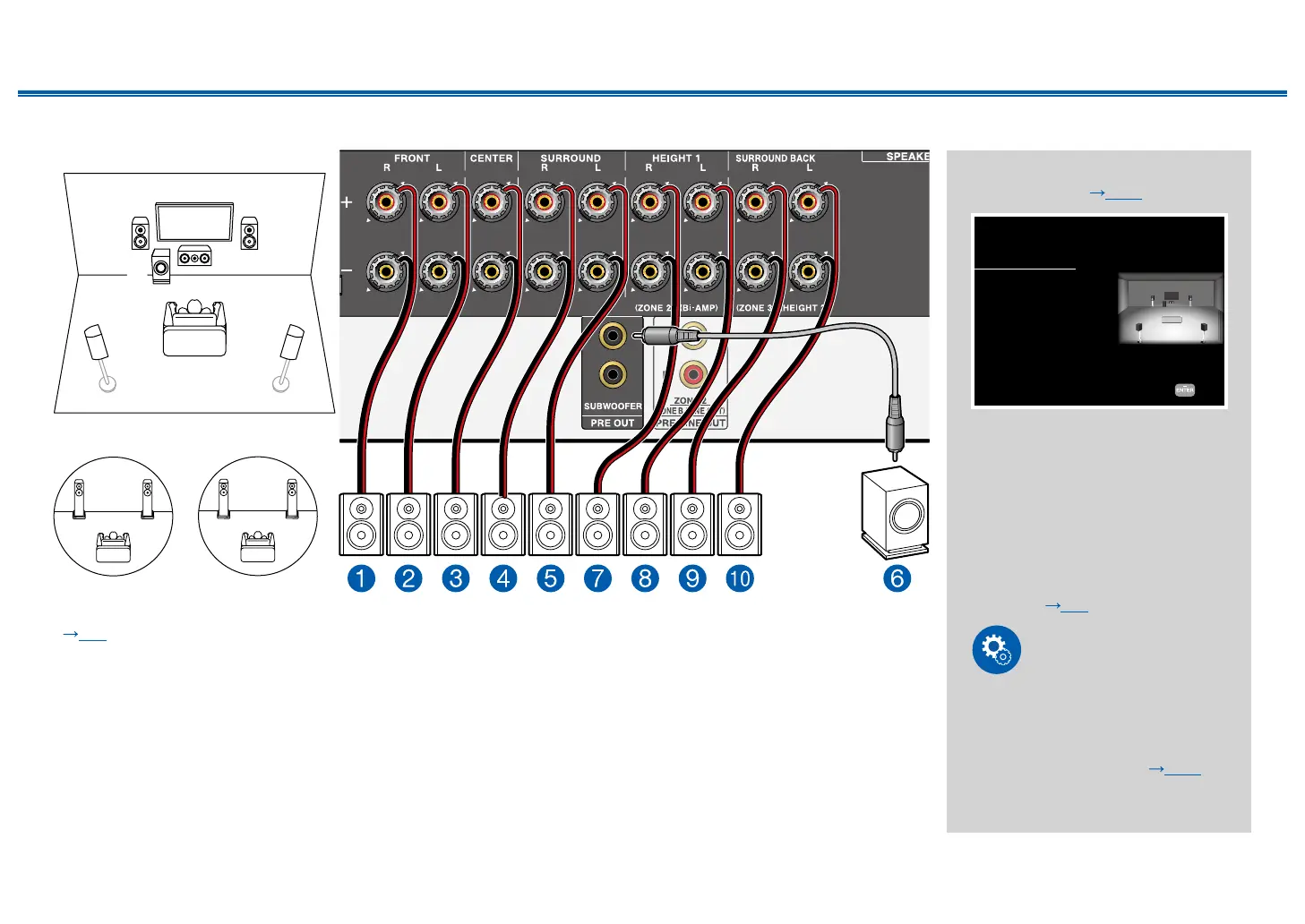

MAIN ROOM: This is a basic 5.1 Channel System. For details of the speaker layout, refer to "Speaker Installation"
( p18).
ZONE 2/ZONE 3: You can enjoy 2-ch audio in the separate room (ZONE 2/ZONE 3) while performing 5.1-ch playback in
the main room (where this unit is located). The same source can be played back in the main room and ZONE 2/ZONE 3
simultaneously. Also, dierent sources can be played back in both rooms.
To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note
that ZONE 3 output is not possible with the connection using a HDMI cable, digital coaxial cable, or digital optical cable.
"Speaker Setup" settings during
Initial Setup ( p163)
Speaker Setup
Select how many speakers you have.
Next
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Zone 2 Preout
Bi-Amp
Speaker Impedance
5.1 ch
< >
Yes
---
---
Zone 2
Zone 2
No
6ohms or above
• Speaker Channels: 5.1 ch
• Subwoofer: Yes
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: Zone 2 or
Zone 2/Zone 3
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Speaker Impedance: Set any
value ( p36)
Setup
When video and audio via HDMI
input are output to ZONE 2, set
"1. Input/ Output Assign" - "TV Out /
OSD" - "Zone 2 HDMI" ( p125)
to "Use" on the Setup menu.
