Speaker Connections

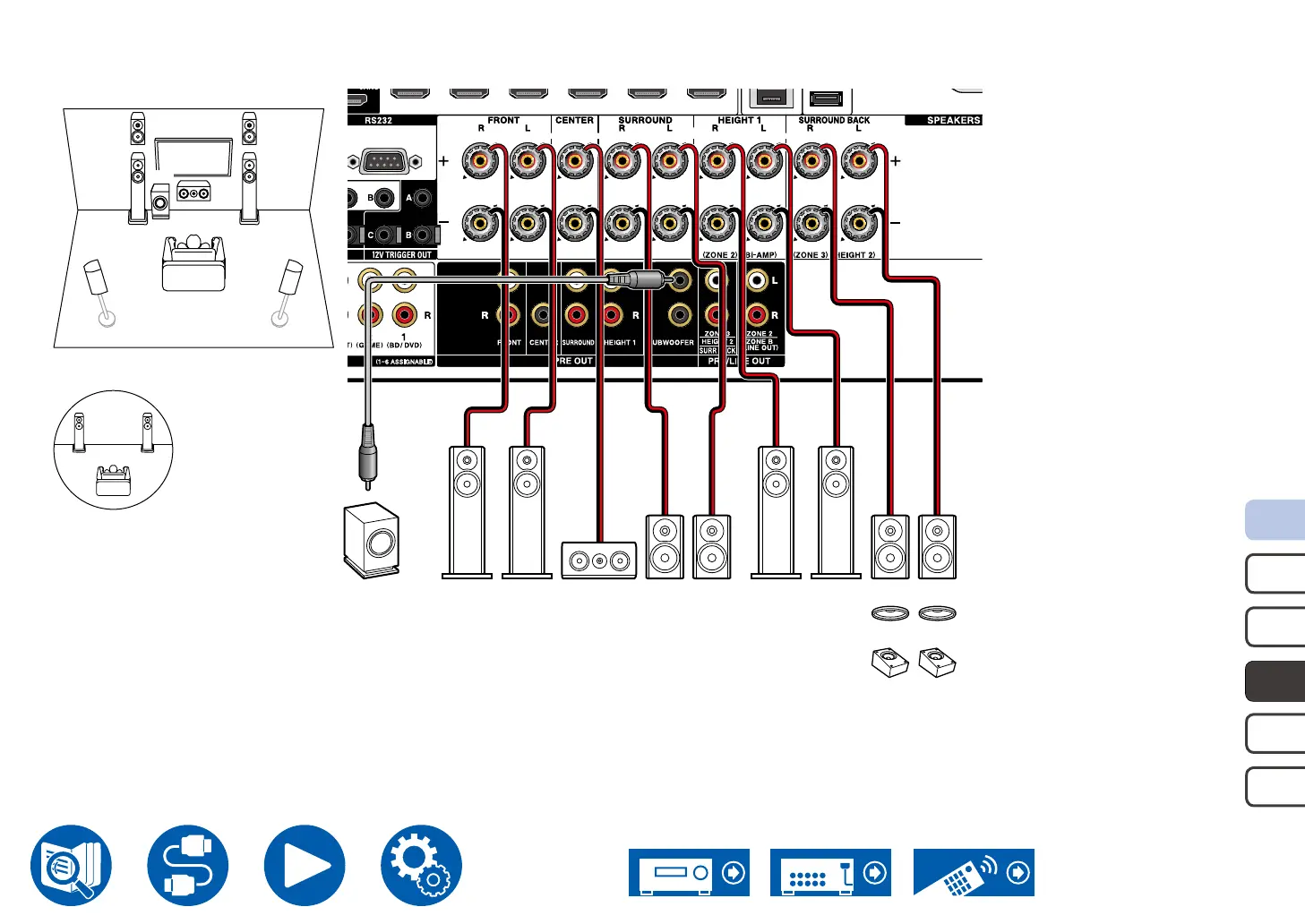

 5.1.2 Channel System + ZONE SPEAKER
FL FR
SL SR
C
SW
HL HR
SW FR FL C
SR SL
HR
OR
OR
HL
OR
OR
FR(Z2) FL(Z2)
Zone 2
FL(Z2)FR(Z2)
Main Room
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1
