Integra DRX-3.4 - Page 42

7.1. 2c h
5.1.4ch
5.1ch
7.1ch
5.1.2ch
42
Speaker Connections

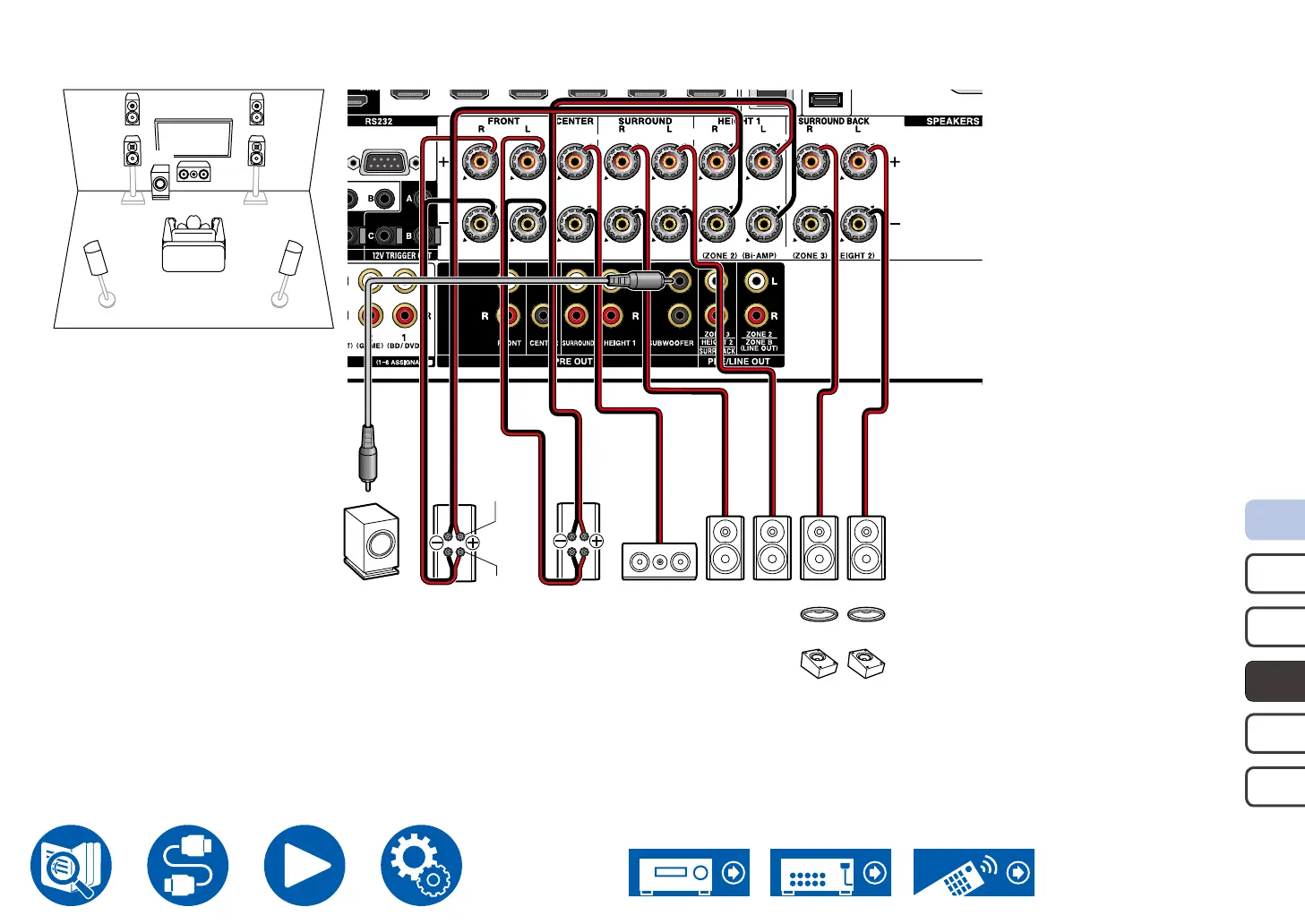

 5.1.2 Channel System (Bi-Amping the Speakers)
HL HR
C
SW
FL FR
SRSL
C
SR SL
FR
FL
For high-
frequency
For low-
frequency
SW
HR
OR
OR
HL
OR
OR
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1
