Intek M-490 Plus - Page 10

Model No: 3390 Drawring No:
Customer :
Title
M-490 Plus
Rev,Date:
4
TX power level
adjustment
Volume : optional
Squelch : optional
CH : selector : 1
CH9 : OFF
Connect dummy load
and oscilloscope through
Coupler to RF
powermeter connect
audio generator to
microphone jack
(Figure 6).
RV202 Adjust until the 5
th
bar
appears on the
channel display LCD.

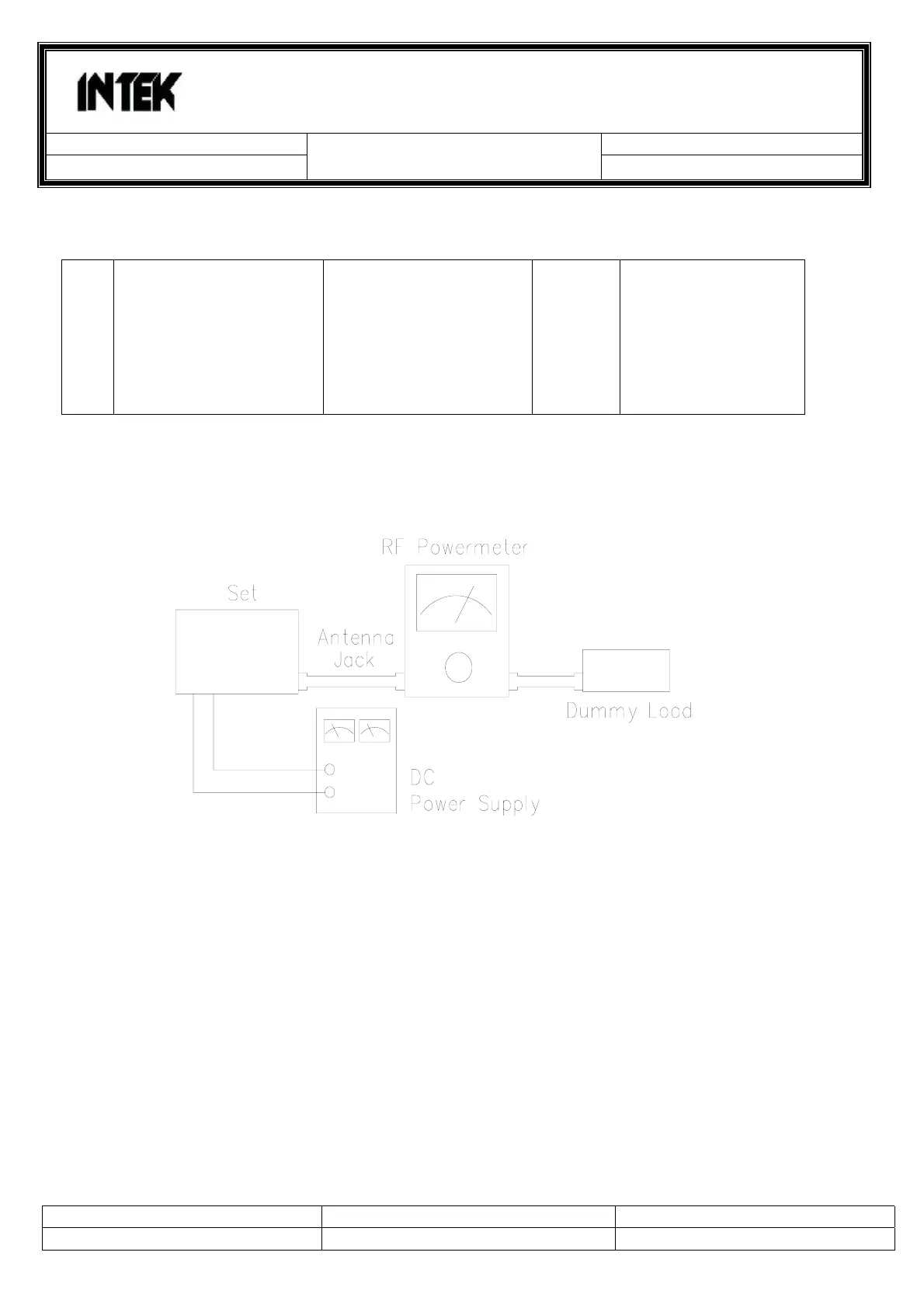

Figure 3
Created by: Approved by: Rev.No:
For Stage: Release Date: Page: 10 / 61
