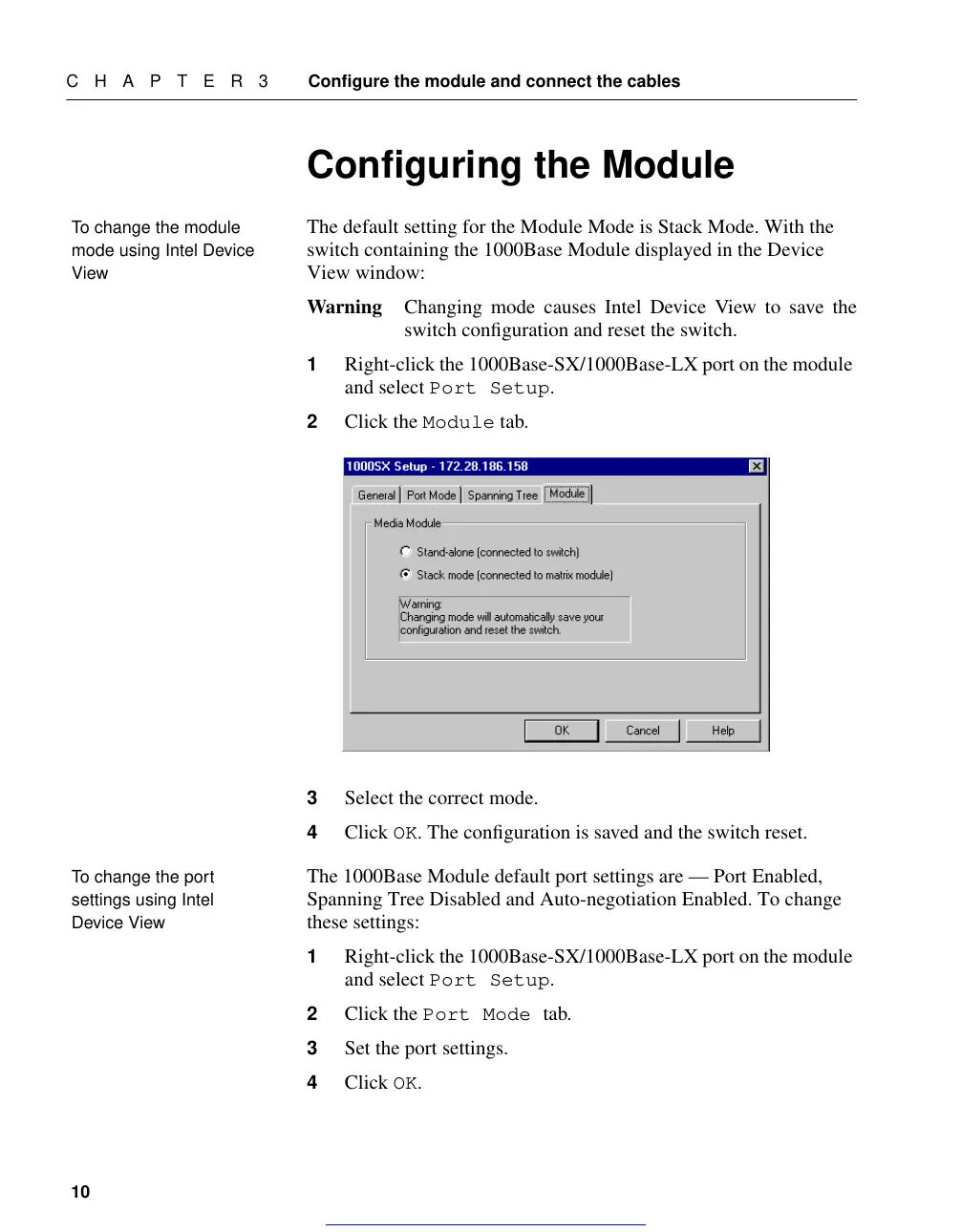

C H A P T E R 3 Configure the module and connect the cables
10
Configuring the Module
To change the module
mode using Intel Device
View
The default setting for the Module Mode is Stack Mode. With the
switch containing the 1000Base Module displayed in the Device
View window:
Warning Changing mode causes Intel Device View to save the
switch configuration and reset the switch.
1 Right-click the 1000Base-SX/1000Base-LX port on the module
and select Port Setup.
2 Click the Module tab.
3 Select the correct mode.
4 Click OK. The configuration is saved and the switch reset.
To change the port
settings using Intel
Device View
The 1000Base Module default port settings are — Port Enabled,
Spanning Tree Disabled and Auto-negotiation Enabled. To change
these settings:
1 Right-click the 1000Base-SX/1000Base-LX port on the module
and select Port Setup.
2 Click the Port Mode tab.
3 Set the port settings.
4 Click OK.
