C H A P T E R 3 Configure the module and connect the cables
12

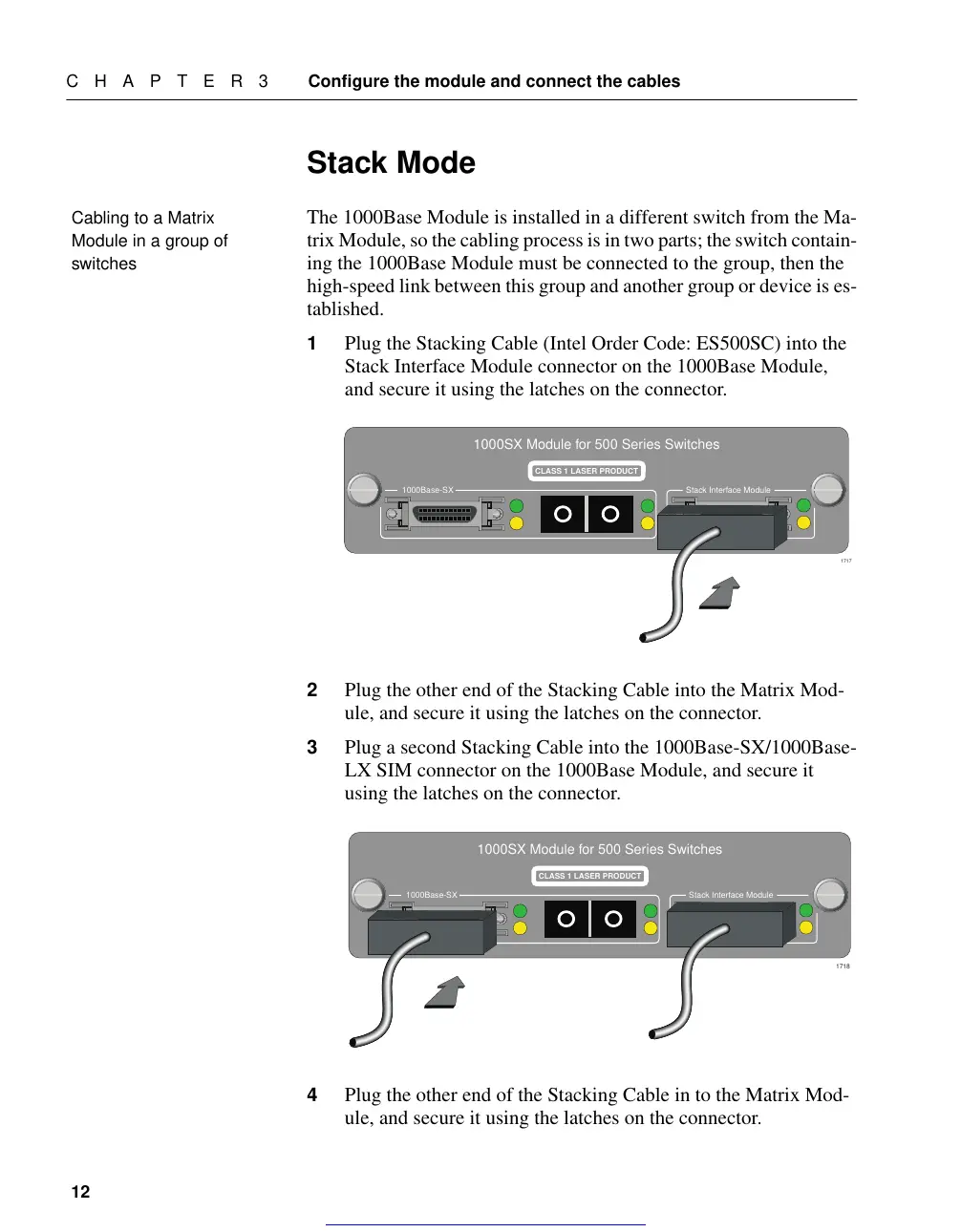

Stack Mode
Cabling to a Matrix
Module in a group of
switches
The 1000Base Module is installed in a different switch from the Ma-
trix Module, so the cabling process is in two parts; the switch contain-
ing the 1000Base Module must be connected to the group, then the
high-speed link between this group and another group or device is es-
tablished.
1 Plug the Stacking Cable (Intel Order Code: ES500SC) into the
Stack Interface Module connector on the 1000Base Module,
and secure it using the latches on the connector.
2 Plug the other end of the Stacking Cable into the Matrix Mod-
ule, and secure it using the latches on the connector.
3 Plug a second Stacking Cable into the 1000Base-SX/1000Base-
LX SIM connector on the 1000Base Module, and secure it
using the latches on the connector.
4 Plug the other end of the Stacking Cable in to the Matrix Mod-
ule, and secure it using the latches on the connector.
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
1000SX Module for 500 Series Switches
1717
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
1000SX Module for 500 Series Switches
1718
