13

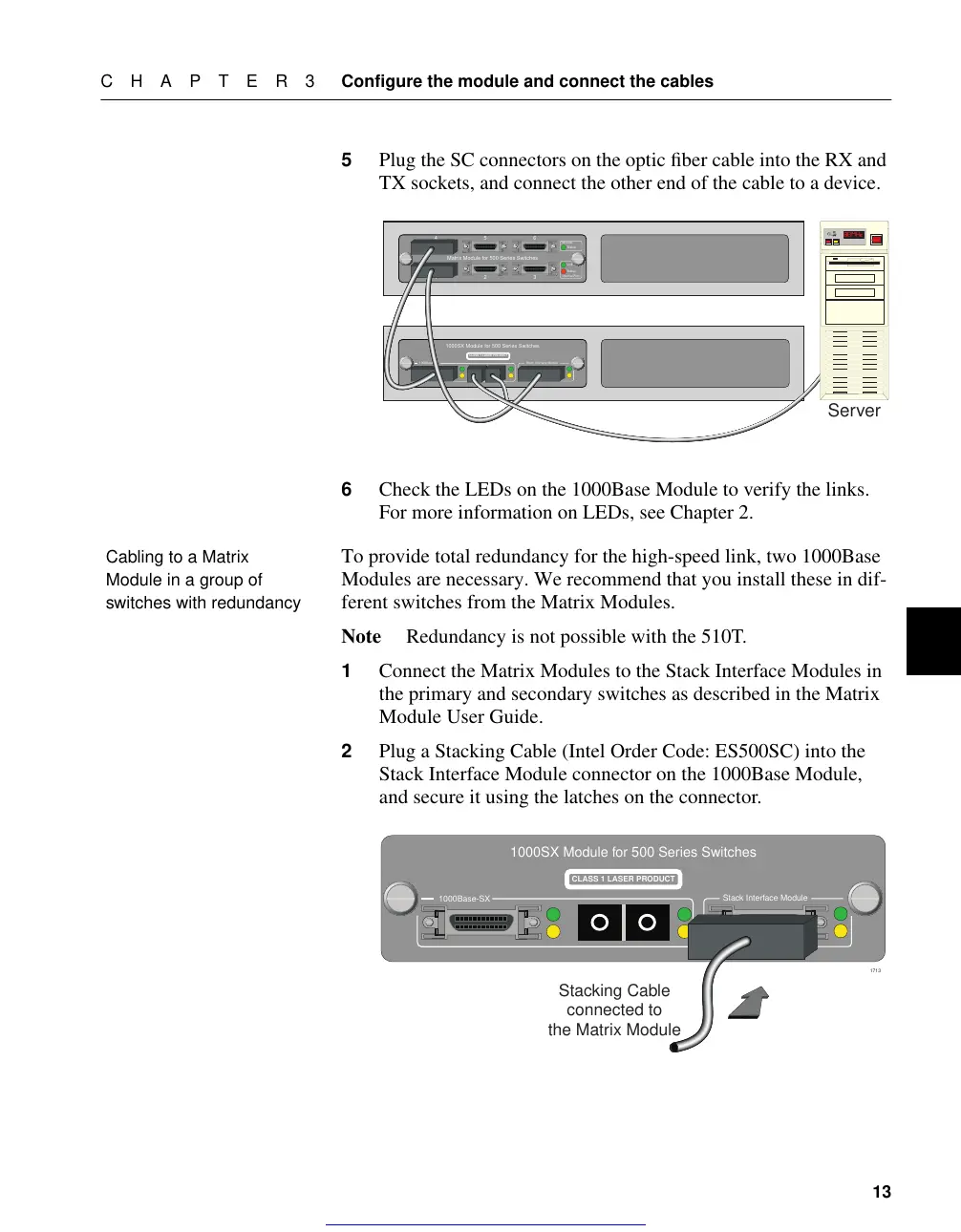

C H A P T E R 3 Configure the module and connect the cables
5 Plug the SC connectors on the optic fiber cable into the RX and
TX sockets, and connect the other end of the cable to a device.
6 Check the LEDs on the 1000Base Module to verify the links.
For more information on LEDs, see Chapter 2.
Cabling to a Matrix
Module in a group of
switches with redundancy
To provide total redundancy for the high-speed link, two 1000Base
Modules are necessary. We recommend that you install these in dif-
ferent switches from the Matrix Modules.
Note Redundancy is not possible with the 510T.
1 Connect the Matrix Modules to the Stack Interface Modules in
the primary and secondary switches as described in the Matrix
Module User Guide.
2 Plug a Stacking Cable (Intel Order Code: ES500SC) into the
Stack Interface Module connector on the 1000Base Module,
and secure it using the latches on the connector.
Matrix Module for 500 Series Switches
4
1
5
2
6
3
Module
Status
Link
Status
Internal Port
1000SX Module for 500 Series Switches
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
Server
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
1000SX Module for 500 Series Switches
1713
Stacking Cable
connected to
the Matrix Module
