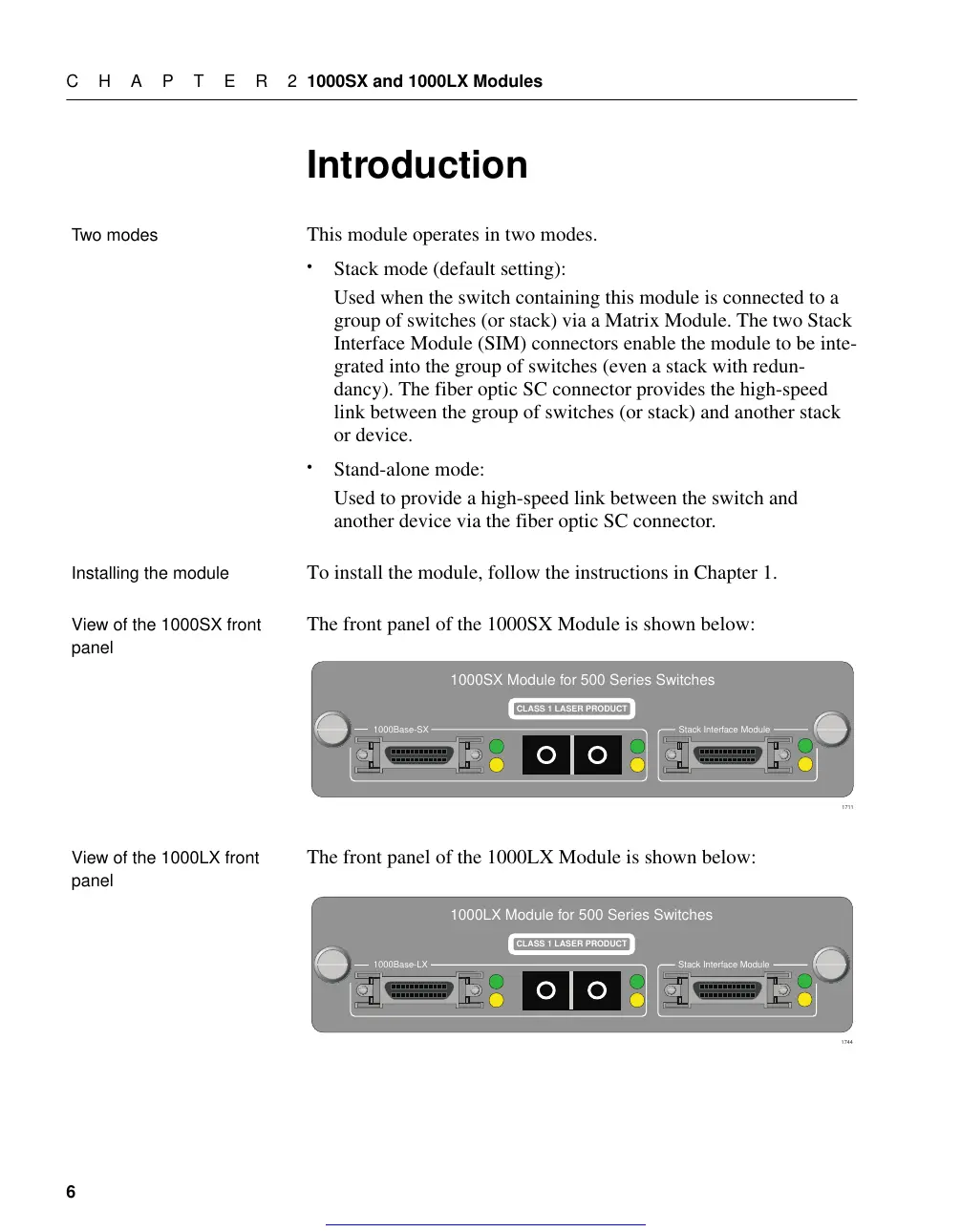

C H A P T E R 21000SX and 1000LX Modules
6
Introduction
Two modes This module operates in two modes.
•
Stack mode (default setting):
Used when the switch containing this module is connected to a
group of switches (or stack) via a Matrix Module. The two Stack
Interface Module (SIM) connectors enable the module to be inte-
grated into the group of switches (even a stack with redun-
dancy). The fiber optic SC connector provides the high-speed
link between the group of switches (or stack) and another stack
or device.
•
Stand-alone mode:
Used to provide a high-speed link between the switch and
another device via the fiber optic SC connector.
Installing the module To install the module, follow the instructions in Chapter 1.
View of the 1000SX front
panel
The front panel of the 1000SX Module is shown below:
View of the 1000LX front
panel
The front panel of the 1000LX Module is shown below:
1711
1000Base-SX
Stack Interface Module
CLASS 1 LASER PRODUCT
1000SX Module for 500 Series Switches
1744
1000Base-LX
Stack Interface Module
CLASS 1 LASER PRODUCT
1000LX Module for 500 Series Switches
