3
1-2 Specification
Spec Description
Design
∗ ATX form factor 4 layers PCB size: 30.5x20.0cm
Chipset
∗ Intel P31 Express Chipset
∗ Intel 82801GBchipset

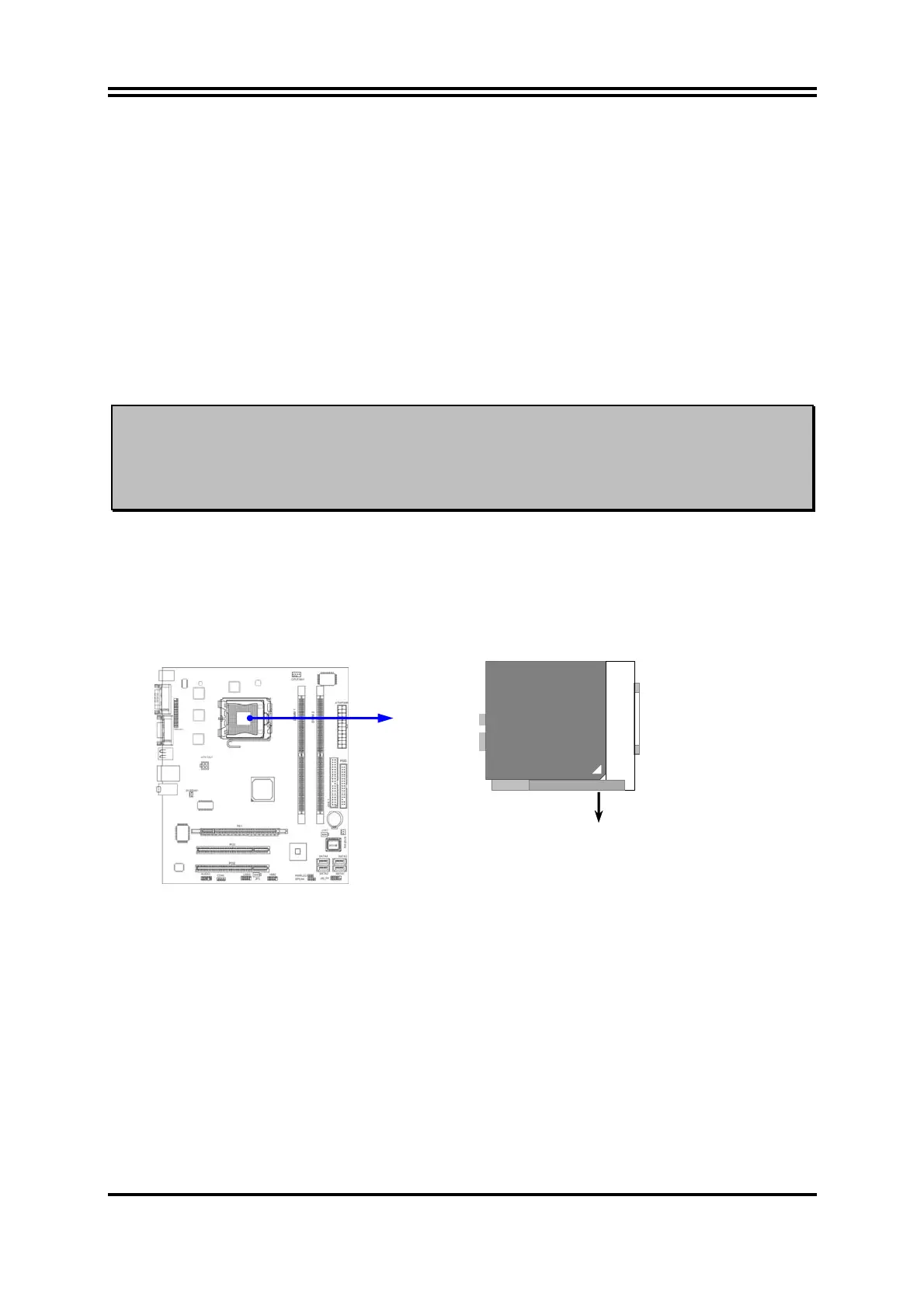

CPU Socket
LGA775
∗ Support Intel Pentium 4, Celeron
FSB 800/1066/1333 MHZ
,
Pentium D, Core 2 Duo and Core 2 Quad 775-Land LGA
Package utilizes Flip-Chip Land Grid Array (FCLGA) package
processor
∗ Support FSB Frequency 800 / 1066/1333MHz
Memory Socket
∗ DDR2 Module socket x 2
∗ Support 2 pcs DDR2 667 /DDR2 800MHz DDR2 modules
expandable to 4GB.
∗ Support Dual channel function
Expansion Slot
∗ PCI-Express x16 slot 1pcs
∗ PCI-Express x1 slot 1pcs delivers up to 512MB/s concurrent
bandwidth
∗ 32-bit PCI slot x 3pcs
Integrate IDE and
Serial ATA2 RAID
∗ The Intel ICH7 supports one PCI-E controller that supports PCI
Bus Mastering, ATA PIO/DMA and the ULTRA DMA 66 / 100
functions that deliver the data transfer rate up to 100 MB/s for 2
IDE Devices; four Serial ATA ports provide 3.0 Gb /sec data
transfer rate for four serial ATA devices.
Gigabit LAN
∗ Integrated RealTek 8111C PCI –E Gigabit LAN function.
∗ Supports Fast Ethernet LAN function provide 10Mb/100Mb/
1Gb /s data transfer rate.
8CH-Audio
∗ Realtek ALC662 6-channel HD Audio Codec integrated
∗ Audio driver and utility included
BIOS
∗ Award 8MB SPI Flash ROM
Multi I/O
∗ PS/2 keyboard and PS/2 mouse connectors
∗ USB2.0 port x 4 and header x1
∗ RJ45 LAN connector x1
∗ Floppy disk driver connector x1/Hard disk driver connector x1
∗ Coaxial SPDIF_Out connector x1
∗ Serial Port connector x1
∗ Parallel header x1
∗ Audio connectorx1 (Line-in, Line-out, MIC/ 6CH Audio)
∗ HDMI-SPDIF header x1
∗ WI-FI header x1
