2-2 Install Memory
This motherboard provides two 240-pin DDR2 DUAL INLINE MEMORY MODULES
(DIMM) socket for DDR2 memory expansion available from minimum memory volume of
128MB to maximum memory volume of
2
.0GB DDR2 SDRAM.
Valid Memory Configurations
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DIMM1) DDR2 400/ 533 DDR DRAM Module X1
128MB∼1.0GB
Bank 2, 3 (DIMM2) DDR2 400/ 533 DDR DRAM Module X1
128MB∼1.0GB
Total Memory (Max.2.0GB)
2
128MB∼2.0GB
Recommend DIMM Module Combination
1. One DIMM Module ----Plug in DIMM1
2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function
For Dual channel Limited!
3. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1 &
DIMM2
4. DIMM1 & DIMM2 must be the same type, same size, same frequency for dual channel
function.

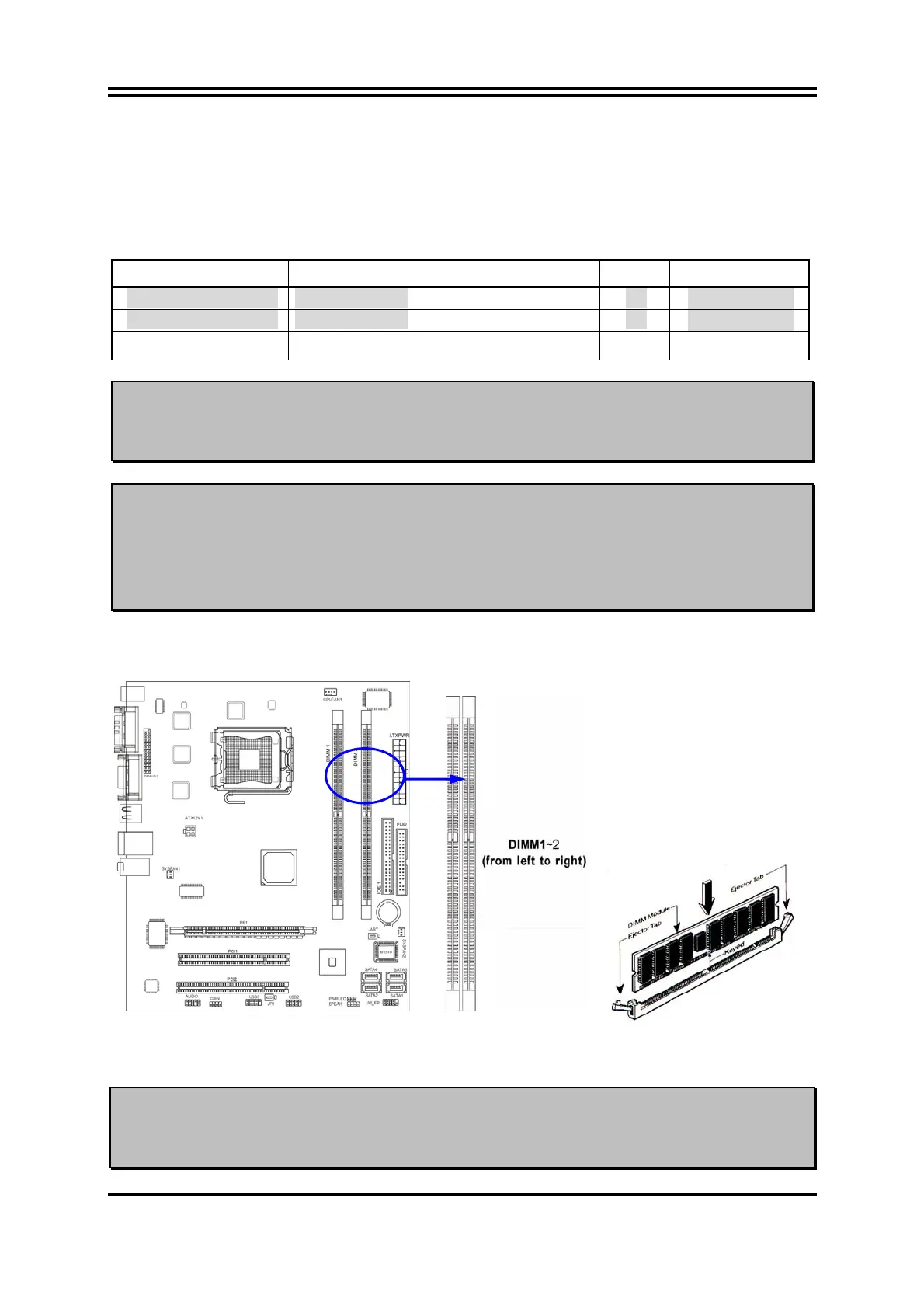

Install DDR2 SDRAM modules to your motherboard is not difficult, you can refer to figure
below to see how to install a 240-Pin DDR2 400/DDR2 533 SDRAM module.
NOTE!
When you install DIMM module fully into the DIMM socket the eject tab
should be locked into the DIMM module very firmly and fit into its
indention on both sides.
