2.2.1 Back Panel Connectors
Figure 10 shows the location of the back panel connectors.
Item Description
A VGA port
B DVI-D port
C IEEE-1394a
D USB ports [2]
E USB ports [2]
F LAN
G USB ports [2]
H Audio line in
I Mic in
J Audio line out

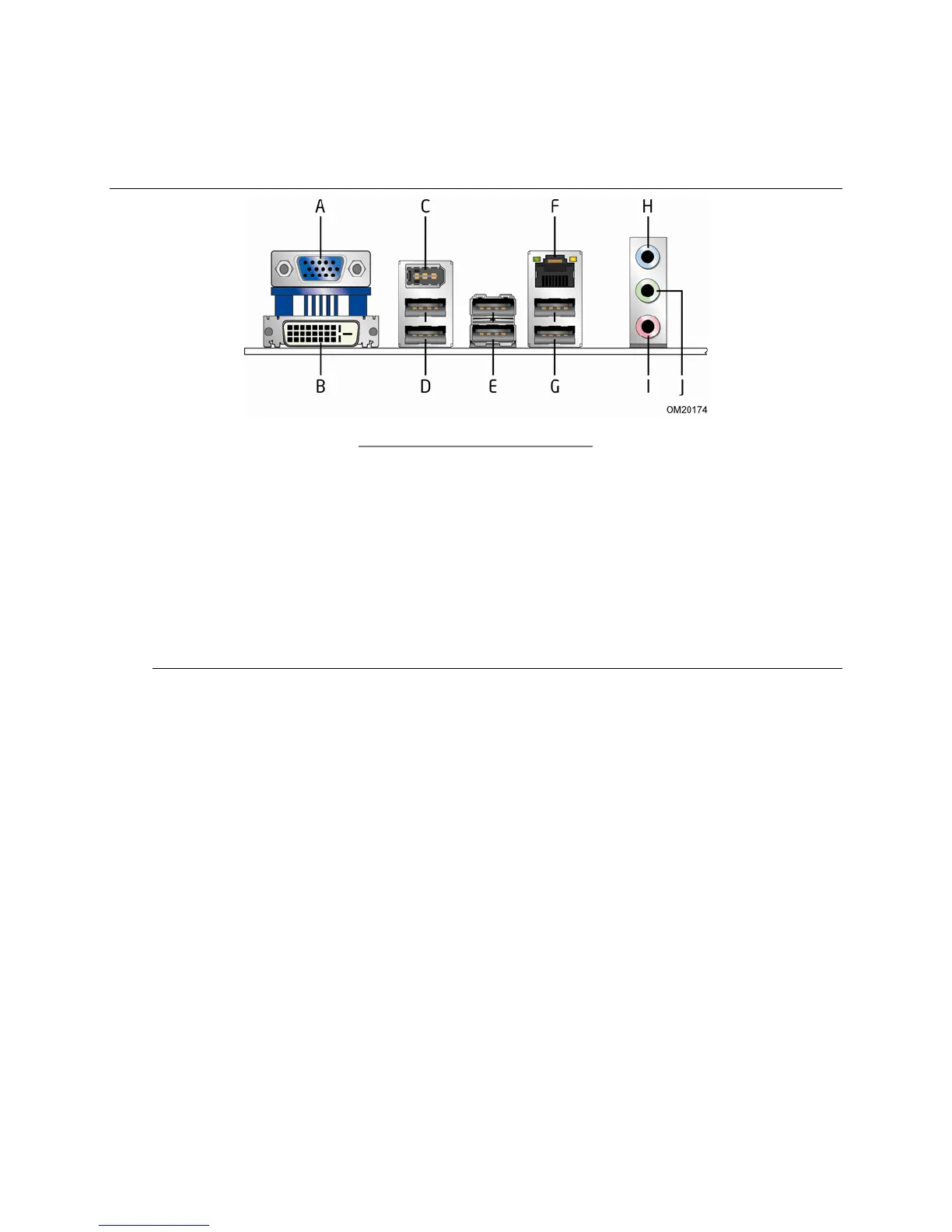

Figure 10. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
