Intel Desktop Board DP67BG Product Guide
12
Desktop Board Components

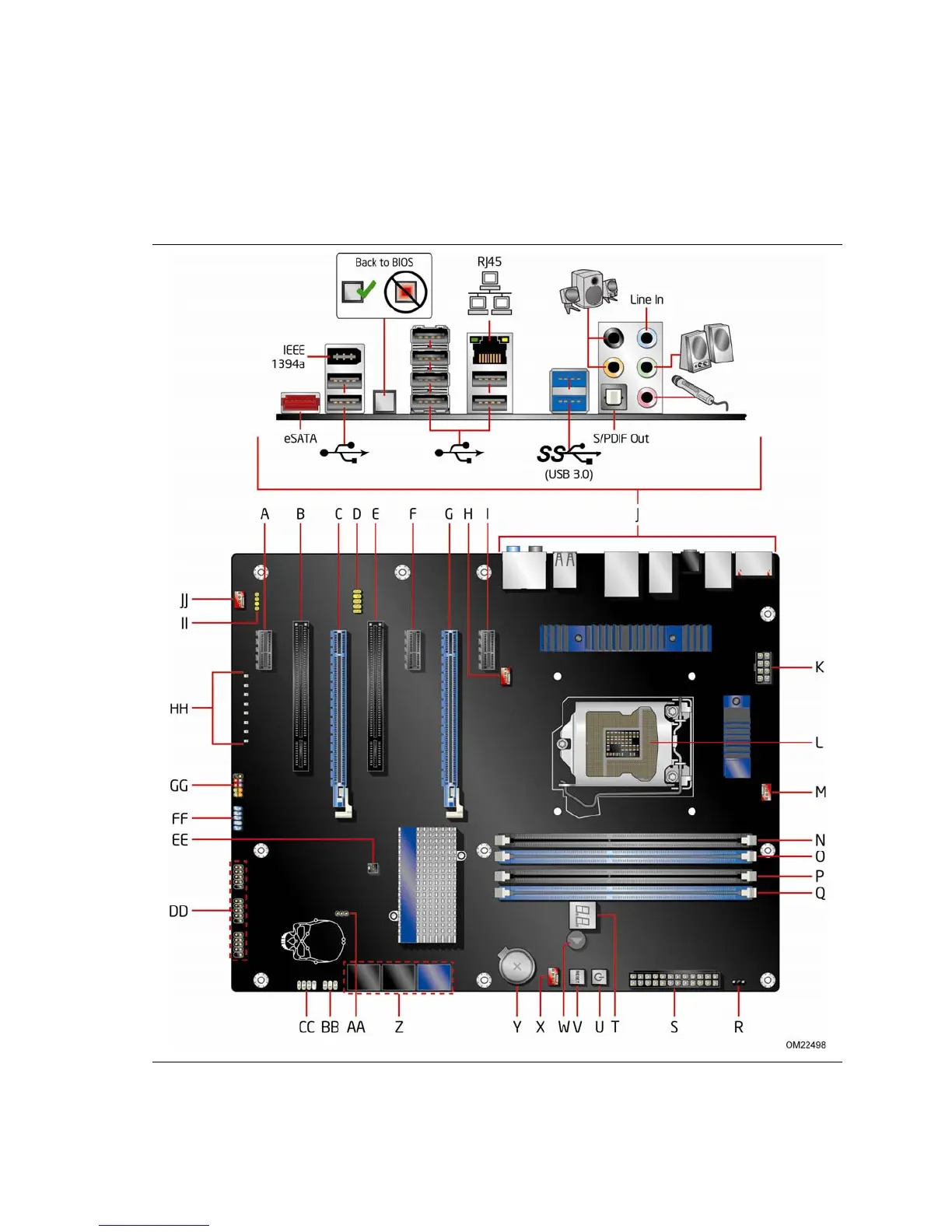

Figure 1 shows the approximate location of the major components on Intel Desktop
Board DP67BG.
Figure 1. Intel Desktop Board DP67BG Components
