Installing and Removing System Memory
Desktop board DP67BG has four 240-pin DDR3 DIMM sockets arranged in two
channels (A and B).
Guidelines for Dual Channel Memory Configuration
Before installing DIMMs, read and follow these guidelines for dual channel memory
configuration.
Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 15) in the blue
socket of channel A (DIMM 1) and channel B (DIMM 2).

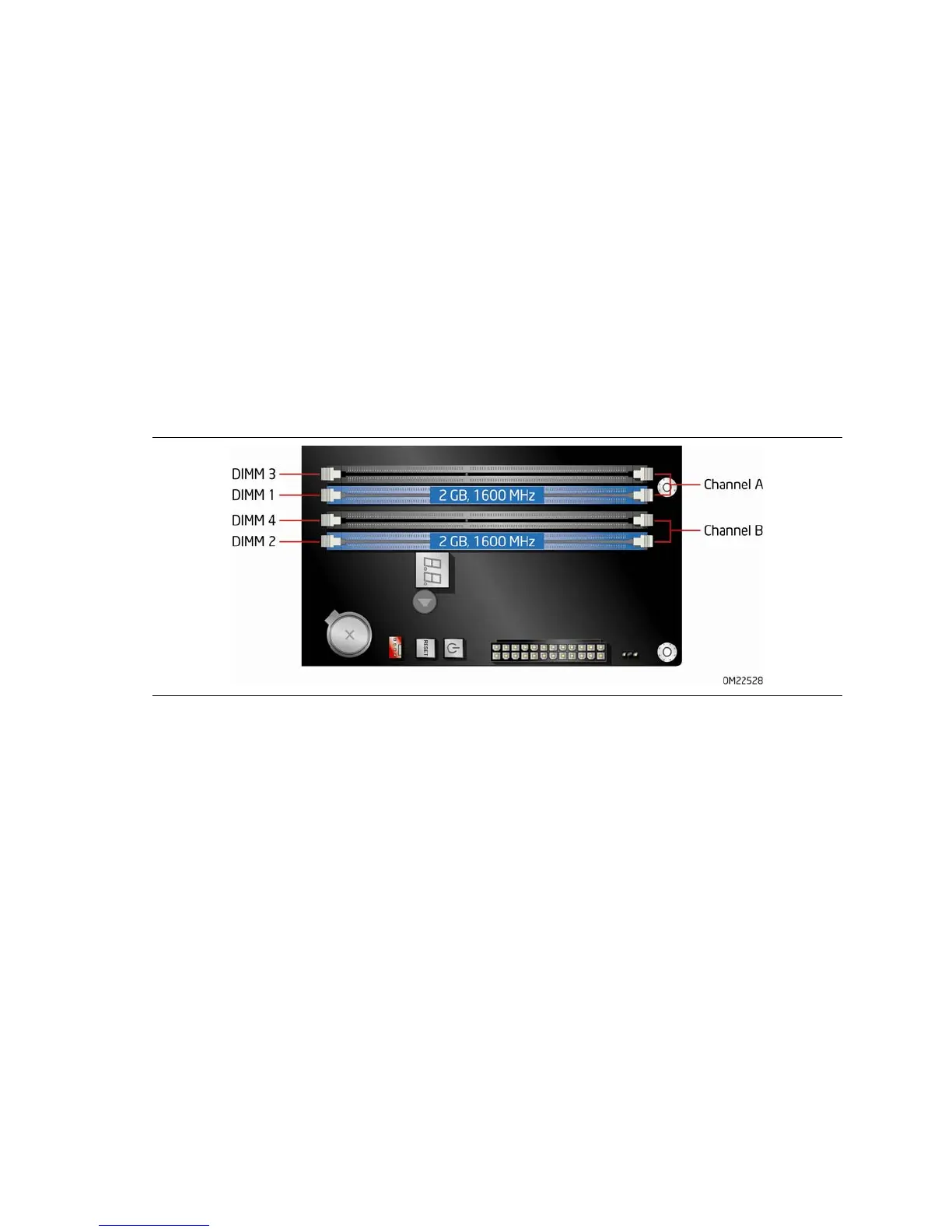

Figure 15. Example Dual Channel Memory Configuration with Two DIMMs
If additional memory is to be used, install another matched pair of DIMMs (see
Figure 16) in the black socket of channel A (DIMM 3) and channel B (DIMM 4).
