Connecting Power Supply Cables
Figure 27 shows the location of the power connectors.
CAUTION
Failure to use an appropriate power supply and/or not connecting the 12 V
(Figure 27, A) power connector to the Desktop Board
may result in damage to the
board or the system may not function properly.
The 2 x 12 pin main power connector (Figure 27, C) is backwards compatible with
ATX12V power sup
plies with 2 x 10 connectors.

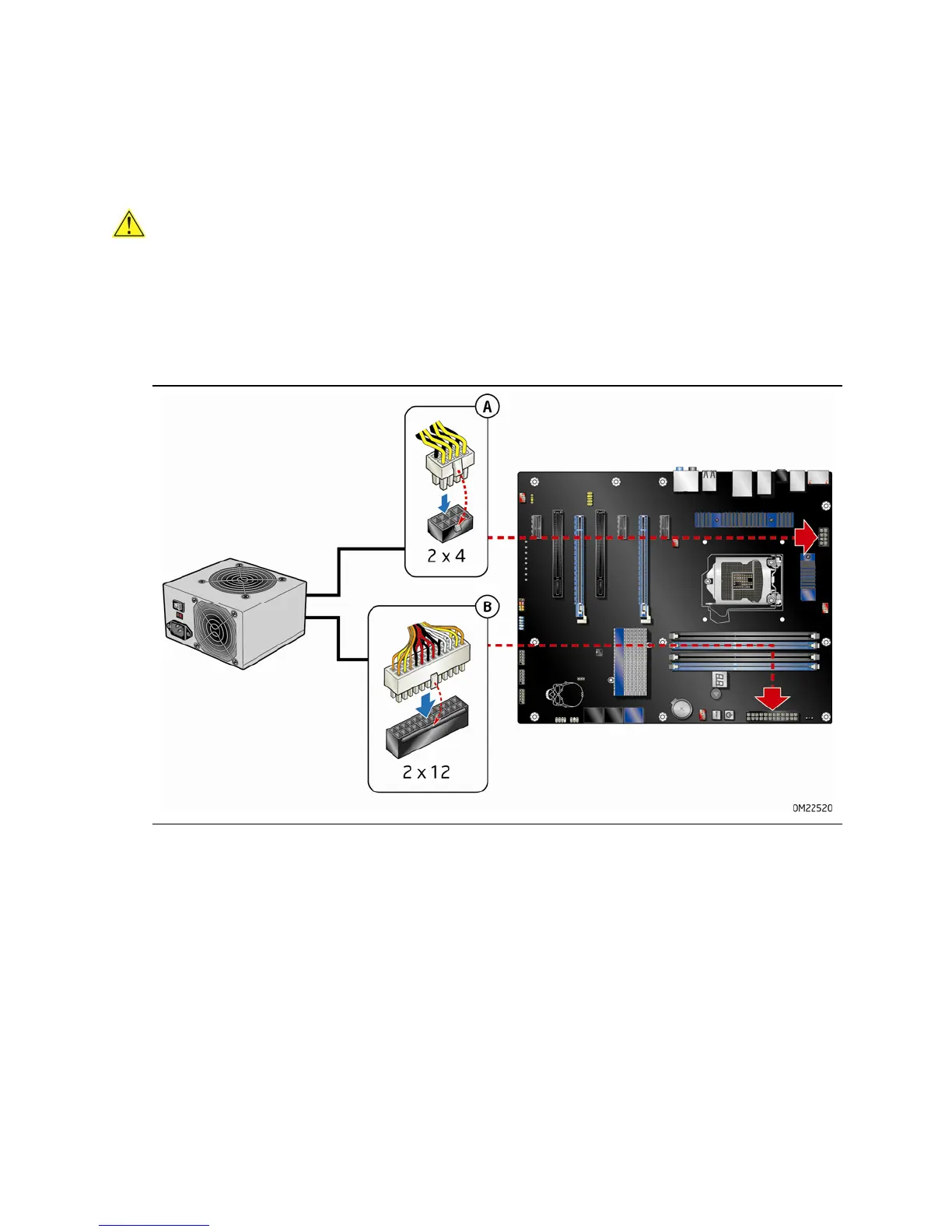

Figure 27. Connecting Power Supply Cables
