1.1.2 Board Layout

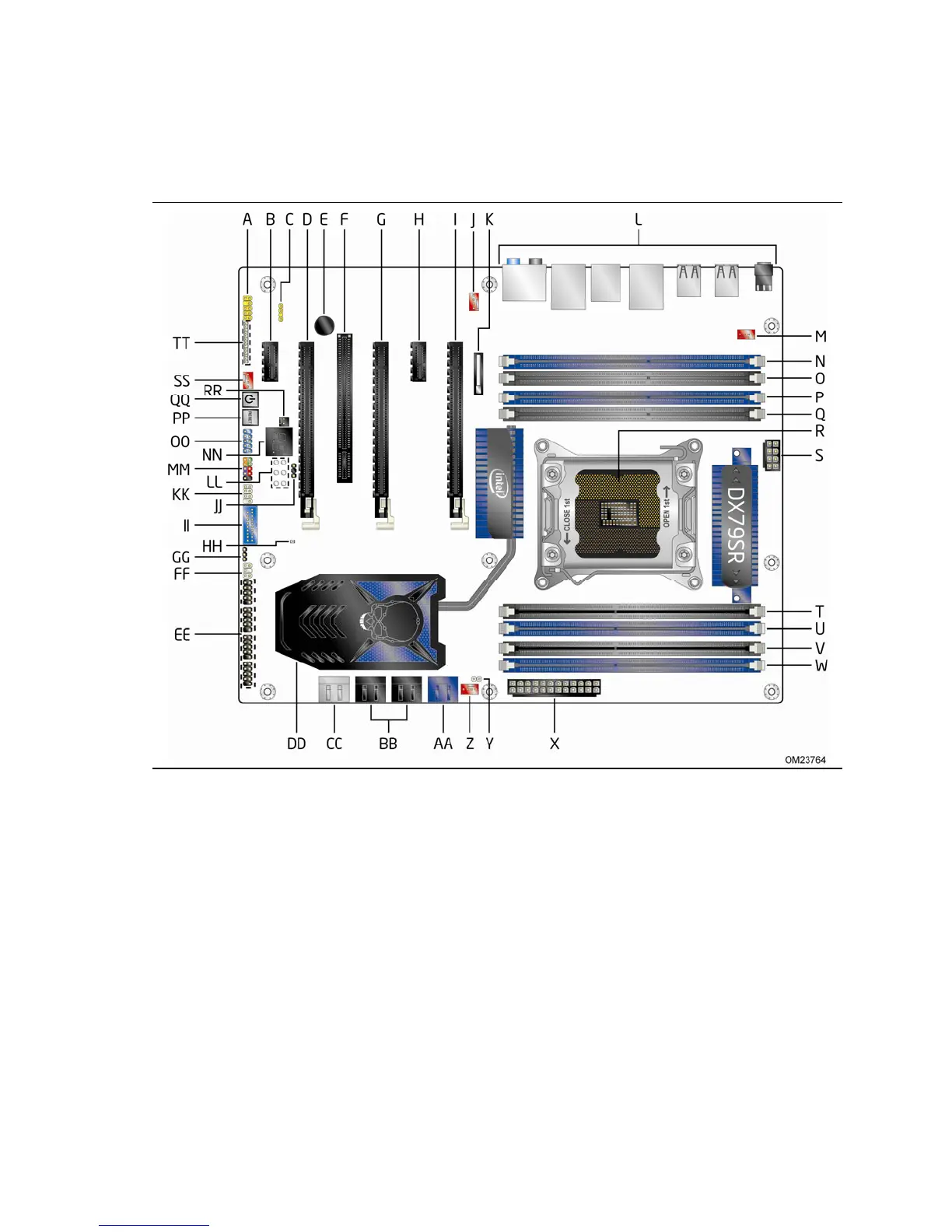

Figure 1 shows the location of the major components on Intel Desktop Board DX79SR.
Figure 1. Major Board Components
Table 2 lists the components identified in Figure 1.
