Intel Desktop Board DX79SR Technical Product Specification
46
2.2.1 Back Panel Connectors
Figure 11 shows the location of the back panel connectors for the board.
Item Description
A Back to BIOS button
B USB 3.0 ports
C USB 3.0 ports
D LAN connector
E USB 2.0 ports
F IEEE 1394a connector
G USB 2.0 ports
H LAN connector
I USB 2.0 ports
J Rear surround
K Center channel and LFE (subwoofer)
L S/PDIF digital audio out (optical)
M Line in
N Line out/front speakers
O Mic in/side surround

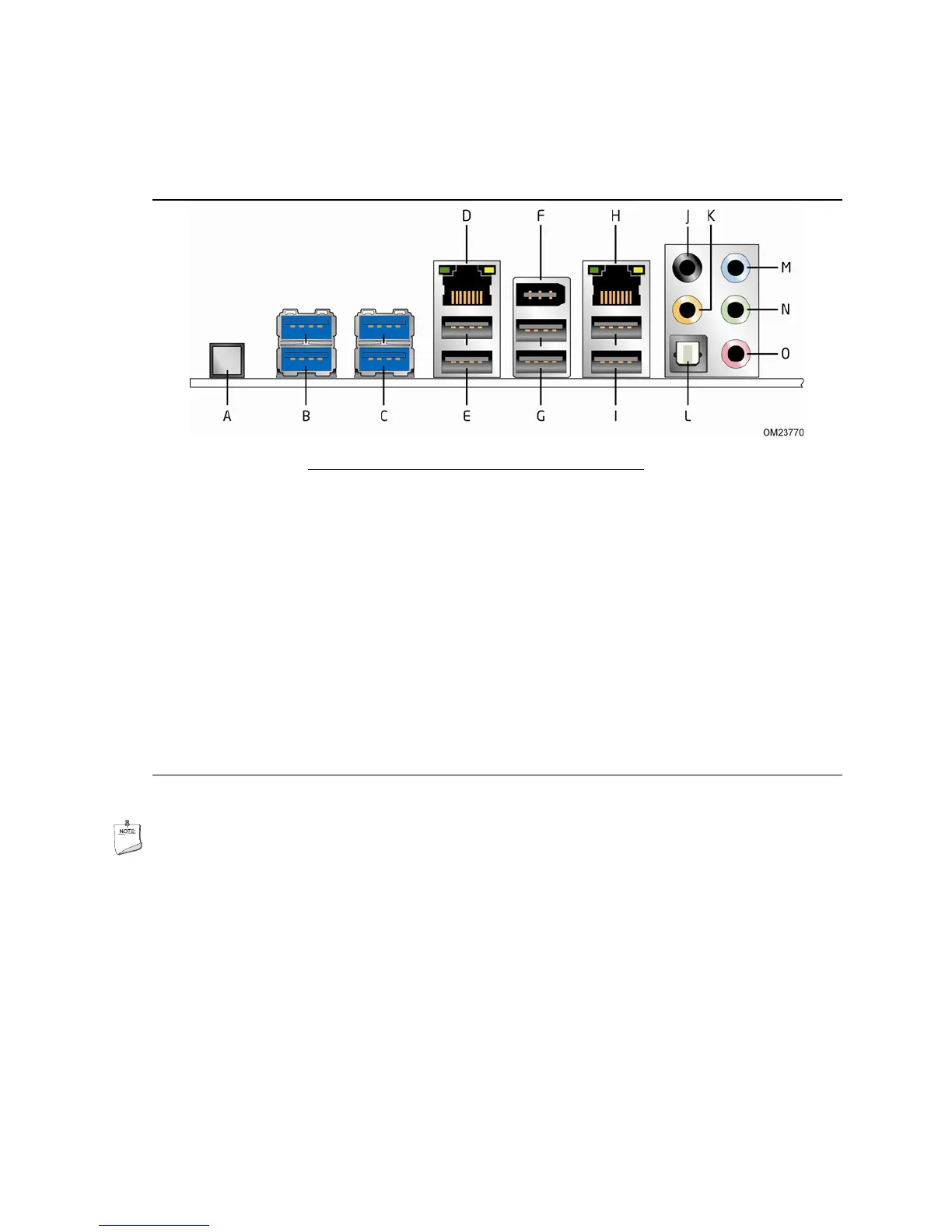

Figure 11. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
