Technical Reference
57
2.2.2.5
Front Panel USB 2.0 Headers

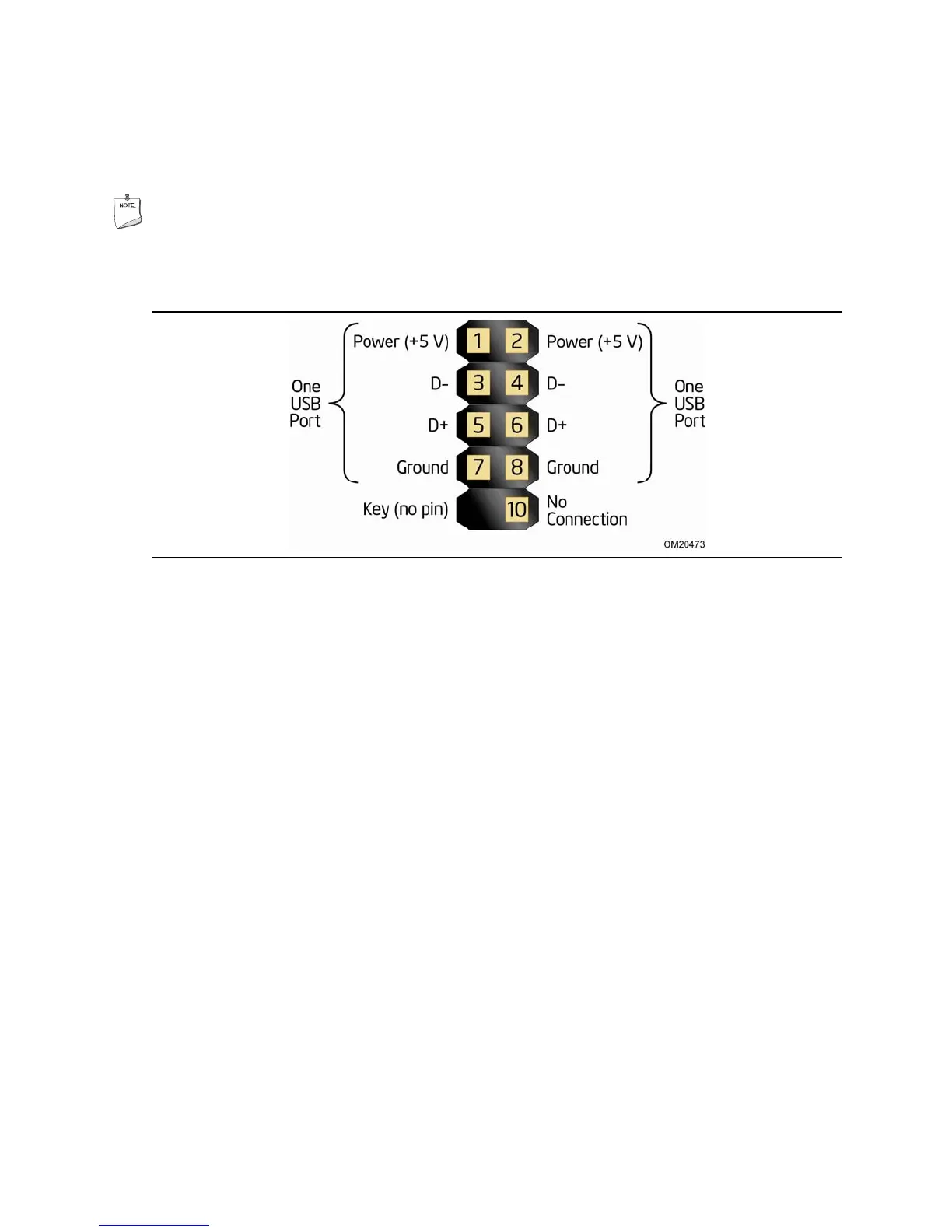

Figure 15 is a connection diagram for
the front
panel USB 2.0 headers.
NOTE
•
The +5 V DC power on the headers is
fused.
•
Use only a front panel
USB 2.0 connect
or tha
t conforms to the USB 2.0
specification for hi
gh-speed USB devices.
Figure 15. Connection Diagram for Front Panel USB 2.0 Headers
