Installing and Replacing Desktop Board Components
27
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should do this procedure. Disconnect the computer
from its power source before performing the procedures described here. Failure to
disconnect the power before you open the computer can result in personal injury or
equipment damage.
Refer to your chassis manual for instructions on installing and removing the Desktop
Board.
Figure 6 shows the location of the mounti
ng screw holes for Intel Desktop Board
D2500HN.

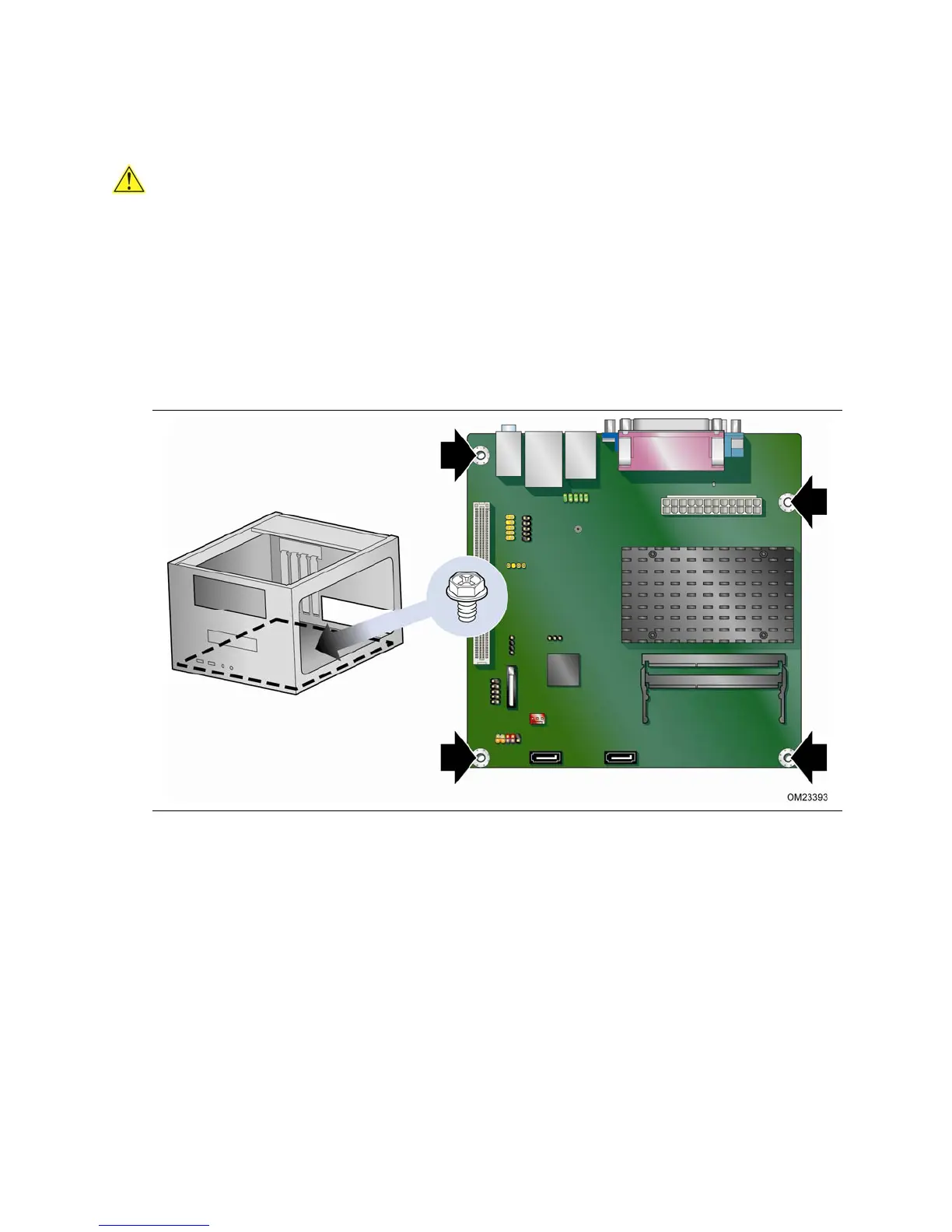

Figure 6. Intel Desktop Board D2500HN Mounting Screw Holes
