7. Connect the processor fan cable to the processor fan connector (see Figure 16).
OM11156
PGA370
J1B1
J1B1

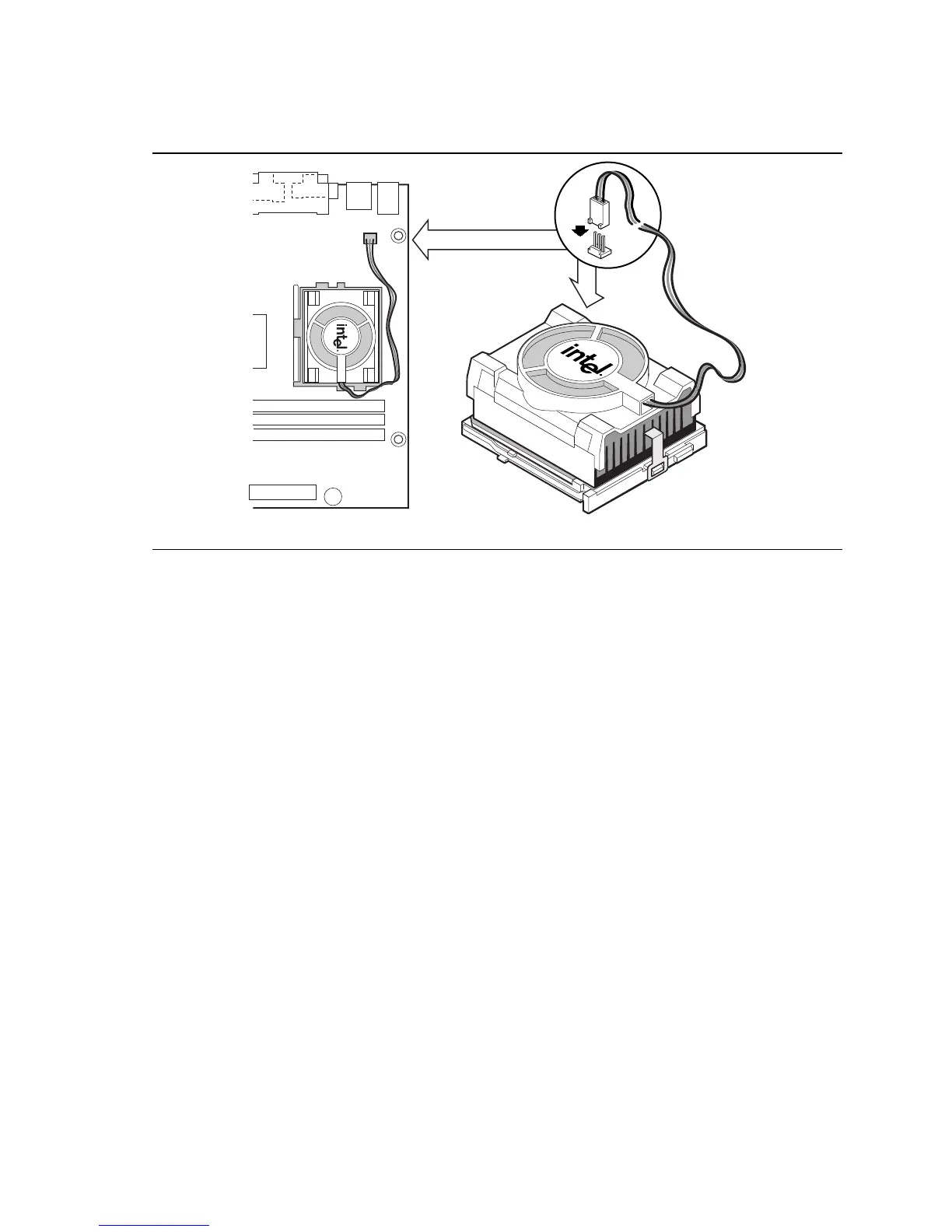

Figure 16. Connecting the Processor Fan Cable to the Processor Fan Connector
Removing the Processor
To remove the processor, follow these instructions:
1. Observe the precautions in “Before You Begin” (see page 25).
2. Disconnect the processor fan cable.
3. Detach the fan heatsink clips.
4. Remove the heatsink.
5. Raise the socket handle completely.
6. Remove the processor.
