Add-In Board and Peripheral Interface Connectors for the D815EFV and
D815EPFV Boards

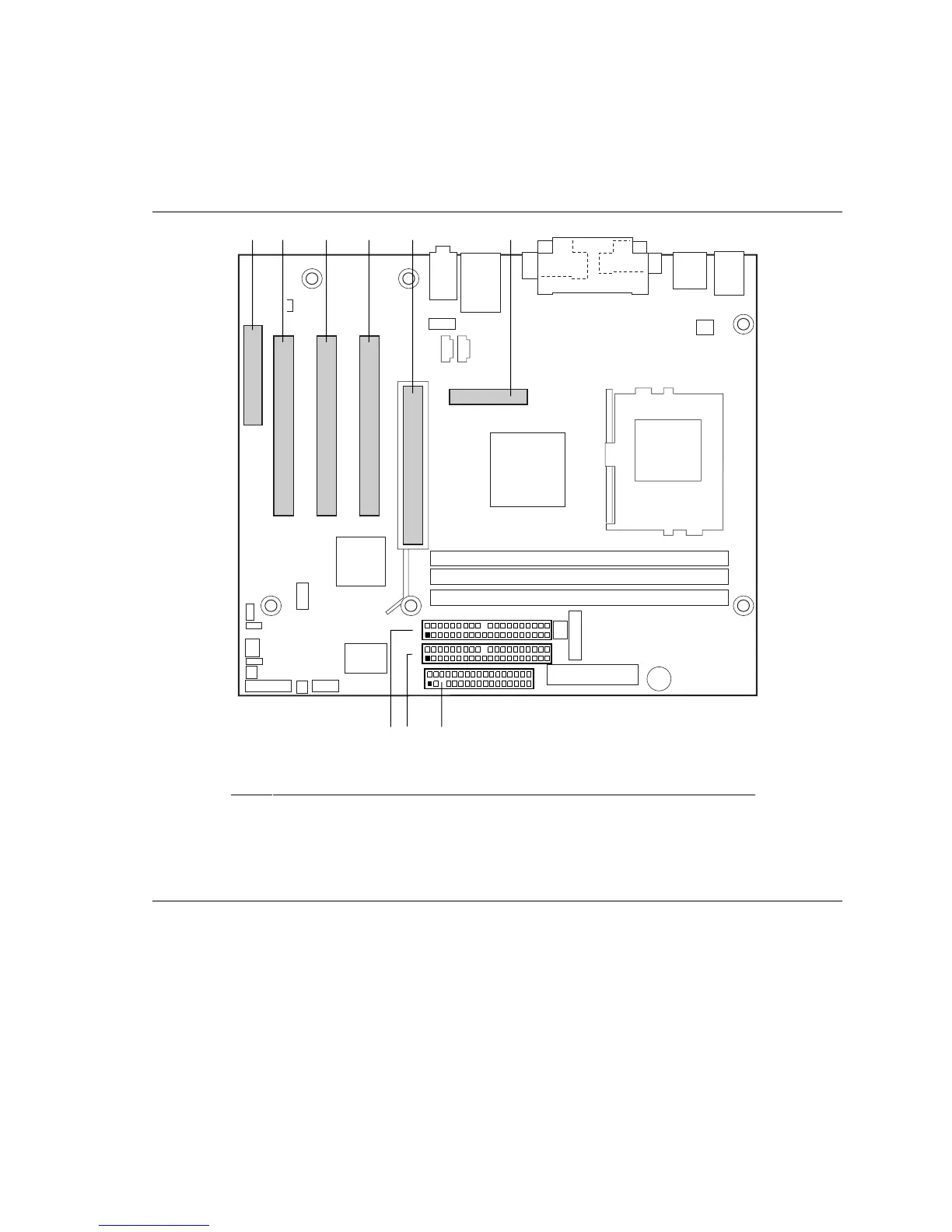

Figure 32 shows the add-in board and peripheral interface connectors.
OM11640
IH
1
2
33
34
1
2
40
39
1
2
40
39
G
CBA D E F
Item Description Item Description
A CNR (optional) F DVO (D815EFV only)
B PCI slot 3 G Diskette drive
C PCI slot 2 H Primary IDE
D PCI slot 1 I Secondary IDE
E AGP
Figure 32. Add-in Board and Peripheral Interface Connectors for the D815EFV
and D815EPFV Boards
