Installing and Removing a Processor
Instructions on how to install the processor to the desktop board are given below.
Installing a Processor
CAUTION
Before installing or removing the processor, make sure that AC power has been removed by
unplugging the power cord from the computer; the standby power LED should not be lit
(see Figure 2 on page 19). Failure to do so could damage the processor and the desktop board.
To install a processor, follow these instructions:
1. Observe the precautions in ”Before You Begin” on page 21.
2. Locate the processor socket and raise the socket lever completely.
3. Install the processor so that the corner with the gold triangle marking (A) is aligned with the
corner where the lever is attached to the socket (see Figure 5).
4. Lower the lever to its original position.
OM15228
mPGA478B
mPGA478B
A
mPGA478B

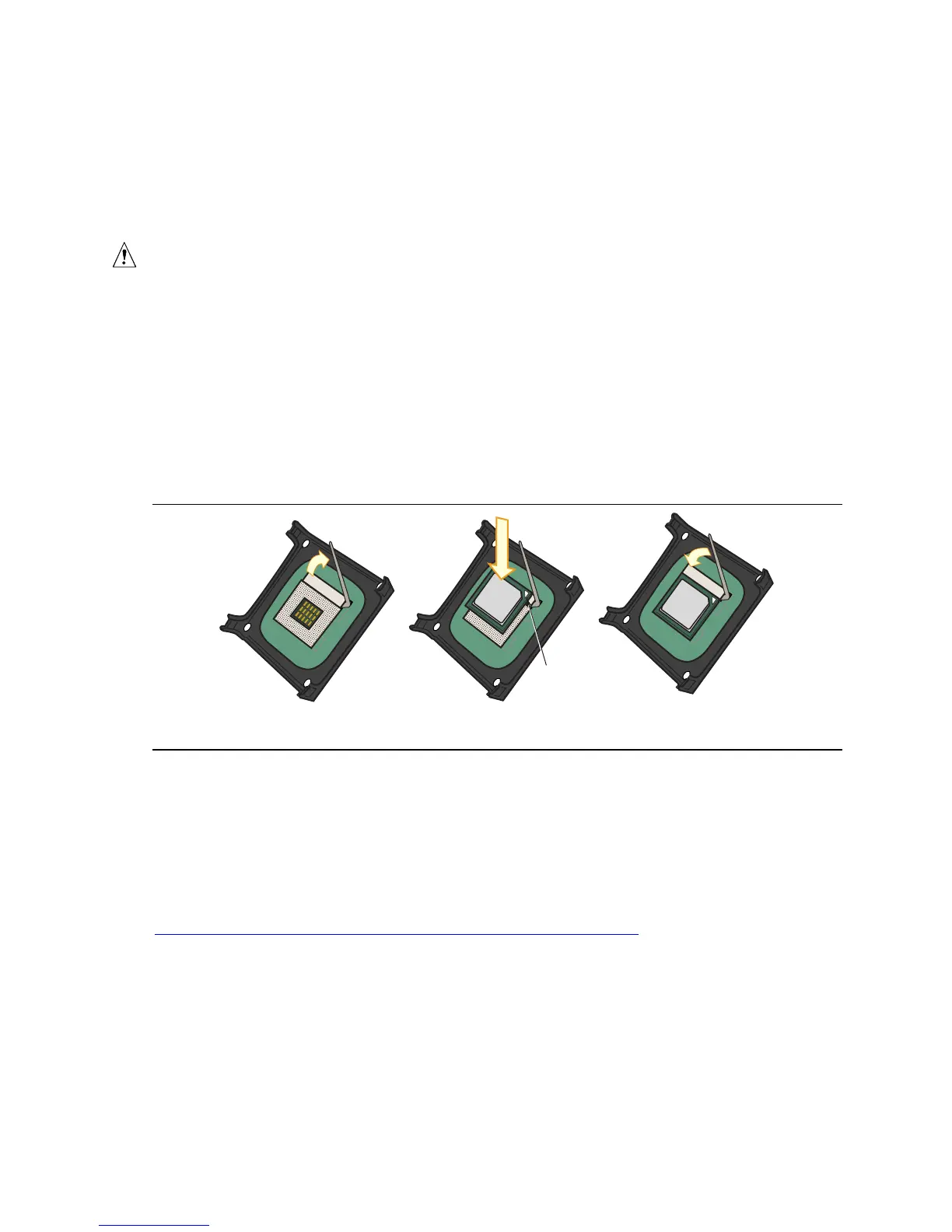

Figure 5. Installing a Processor
Installing the Processor Fan Heatsink
The desktop board has an integrated processor fan heatsink retention mechanism (RM). For
instructions on how to install the processor fan heatsink to the integrated processor fan heatsink
RM, refer to the Intel World Wide Web site at:
http://support.intel.com/support/processors/pentium4/intnotes478.htm
